Name: Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6...

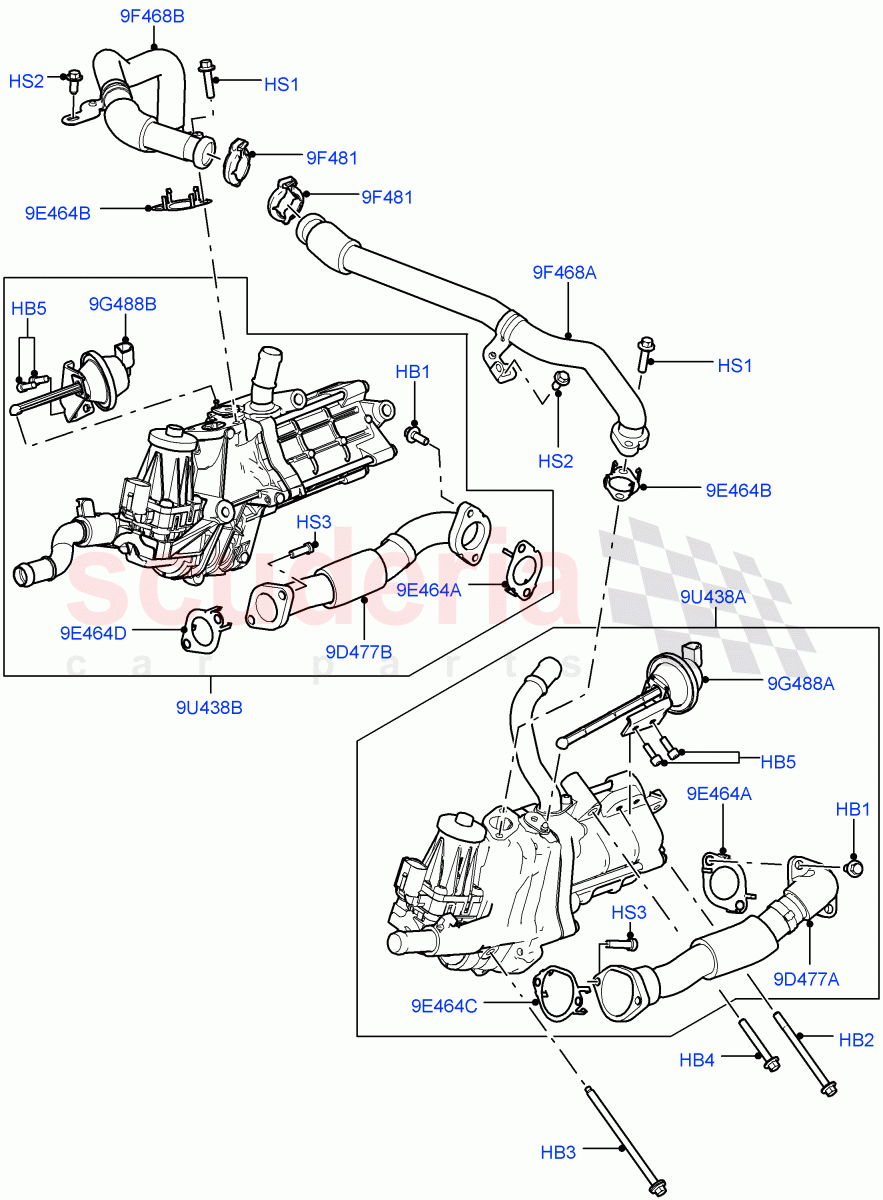

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009529	BOLT	$3.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	$2.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR012201	BOLT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020270	BOLT	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005786	SCREW	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	1311338	CLAMP - TUBE	$3.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020547	TUBE - EGR VALVE TO EXHAUST MANIFLD	$93.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020548	TUBE - EGR VALVE TO EXHAUST MANIFLD	$112.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075627	GASKET - EXHAUST MANIFOLD	$20.19	To Order
	LR075627	GASKET - EXHAUST MANIFOLD	$20.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038333	GASKET - EGR OUTLET	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020545	GASKET - EGR INLET	$12.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020546	GASKET - EGR INLET	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013587	TUBE - EXHAUST GAS RECIRCULATION	$90.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013589	TUBE - EXHAUST GAS RECIRCULATION	$108.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020551	ACTUATOR - EGR COOLER BYPASS	$66.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020552	ACTUATOR - EGR COOLER BYPASS	$66.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018752	EGR UNIT	$969.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018753	EGR UNIT	$969.44	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1316028	BOLT	1316028 BOLT Exhaust Manifold, M6 X 16MM	$1.24	4
HB2	LR009529	BOLT IN STOCK	LR009529 BOLT M6 x 80MM IN STOCK	$3.85	2
HB3	1225745	BOLT AND WASHER - HEX.HEAD IN STOCK	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM IN STOCK	$2.90	2
HB4	LR012201	BOLT	LR012201 BOLT Hexagonal Head, M6 x 45MM	$1.11	2
HB5	LR020270	BOLT	LR020270 BOLT M5 X 10MM	$0.59	4
HS1	4378449	SCREW IN STOCK	4378449 SCREW EGR Valve, M6 x 25MM IN STOCK	$2.11	4
HS2	BYP500170	SCREW IN STOCK	BYP500170 SCREW Hexagonal Head, M6 x 14MM IN STOCK	$1.19	2
HS3	LR005786	SCREW	LR005786 SCREW M6 x 25MM	$1.12	4
9D477A	LR020547	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR020547 TUBE - EGR VALVE TO EXHAUST MANIFLD LH	$93.45	1
9D477B	LR020548	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR020548 TUBE - EGR VALVE TO EXHAUST MANIFLD RH	$112.43	1
9E464A	LR075627	GASKET - EXHAUST MANIFOLD	LR075627 GASKET - EXHAUST MANIFOLD Exhaust Manifold / To: FA999999	$20.19	2
9E464A	LR075627	GASKET - EXHAUST MANIFOLD	LR075627 GASKET - EXHAUST MANIFOLD Exhaust Manifold / From: GA000001	$20.19	2
9E464B	LR038333	GASKET - EGR OUTLET	LR038333 GASKET - EGR OUTLET EGR Outlet	$14.68	2
9E464C	LR020545	GASKET - EGR INLET	LR020545 GASKET - EGR INLET LH, EGR Inlet	$12.98	1
9E464D	LR020546	GASKET - EGR INLET	LR020546 GASKET - EGR INLET RH, EGR Inlet	$10.79	1
9F468A	LR013587	TUBE - EXHAUST GAS RECIRCULATION	LR013587 TUBE - EXHAUST GAS RECIRCULATION LH	$90.18	1
9F468B	LR013589	TUBE - EXHAUST GAS RECIRCULATION	LR013589 TUBE - EXHAUST GAS RECIRCULATION RH	$108.43	1
9F481	1311338	CLAMP - TUBE	1311338 CLAMP - TUBE EGR Tube	$3.67	2
9G488A	LR020551	ACTUATOR - EGR COOLER BYPASS	LR020551 ACTUATOR - EGR COOLER BYPASS LH, Vacuum EGR Cooler Bypass Actuator	$66.75	1
9G488B	LR020552	ACTUATOR - EGR COOLER BYPASS	LR020552 ACTUATOR - EGR COOLER BYPASS RH, Vacuum EGR Cooler Bypass Actuator	$66.75	1
9U438A	LR018752	EGR UNIT	LR018752 EGR UNIT LH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold	$969.44	1
9U438B	LR018753	EGR UNIT	LR018753 EGR UNIT RH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold	$969.44	1
