Windscreen Wiper (Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Windscreen Wiper (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500910 BOLT $0.50 To Order
Photo Part No Description Price (each) Stock
RYH500390 NUT AND WASHER - HEX. $1.63 To Order
Photo Part No Description Price (each) Stock
LR024224 MOTOR AND LINKAGE - WIPERS $491.55 To Order
LR078301 MOTOR AND LINKAGE - WIPERS $484.50 To Order
LR075361 MOTOR AND LINKAGE - WIPERS $484.50 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025116 ARM - WIPER $72.60 To Order
LR027683 ARM - WIPER $86.59 To Order
LR025118 ARM - WIPER $92.86 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025113 BLADE - WIPER $41.21 To Order
LR154897 BLADES - WIPER $80.74 To Order
LR025117 BLADE - WIPER $37.87 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR000707 GROMMET $12.25 To Order
Photo Part No Description Price (each) Stock
LR000085 CAP $2.11 To Order
View All

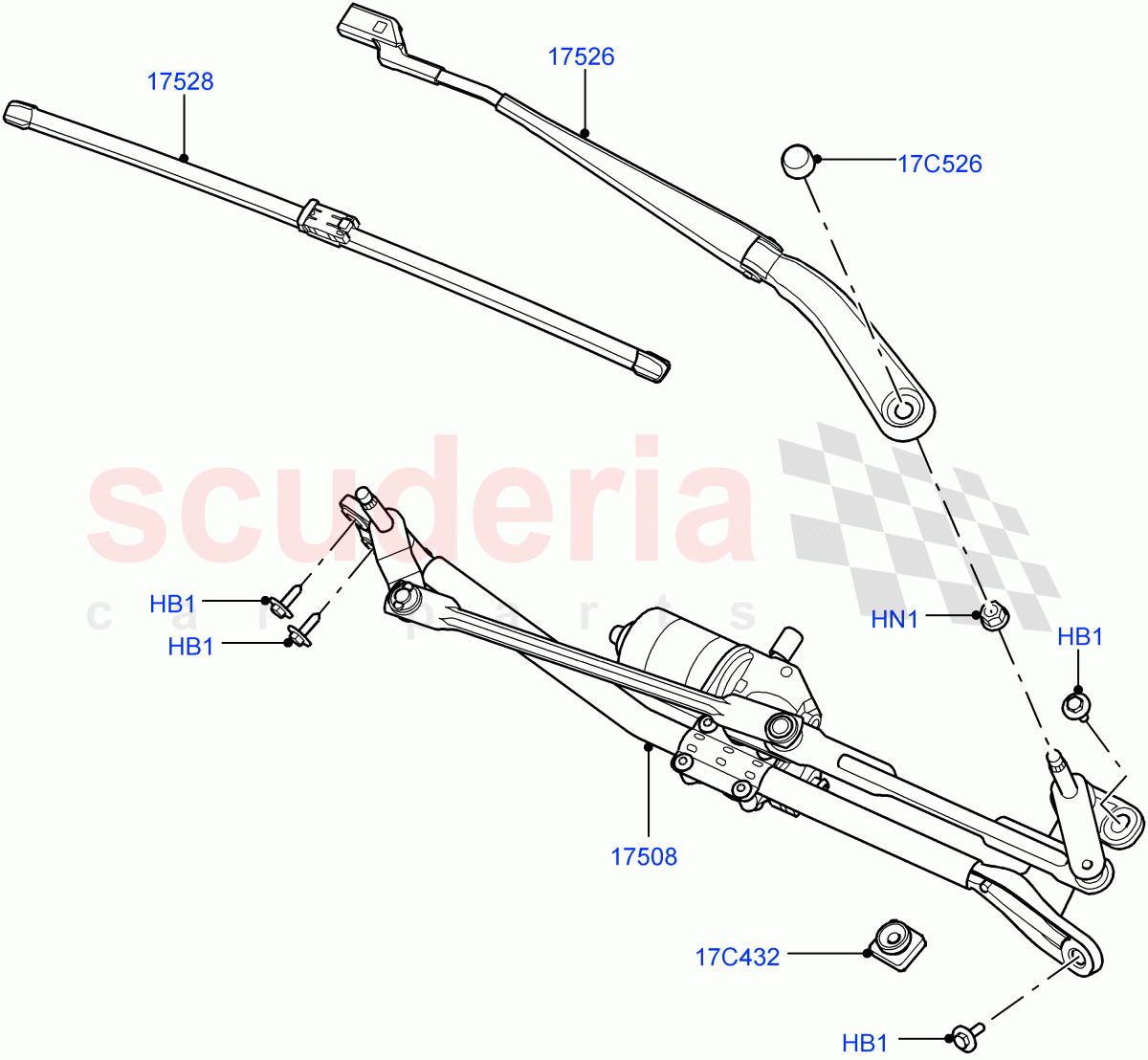

Windscreen Wiper (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500910
BOLT
Bolt And Washer, Hexagonal Head, M6 x 35MM 		$0.50 4
HN1 RYH500390
NUT AND WASHER - HEX.
M10, Nut And Washer 		$1.63 2
17C432 LR000707
GROMMET 		$12.25 1
17C526 LR000085
CAP 		$2.11 2
17508 LR024224
MOTOR AND LINKAGE - WIPERS
LHD / To: FH044787 		$491.55 1
17508 LR078301
MOTOR AND LINKAGE - WIPERS
RHD / To: FH044787 		$484.50 1
17508 LR075361
MOTOR AND LINKAGE - WIPERS
LHD / From: FH044788 / To: FH044940 		$484.50 1
17508 LR075362
MOTOR AND LINKAGE - WIPERS
RHD / From: FH044788 / To: FH062784 		$460.16 1
17508 LR078300
MOTOR AND LINKAGE - WIPERS
LHD / From: FH044941 		$484.50 1
17508 LR078301
MOTOR AND LINKAGE - WIPERS
RHD / From: FH062785 		$484.50 1
17526 LR025116
ARM - WIPER
LHD / LH / To: GH124182 		$72.60 1
17526 LR027683
ARM - WIPER
(-)"CDN/MEX/USA", LHD / RH 		$86.59 1
17526 LR025118
ARM - WIPER
(+)"CDN/MEX/USA", LHD / RH 		$92.86 1
17526 LR025112
ARM - WIPER
RHD / RH / To: GH120632 		$86.67 1
17526 LR025114
ARM - WIPER
RHD / LH 		$92.86 1
17526 LR086383
ARM - WIPER
RHD / RH / From: GH120633 		$86.67 1
17526 LR086384
ARM - WIPER
LHD / LH / From: GH124183 		$72.60 1
17528 LR025113
BLADE - WIPER
RHD / RH / To: FH959537 		$41.21 1
17528 LR154897
BLADES - WIPER
RHD / LH / To: FH959537 		$80.74 1
17528 LR025117
BLADE - WIPER
LHD / LH / To: FH958033 		$37.87 1
17528 LR025119
BLADE - WIPER
(+)"CDN/MEX/USA", LHD / RH / To: FH961213 		$37.87 1
17528 LR027672
BLADE - WIPER
(-)"CDN/MEX/USA", LHD / RH / To: FH958033 		$37.87 1
17528 LR066514
BLADE - WIPER
RHD / RH / From: FH959538 / To: GH078560 		$41.21 1
17528 LR066885
BLADE - WIPER
RHD / LH / From: FH959538 / To: GH078560 		$41.21 1
17528 LR066541
BLADE - WIPER
LHD / LH / From: FH958034 / To: FH999999 		$41.78 1
17528 LR066874
BLADE - WIPER
(+)"CDN/MEX/USA", LHD / RH / From: FH961214 / To: FH999999 		$39.21 1
17528 LR066527
BLADE - WIPER
(-)"CDN/MEX/USA", LHD / RH / From: FH958034 / To: FH999999 		$37.87 1
17528 LR078302
BLADE - WIPER
RHD / RH / From: GH078561 / To: HH999999 		$27.00 1
17528 LR078303
BLADE - WIPER
RHD / LH / From: GH078561 / To: HH999999 		$26.70 1
17528 LR154900
BLADES - WIPER
LHD / LH / From: GH000001 / To: HH999999 		$80.74 1
17528 LR078305
BLADE - WIPER
(+)"CDN/MEX/USA", LHD / RH / From: GH000001 / To: HH999999 		$41.78 1
17528 LR154900
BLADES - WIPER
(-)"CDN/MEX/USA", LHD / RH / From: GH000001 / To: HH999999 		$80.74 1
17528 LR154897
BLADES - WIPER
RHD / 2 Piece Kit, RH And LH / From: JH000001 		$80.74 1
17528 LR154898
BLADES - WIPER
(+)"CDN/MEX/USA", LHD / 2 Piece Kit, RH And LH / From: JH000001 		$80.74 1
17528 LR154900
BLADES - WIPER
(-)"CDN/MEX/USA", LHD / 2 Piece Kit, RH And LH / From: JH000001 		$80.74 1
