Dash Panel And Front Fenders (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Dash Panel And Front Fenders (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR027626 BOLT $2.27 To Order
Photo Part No Description Price (each) Stock
LR027624 BOLT $3.01 To Order
Photo Part No Description Price (each) Stock
AYG500030 BOLT $0.55 To Order
Photo Part No Description Price (each) Stock
LR038554 CLIP - TRIM $1.54 To Order
Photo Part No Description Price (each) Stock
LR028265 NUT $5.63 To Order
Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.19 To Order
Photo Part No Description Price (each) Stock
LR068826 NUT $0.65 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.03 To Order
LR083229 SCREW $4.31 IN STOCK
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR066922 FENDER - FRONT $578.94 To Order
LR066935 FENDER - FRONT $659.71 To Order
Photo Part No Description Price (each) Stock
LR038580 MOULDING - DOOR OUTSIDE $215.85 To Order
LR038581 MOULDING - DOOR OUTSIDE $214.27 To Order
LR078364 MOULDING - DOOR OUTSIDE $142.39 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027041 INSULATOR - FENDER $17.10 To Order
Photo Part No Description Price (each) Stock
LR078362 GRILLE - FENDER - FRONT $162.80 To Order
LR027315 GRILLE - FENDER - FRONT $205.06 To Order
LR027316 GRILLE - FENDER - FRONT $360.18 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027959 PLATE - BLANKING $3.03 To Order
LR027960 PLATE - BLANKING $3.03 To Order
Photo Part No Description Price (each) Stock
LR039125 BRACKET - FENDER MOUNTING $20.45 To Order
LR039126 BRACKET - FENDER MOUNTING $20.45 To Order
Photo Part No Description Price (each) Stock
ASU780200 BRACKET - FENDER MOUNTING $6.40 IN STOCK
View All

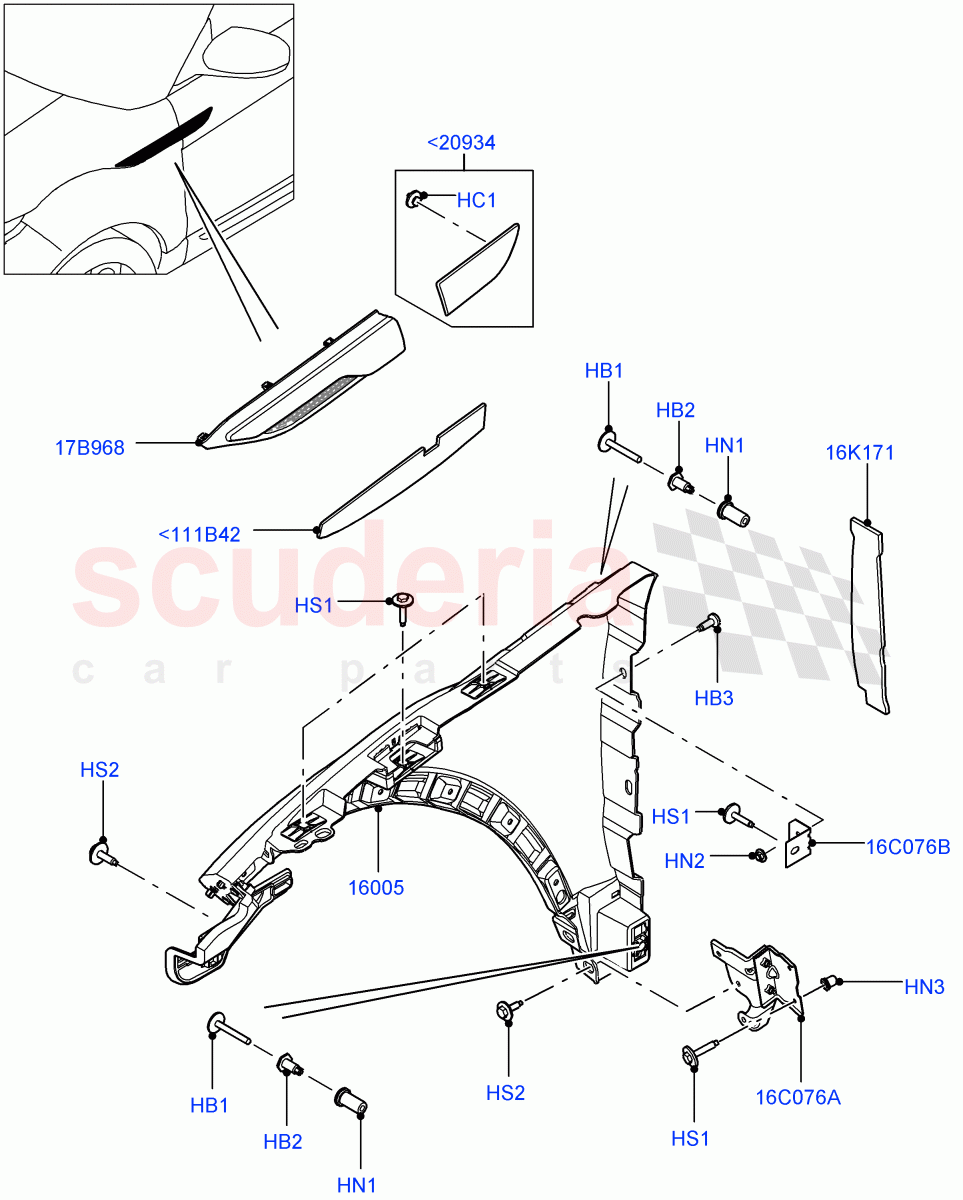

Dash Panel And Front Fenders (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<111B42 LR027959
PLATE - BLANKING
RH / From: GT000001 		$3.03 1
<111B42 LR027960
PLATE - BLANKING
LH / From: GT000001 		$3.03 1
<20934 LR038580
MOULDING - DOOR OUTSIDE
Front Fender Gill-Brunel / RH / From: GT000001 		$215.85 1
<20934 LR038581
MOULDING - DOOR OUTSIDE
Front Fender Gill-Atlas / RH / From: GT000001 		$214.27 1
<20934 LR078364
MOULDING - DOOR OUTSIDE
Front Fender Gill-Black / RH / From: GT000001 		$142.39 1
<20934 LR038584
MOULDING - DOOR OUTSIDE
Front Fender Gill-Brunel / LH / From: GT000001 		$215.85 1
<20934 LR038585
MOULDING - DOOR OUTSIDE
Front Fender Gill-Atlas / LH / From: GT000001 		$214.27 1
<20934 LR078365
MOULDING - DOOR OUTSIDE
Front Fender Gill-Black / LH / From: GT000001 		$142.39 1
HB1 LR027626
BOLT
M6 X 47.5 / From: GT000001 		$2.27 2
HB2 LR027624
BOLT
M10 / From: GT000001 		$3.01 2
HB3 AYG500030
BOLT
M6 x 15 / From: GT000001 		$0.55 2
HC1 LR038554
CLIP - TRIM
Trim Clip 8 X 0.8 - 1.2 / From: GT000001 		$1.54 3
HN1 LR028265
NUT
M10, Rivet Nut / From: GT000001 		$5.63 2
HN2 RYH500540
NUT - SPECIAL
M6 / From: GT000001 		$1.19 2
HN3 LR068826
NUT
M6 x 15MM, Rivet Nut / From: GT000001
IN STOCK 		$0.65 2
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: GT000001 		$4.03 7
HS1 LR083229
SCREW
M6 x 18MM / From: GT000001
IN STOCK 		$4.31 2
HS2 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: GT000001
IN STOCK 		$1.32 6
16C076A LR039125
BRACKET - FENDER MOUNTING
RH / From: GT000001 		$20.45 1
16C076A LR039126
BRACKET - FENDER MOUNTING
LH / From: GT000001 		$20.45 1
16C076B ASU780200
BRACKET - FENDER MOUNTING
From: GT000001
IN STOCK 		$6.40 4
16K171 LR027041
INSULATOR - FENDER
Front Fender, RH/LH / From: GT000001 		$17.10 2
17B968 LR078362
GRILLE - FENDER - FRONT
Front Fender Gill-Black / RH / From: GT000001 		$162.80 1
17B968 LR027315
GRILLE - FENDER - FRONT
Front Fender Gill-Dark Atlas / RH / From: GT000001 		$205.06 1
17B968 LR027316
GRILLE - FENDER - FRONT
Front Fender Gill-Brunel / RH / From: GT000001 		$360.18 1
17B968 LR027317
GRILLE - FENDER - FRONT
Front Fender Gill-Atlas, Less Sales Badge / RH / From: GT000001 		$332.62 1
17B968 LR078363
GRILLE - FENDER - FRONT
Front Fender Gill-Black / LH / From: GT000001 		$162.80 1
17B968 LR027319
GRILLE - FENDER - FRONT
Front Fender Gill-Dark Atlas / LH / From: GT000001 		$155.42 1
17B968 LR027320
GRILLE - FENDER - FRONT
Front Fender Gill-Brunel / LH / From: GT000001 		$360.17 1
17B968 LR027321
GRILLE - FENDER - FRONT
Front Fender Gill-Atlas, Less Sales Badge / LH / From: GT000001 		$332.62 1
16005 LR066922
FENDER - FRONT
RH / From: GT000001 		$578.94 1
16005 LR066935
FENDER - FRONT
LH / From: GT000001 		$659.71 1
