Exterior Rear View Mirror (5 Door, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Exterior Rear View Mirror (5 Door, Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025172 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR011865 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR048351 LAMP - EXTERIOR MIRROR Enquire To Order
LR048352 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
LR066882 MIRROR - REAR VIEW - OUTER Enquire To Order
LR066887 MIRROR - REAR VIEW - OUTER Enquire To Order
LR068145 MIRROR - REAR VIEW - OUTER Enquire To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048349 LAMP - EXTERIOR MIRROR Enquire To Order
LR048350 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
LR015050 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048353 COVER - MIRROR HOUSING Enquire To Order
LR048354 COVER - MIRROR HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR048359 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR048360 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR048365 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061490 HOUSING - WADE ASSIST SENSOR Enquire To Order
LR061491 HOUSING - WADE ASSIST SENSOR Enquire To Order
View All

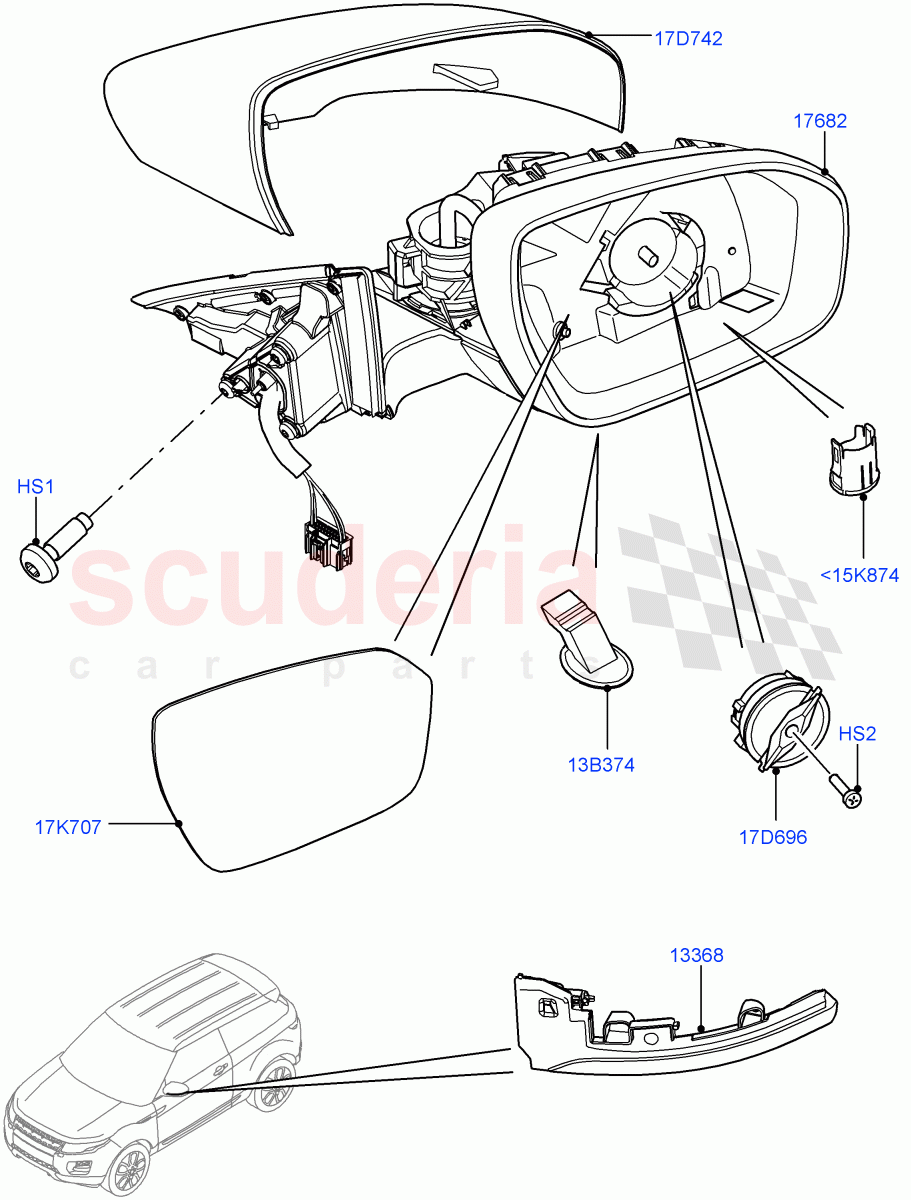

Exterior Rear View Mirror (5 Door, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<15K874 LR061490
HOUSING - WADE ASSIST SENSOR
RH / From: GG134738 		- 1 Enquire
<15K874 LR061491
HOUSING - WADE ASSIST SENSOR
LH / From: GG134738 		- 1 Enquire
HS1 LR025172
SCREW
M6 X 16MM / From: EG000001 		- 3 Enquire
HS2 LR011865
SCREW
M3 X 25MM / From: EG000001 		- 1 Enquire
13B374 LR048349
LAMP - EXTERIOR MIRROR
Approach Lights / RH / From: EG000001 		- 1 Enquire
13B374 LR048350
LAMP - EXTERIOR MIRROR
Approach Lights / LH / From: EG000001 		- 1 Enquire
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / RH, 8 Pin Connector, With Memory / From: EG000001 		- 1 Enquire
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Fold Back Mirror / RH, 3 Pin Connector, Less Memory / From: EG000001 		- 1 Enquire
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Fold Back Mirror / LH, 3 Pin Connector, Less Memory / From: EG000001 		- 1 Enquire
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp / LH, 8 Pin Connector, With Memory / From: EG000001 		- 1 Enquire
17D742 LR048353
COVER - MIRROR HOUSING
RH, Primed / From: EG000001 		- 1 Enquire
17D742 LR048354
COVER - MIRROR HOUSING
LH, Primed / From: EG000001 		- 1 Enquire
17K707 LR048359
GLASS - REAR VIEW OUTER MIRROR
Less Blind Spot Information System / RH, Convex Glass / From: EG000001 		- 1 Enquire
17K707 LR048360
GLASS - REAR VIEW OUTER MIRROR
Less Blind Spot Information System / LH, Convex Glass / From: EG000001 		- 1 Enquire
17K707 LR048365
GLASS - REAR VIEW OUTER MIRROR
Reverse Traffic Detection/CTA/LCMA / RH / From: EG000001 / To: HG161787 		- 1 Enquire
17K707 LR048366
GLASS - REAR VIEW OUTER MIRROR
Reverse Traffic Detection/CTA/LCMA / LH / From: EG000001 / To: HG161787 		- 1 Enquire
17K707 LR093156
GLASS - REAR VIEW OUTER MIRROR
Reverse Traffic Detection/CTA/LCMA / RH, Convex Glass / From: HG161788 		- 1 Enquire
17K707 LR093180
GLASS - REAR VIEW OUTER MIRROR
Lane Change Merge Aid / LH, Convex Glass / From: HG161788 		- 1 Enquire
13368 LR048351
LAMP - EXTERIOR MIRROR
RH / From: EG000001 		- 1 Enquire
13368 LR048352
LAMP - EXTERIOR MIRROR
LH / From: EG000001 		- 1 Enquire
17682 LR066882
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Proximity Mirrors, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Reverse Traffic Detection/CTA/LCMA / RH / From: EG000001 		- 1 Enquire
17682 LR066887
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Proximity Mirrors, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Reverse Traffic Detection/CTA/LCMA / LH / From: EG000001 		- 1 Enquire
17682 LR068145
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / RH / From: EG000001 		- 1 Enquire
17682 LR074204
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH / From: EG000001 		- 1 Enquire
17682 LR066316
MIRROR - REAR VIEW - OUTER
Approach Lights, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, Surround Camera System / LH / From: EG000001 		- 1 Enquire
17682 LR066884
MIRROR - REAR VIEW - OUTER
Approach Lights, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, Surround Camera System / RH / From: EG000001 		- 1 Enquire
17682 LR074139
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Lane Change Merge Aid, Surround Camera System, Water Wading Equipment - Standard / RH / From: GG134738 		- 1 Enquire
17682 LR074146
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Lane Change Merge Aid, Surround Camera System, Water Wading Equipment - Standard / LH / From: GG134738 		- 1 Enquire
17682 LR074143
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Water Wading Equipment, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / RH / From: GG134738 		- 1 Enquire
17682 LR074150
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Water Wading Equipment, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / LH / From: GG134738 		- 1 Enquire
17682 LR074141
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Water Wading Equipment, Surround Camera System / RH / From: GG134738 		- 1 Enquire
17682 LR074148
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Water Wading Equipment, Surround Camera System / LH / From: GG134738 		- 1 Enquire
17682 LR068141
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment, Rear View Camera-Fixed / RH / From: EG000001 / To: HG161787 		- 1 Enquire
17682 LR068142
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment, Rear View Camera-Fixed / LH / From: EG000001 / To: HG161787 		- 1 Enquire
17682 LR096657
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Less Camera System, Reverse Traffic Detection/CTA/LCMA / RH / From: HG161788 		- 1 Enquire
17682 LR096667
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Less Camera System, Reverse Traffic Detection/CTA/LCMA / LH / From: HG161788 		- 1 Enquire
17682 LR068141
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power/Heated/Fold/App Mirrors, LHD, Less Blind Spot Information System, Less Camera System / RH / From: HG161788 		- 1 Enquire
17682 LR068142
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power/Heated/Fold/App Mirrors, LHD, Less Blind Spot Information System, Less Camera System / LH / From: HG161788 		- 1 Enquire
17682 LR096661
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / RH / From: HG161788 		- 1 Enquire
17682 LR096663
MIRROR - REAR VIEW - OUTER
Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, LHD, Reverse Traffic Detection/CTA/LCMA, Surround Camera Sys+Water Wade Aid / RH / From: HG161788 		- 1 Enquire
17682 LR096670
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / LH / From: HG161788 		- 1 Enquire
17682 LR096672
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Reverse Traffic Detection/CTA/LCMA, Surround Camera Sys+Water Wade Aid / LH / From: HG161788 		- 1 Enquire
