Front Doors, Hinges & Weatherstrips (2 Door Convertible, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Front Doors, Hinges & Weatherstrips (2 Door Convertible, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025397 BOLT $1.45 To Order
Photo Part No Description Price (each) Stock
LR025399 BOLT $1.92 To Order
Photo Part No Description Price (each) Stock
LR032819 BOLT AND WASHER - TORX HEAD $1.19 To Order
Photo Part No Description Price (each) Stock
LR037063 BOLT $1.73 To Order
Photo Part No Description Price (each) Stock
LR000046 NUT - HEX. $0.50 To Order
Photo Part No Description Price (each) Stock
LR005590 PLUG $3.53 To Order
Photo Part No Description Price (each) Stock
LR079460 DOOR - FRONT - LESS HINGES $4,235.55 To Order
LR079459 DOOR - FRONT - LESS HINGES $4,235.55 To Order
Photo Part No Description Price (each) Stock
LR027612 CHECK - DOOR $28.34 To Order
Photo Part No Description Price (each) Stock
LR056351 HINGE - DOOR $71.92 To Order
LR056352 HINGE - DOOR $64.41 To Order
Photo Part No Description Price (each) Stock
LR056353 HINGE - DOOR $67.32 To Order
LR056354 HINGE - DOOR $71.92 To Order
Photo Part No Description Price (each) Stock
BFM500020 COVER - DOOR CHECK PROTECTION $10.01 To Order
View All

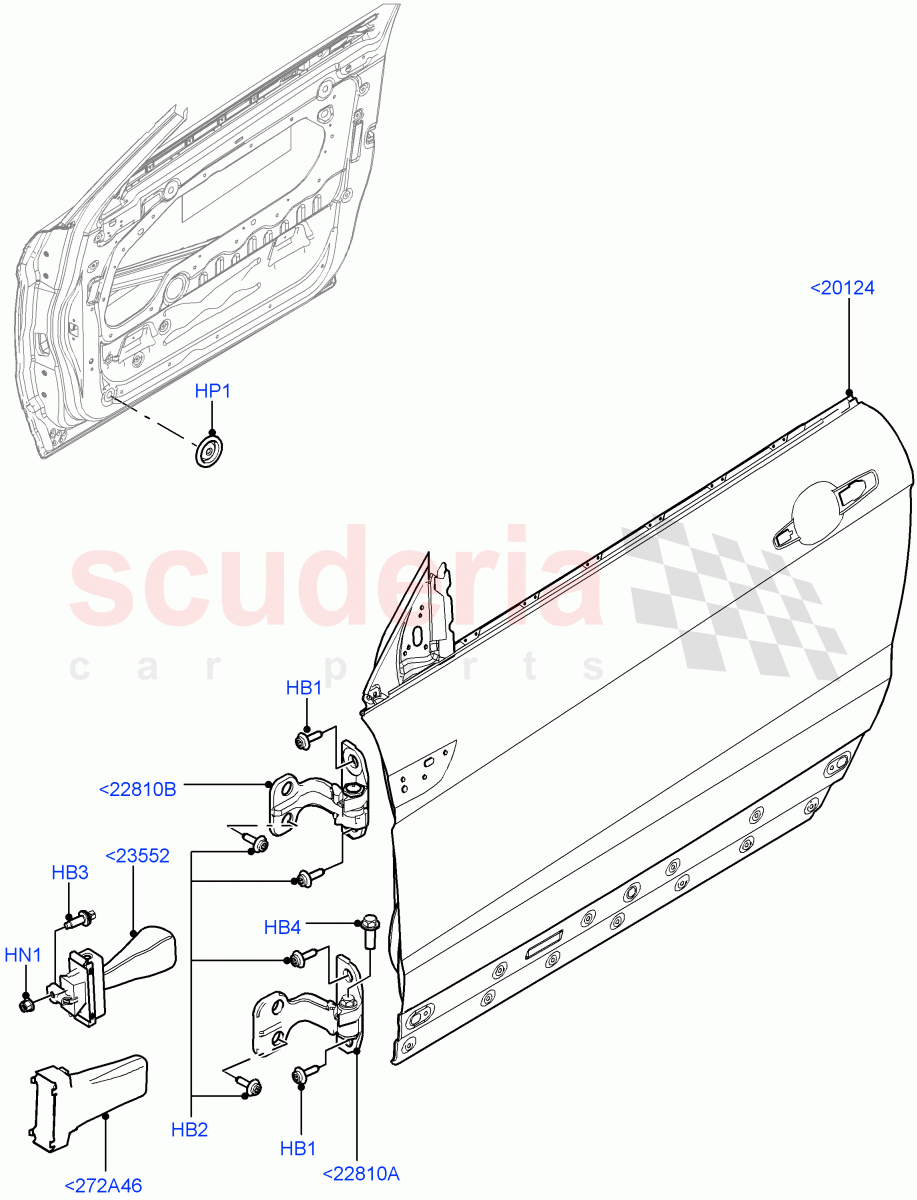

Front Doors, Hinges & Weatherstrips (2 Door Convertible, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<272A46 BFM500020
COVER - DOOR CHECK PROTECTION
With Weather Protection Seals 		$10.01 2
<20124 LR079460
DOOR - FRONT - LESS HINGES
LH 		$4,235.55 1
<20124 LR079459
DOOR - FRONT - LESS HINGES
RH 		$4,235.55 1
<22810A LR056351
HINGE - DOOR
RH, Lower 		$71.92 1
<22810A LR056352
HINGE - DOOR
LH, Lower 		$64.41 1
<22810B LR056353
HINGE - DOOR
RH, Upper 		$67.32 1
<22810B LR056354
HINGE - DOOR
LH, Upper 		$71.92 1
<23552 LR027612
CHECK - DOOR 		$28.34 2
HB1 LR025397
BOLT
Door Hinge, M8 X 25MM 		$1.45 1
HB2 LR025399
BOLT
Door Hinge, M8 X 25MM 		$1.92 10
HB3 LR032819
BOLT AND WASHER - TORX HEAD
M8 X 20MM 		$1.19 2
HB4 LR037063
BOLT
Door Hinge, M7 X 14.4 		$1.73 4
HN1 LR000046
NUT - HEX.
Hexagonal Head, M6 		$0.50 4
HP1 LR005590
PLUG
19 x 0.7MM, For Front Door 		$3.53 8
