Dash Panel And Front Fenders (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Dash Panel And Front Fenders (Halewood (UK))

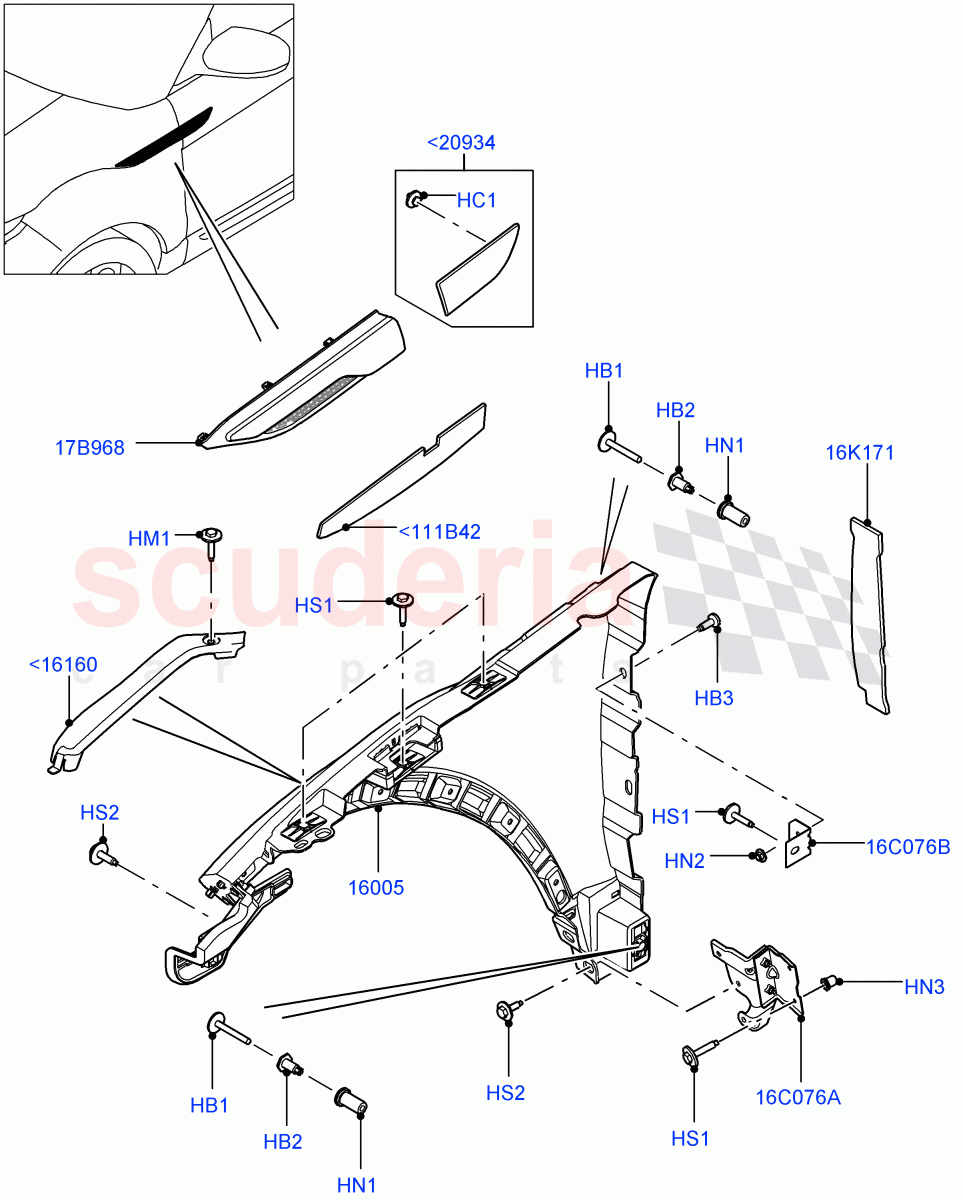

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR027626	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027624	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYG500030	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038554	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500100	PIN - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028265	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500540	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068826	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027589	FENDER - FRONT	Enquire	To Order
	LR027590	FENDER - FRONT	Enquire	To Order
	LR066922	FENDER - FRONT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR124821	MOULDING - FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027286	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR027287	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR027296	MOULDING - DOOR OUTSIDE	Enquire	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027041	INSULATOR - FENDER	Enquire	To Order
	LR100355	INSULATOR - FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027315	GRILLE - FENDER - FRONT	Enquire	To Order
	LR027316	GRILLE - FENDER - FRONT	Enquire	To Order
	LR027317	GRILLE - FENDER - FRONT	Enquire	To Order

...and 25 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027960	PLATE - BLANKING	Enquire	To Order
	LR027959	PLATE - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028290	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR028289	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR039125	BRACKET - FENDER MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ASU780200	BRACKET - FENDER MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<111B42	LR027960	PLATE - BLANKING	LR027960 PLATE - BLANKING LH	-	1	Enquire
<111B42	LR027959	PLATE - BLANKING	LR027959 PLATE - BLANKING RH	-	1	Enquire
<16160	LR124821	MOULDING - FENDER	LR124821 MOULDING - FENDER RH Side / From: KH000001	-	1	Enquire
<20934	LR027286	MOULDING - DOOR OUTSIDE	LR027286 MOULDING - DOOR OUTSIDE Front Fender Gill-Dark Atlas / RH / To: CH612232	-	1	Enquire
<20934	LR027287	MOULDING - DOOR OUTSIDE	LR027287 MOULDING - DOOR OUTSIDE Front Fender Gill-Brunel / RH / To: CH612232	-	1	Enquire
<20934	LR027296	MOULDING - DOOR OUTSIDE	LR027296 MOULDING - DOOR OUTSIDE Front Fender Gill-Atlas / RH / To: CH636759	-	1	Enquire
<20934	LR027298	MOULDING - DOOR OUTSIDE	LR027298 MOULDING - DOOR OUTSIDE Front Fender Gill-Dark Atlas / LH / To: CH612232	-	1	Enquire
<20934	LR027306	MOULDING - DOOR OUTSIDE	LR027306 MOULDING - DOOR OUTSIDE Front Fender Gill-Brunel / LH / To: CH612232	-	1	Enquire
<20934	LR027307	MOULDING - DOOR OUTSIDE	LR027307 MOULDING - DOOR OUTSIDE Front Fender Gill-Atlas / LH / To: CH636759	-	1	Enquire
<20934	LR032282	MOULDING - DOOR OUTSIDE	LR032282 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / RH / To: CH648389	-	1	Enquire
<20934	LR032283	MOULDING - DOOR OUTSIDE	LR032283 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / LH / To: CH648389	-	1	Enquire
<20934	LR038582	VENT - DOOR	LR038582 VENT - DOOR Front Fender Gill-Dark Atlas / RH / From: CH612233 / To: FH999999	-	1	Enquire
<20934	LR038580	MOULDING - DOOR OUTSIDE	LR038580 MOULDING - DOOR OUTSIDE Front Fender Gill-Brunel / RH / From: CH612233	-	1	Enquire
<20934	LR038581	MOULDING - DOOR OUTSIDE	LR038581 MOULDING - DOOR OUTSIDE Front Fender Gill-Atlas / RH / From: CH636760	-	1	Enquire
<20934	LR038583	MOULDING - DOOR OUTSIDE	LR038583 MOULDING - DOOR OUTSIDE Front Fender Gill-Dark Atlas / LH / From: CH612233 / To: FH999999	-	1	Enquire
<20934	LR038584	MOULDING - DOOR OUTSIDE	LR038584 MOULDING - DOOR OUTSIDE Front Fender Gill-Brunel / LH / From: CH612233	-	1	Enquire
<20934	LR038585	MOULDING - DOOR OUTSIDE	LR038585 MOULDING - DOOR OUTSIDE Front Fender Gill-Atlas / LH / From: CH636760	-	1	Enquire
<20934	LR031511	MOULDING - DOOR OUTSIDE	LR031511 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / RH / From: CH648390 / To: DH744627	-	1	Enquire
<20934	LR031512	MOULDING - DOOR OUTSIDE	LR031512 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / LH / From: CH648390 / To: DH744627	-	1	Enquire
<20934	LR046865	MOULDING - DOOR OUTSIDE	LR046865 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / RH / From: DH744628 / To: FH999999	-	1	Enquire
<20934	LR046866	MOULDING - DOOR OUTSIDE	LR046866 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / LH / From: DH744628 / To: FH999999	-	1	Enquire
<20934	LR078364	MOULDING - DOOR OUTSIDE	LR078364 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / RH / From: GH000001	-	1	Enquire
<20934	LR078365	MOULDING - DOOR OUTSIDE	LR078365 MOULDING - DOOR OUTSIDE Front Fender Gill-Black / LH / From: GH000001	-	1	Enquire
<20934	LR105321	MOULDING - DOOR OUTSIDE	LR105321 MOULDING - DOOR OUTSIDE Side Vents-Graphite / LH / From: JH000001	-	1	Enquire
<20934	LR105319	MOULDING - DOOR OUTSIDE	LR105319 MOULDING - DOOR OUTSIDE Side Vents-Graphite / RH / From: JH000001	-	1	Enquire
HB1	LR027626	BOLT	LR027626 BOLT M6 X 47.5	-	2	Enquire
HB2	LR027624	BOLT	LR027624 BOLT M10	-	2	Enquire
HB3	AYG500030	BOLT	AYG500030 BOLT M6 x 15	-	2	Enquire
HC1	LR038554	CLIP - TRIM	LR038554 CLIP - TRIM Trim Clip 8 X 0.8 - 1.2	-	3	Enquire
HM1	RZM500100	PIN - TRIM	RZM500100 PIN - TRIM 7.15 X 1.5 - 25 Plastic, Fender, Moulding / From: KH000001	-	2	Enquire
HN1	LR028265	NUT	LR028265 NUT M10, Rivet Nut	-	2	Enquire
HN2	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL M6	-	2	Enquire
HN3	LR068826	NUT	LR068826 NUT M6 x 15MM, Rivet Nut	-	2	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	-	7	Enquire
HS2	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex	-	6	Enquire
16C076A	LR028290	BRACKET - FENDER MOUNTING	LR028290 BRACKET - FENDER MOUNTING LH / To: CH666363	-	1	Enquire
16C076A	LR028289	BRACKET - FENDER MOUNTING	LR028289 BRACKET - FENDER MOUNTING RH / To: CH666363	-	1	Enquire
16C076A	LR039125	BRACKET - FENDER MOUNTING	LR039125 BRACKET - FENDER MOUNTING RH / From: CH666364	-	1	Enquire
16C076A	LR039126	BRACKET - FENDER MOUNTING	LR039126 BRACKET - FENDER MOUNTING LH / From: CH666364	-	1	Enquire
16C076B	ASU780200	BRACKET - FENDER MOUNTING	ASU780200 BRACKET - FENDER MOUNTING	-	4	Enquire
16K171	LR027041	INSULATOR - FENDER	LR027041 INSULATOR - FENDER Front Fender, RH/LH / To: HH999999	-	2	Enquire
16K171	LR100355	INSULATOR - FENDER	LR100355 INSULATOR - FENDER Front Fender, RH/LH / From: JH000001	-	2	Enquire
17B968	LR027315	GRILLE - FENDER - FRONT	LR027315 GRILLE - FENDER - FRONT Front Fender Gill-Dark Atlas / RH	-	1	Enquire
17B968	LR027316	GRILLE - FENDER - FRONT	LR027316 GRILLE - FENDER - FRONT Front Fender Gill-Brunel / RH	-	1	Enquire
17B968	LR027317	GRILLE - FENDER - FRONT	LR027317 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Less Sales Badge / RH / To: HH999999	-	1	Enquire
17B968	LR027319	GRILLE - FENDER - FRONT	LR027319 GRILLE - FENDER - FRONT Front Fender Gill-Dark Atlas / LH	-	1	Enquire
17B968	LR027320	GRILLE - FENDER - FRONT	LR027320 GRILLE - FENDER - FRONT Front Fender Gill-Brunel / LH	-	1	Enquire
17B968	LR027321	GRILLE - FENDER - FRONT	LR027321 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Less Sales Badge / LH / To: HH999999	-	1	Enquire
17B968	LR032303	GRILLE - FENDER - FRONT	LR032303 GRILLE - FENDER - FRONT Front Fender Gill-Black / RH / To: CH648389	-	1	Enquire
17B968	LR032304	GRILLE - FENDER - FRONT	LR032304 GRILLE - FENDER - FRONT Front Fender Gill-Black / LH / To: CH648389	-	1	Enquire
17B968	LR027322	GRILLE - FENDER - FRONT	LR027322 GRILLE - FENDER - FRONT Front Fender Gill-Black / LH / From: CH648390 / To: FH999999	-	1	Enquire
17B968	LR027318	GRILLE - FENDER - FRONT	LR027318 GRILLE - FENDER - FRONT Front Fender Gill-Black / RH / From: CH648390 / To: FH999999	-	1	Enquire
17B968	LR067701	GRILLE - FENDER - FRONT	LR067701 GRILLE - FENDER - FRONT Autobiography Pack, Front Fender Gill-Atlas / RH / From: FH000001 / To: HH999999	-	1	Enquire
17B968	LR067702	GRILLE - FENDER - FRONT	LR067702 GRILLE - FENDER - FRONT Autobiography Pack, Front Fender Gill-Atlas / LH / From: FH000001 / To: HH999999	-	1	Enquire
17B968	LR078363	GRILLE - FENDER - FRONT	LR078363 GRILLE - FENDER - FRONT Front Fender Gill-Black / LH / From: GH000001 / To: HH999999	-	1	Enquire
17B968	LR078362	GRILLE - FENDER - FRONT	LR078362 GRILLE - FENDER - FRONT Front Fender Gill-Black / RH / From: GH000001 / To: HH999999	-	1	Enquire
17B968	LR091482	GRILLE - FENDER - FRONT	LR091482 GRILLE - FENDER - FRONT Autobiography Sales Badge, Front Fender Gill-Black / RH / From: HH000001 / To: HH999999	-	1	Enquire
17B968	LR091483	GRILLE - FENDER - FRONT	LR091483 GRILLE - FENDER - FRONT Autobiography Sales Badge, Front Fender Gill-Black / LH / From: HH000001 / To: HH999999	-	1	Enquire
17B968	LR105325	GRILLE - FENDER - FRONT	LR105325 GRILLE - FENDER - FRONT Less Trunk Badge, Side Vents-Graphite / RH / From: JH000001	-	1	Enquire
17B968	LR105326	GRILLE - FENDER - FRONT	LR105326 GRILLE - FENDER - FRONT Less Trunk Badge, Side Vents-Graphite / LH / From: JH000001	-	1	Enquire
17B968	LR078362	GRILLE - FENDER - FRONT	LR078362 GRILLE - FENDER - FRONT Front Fender Gill-Black, Trunk Badge-SD4 / RH / From: JH000001	-	1	Enquire
17B968	LR078363	GRILLE - FENDER - FRONT	LR078363 GRILLE - FENDER - FRONT Front Fender Gill-Black, Trunk Badge-SD4 / LH / From: JH000001	-	1	Enquire
17B968	LR091482	GRILLE - FENDER - FRONT	LR091482 GRILLE - FENDER - FRONT Front Fender Gill-Black, Trunk Badge - Autobiography RD0 / RH / From: JH000001	-	1	Enquire
17B968	LR091483	GRILLE - FENDER - FRONT	LR091483 GRILLE - FENDER - FRONT Front Fender Gill-Black, Trunk Badge - Autobiography RD0 / LH / From: JH000001	-	1	Enquire
17B968	LR067701	GRILLE - FENDER - FRONT	LR067701 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Trunk Badge - Autobiography RD0 / RH / From: JH000001	-	1	Enquire
17B968	LR067702	GRILLE - FENDER - FRONT	LR067702 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Trunk Badge - Autobiography RD0 / LH / From: JH000001	-	1	Enquire
17B968	LR027317	GRILLE - FENDER - FRONT	LR027317 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Trunk Badge-SD4HSE / RH / From: JH000001	-	1	Enquire
17B968	LR027321	GRILLE - FENDER - FRONT	LR027321 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Trunk Badge-SD4HSE / LH / From: JH000001	-	1	Enquire
17B968	LR027317	GRILLE - FENDER - FRONT	LR027317 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Less Trunk Badge / RH / From: HH000001	-	1	Enquire
17B968	LR027321	GRILLE - FENDER - FRONT	LR027321 GRILLE - FENDER - FRONT Front Fender Gill-Atlas, Less Trunk Badge / LH / From: HH000001	-	1	Enquire
16005	LR027589	FENDER - FRONT	LR027589 FENDER - FRONT RH / To: FH971509	-	1	Enquire
16005	LR027590	FENDER - FRONT	LR027590 FENDER - FRONT LH / To: FH971509	-	1	Enquire
16005	LR066922	FENDER - FRONT	LR066922 FENDER - FRONT RH / From: FH971510	-	1	Enquire
16005	LR066935	FENDER - FRONT	LR066935 FENDER - FRONT LH / From: FH971510	-	1	Enquire
