Transmission Mounting (2.2L Cr Di 16V Diesel, 6 Speed Manual Trans M66 - Awd, Halewood (Uk), 6...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Transmission Mounting (2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD, Halewood (UK), 6...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001187 BOLT $4.51 To Order
Photo Part No Description Price (each) Stock
FB112126 BOLT $1.49 To Order
Photo Part No Description Price (each) Stock
RYG500170 BOLT $0.42 To Order
Photo Part No Description Price (each) Stock
LR004838 NUT $1.67 To Order
Photo Part No Description Price (each) Stock
LR020623 REINFORCEMENT - ENGINE SUPPORT $38.95 To Order
Photo Part No Description Price (each) Stock
LR047371 HOUSING - TRANSMISSION EXTENSION $171.94 To Order
LR024738 HOUSING - TRANSMISSION EXTENSION $241.51 To Order
LR061456 HOUSING - TRANSMISSION EXTENSION $161.69 To Order
Photo Part No Description Price (each) Stock
LR024741 SUPPORT - TRANSMISSION CENTRE $93.93 To Order
LR047375 SUPPORT - TRANSMISSION CENTRE $143.54 To Order
View All

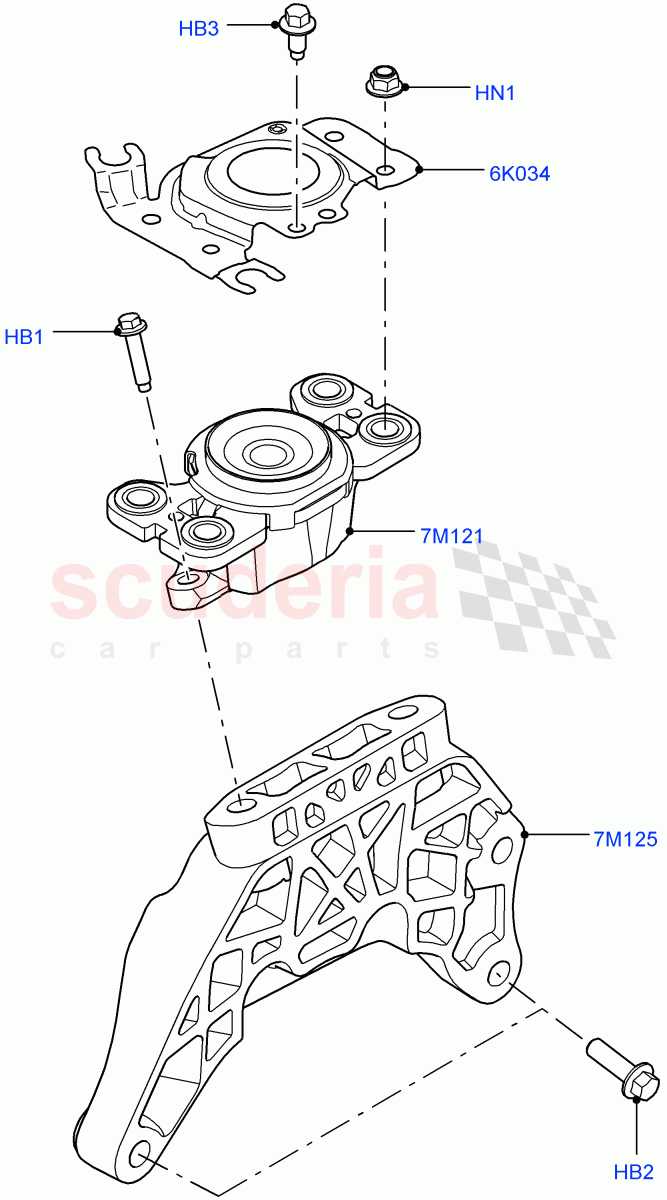

Transmission Mounting (2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD, Halewood (UK), 6 Speed Manual Trans-JLR M66 2WD) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001187
BOLT
M14 X 55MM 		$4.51 2
HB2 FB112126
BOLT
M12 X 60MM 		$1.49 5
HB3 RYG500170
BOLT
Bracket, M8 X 14MM 		$0.42 2
HN1 LR004838
NUT
M12, Nut And Washer 		$1.67 4
6K034 LR020623
REINFORCEMENT - ENGINE SUPPORT 		$38.95 1
7M121 LR047371
HOUSING - TRANSMISSION EXTENSION
With Insulator / From: EH000001 / To: EH902478 		$171.94 1
7M121 LR024738
HOUSING - TRANSMISSION EXTENSION
To: DH999999 		$241.51 1
7M121 LR061456
HOUSING - TRANSMISSION EXTENSION
5 Door / With Insulator / From: EH902479 		$161.69 1
7M125 LR024741
SUPPORT - TRANSMISSION CENTRE
To: DH999999 		$93.93 1
7M125 LR047375
SUPPORT - TRANSMISSION CENTRE
From: EH000001 		$143.54 1
