Name: Engine Mounting (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.2 (1 reviews)

Engine Mounting (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Engine Mounting (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)

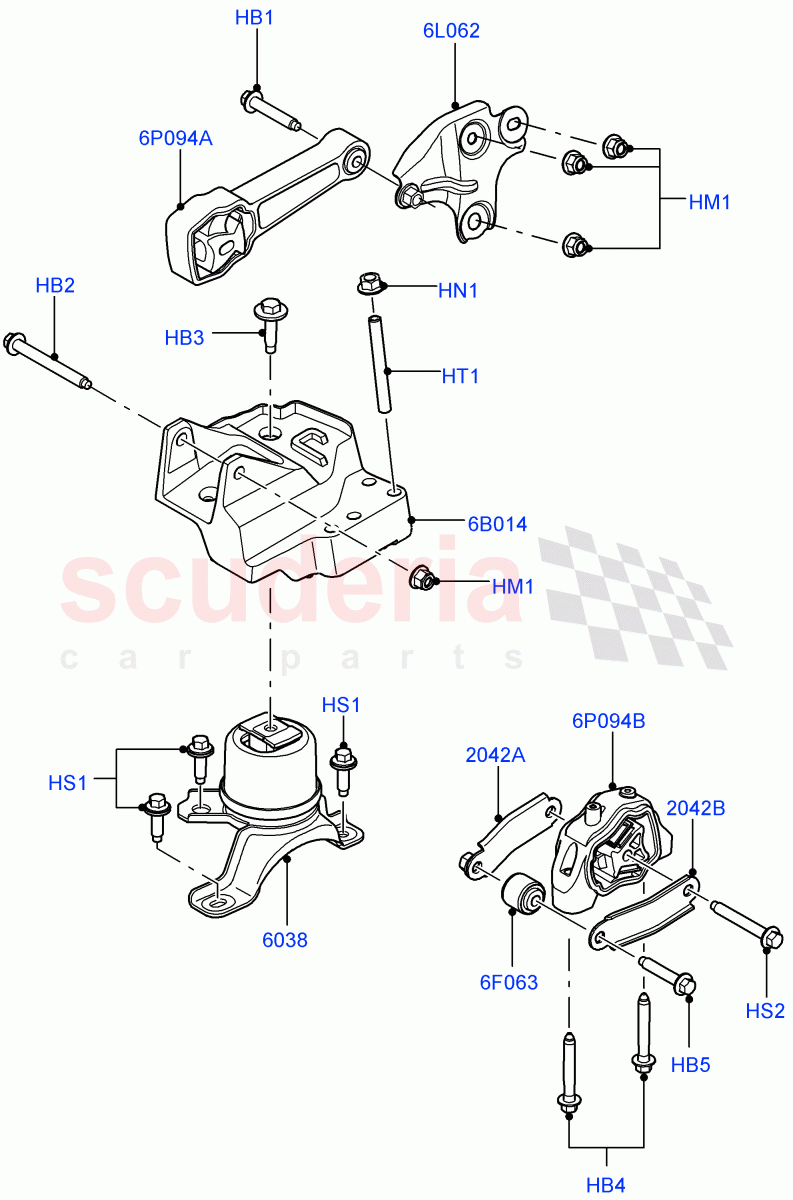

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000039	BOLT	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024747	BOLT	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024744	BOLT	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000094	BOLT - HEX.HEAD	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR045671	BOLT	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112046	NUT - HEX.	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	FN112056	NUT - HEX. - FLANGED	$1.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG501260	SCREW AND WASHER	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045673	SCREW	$4.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024749	STUD	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024730	INSULATOR - ENGINE SUPPORT	$156.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000596	INSULATOR - ENGINE COMPARTMENT	$5.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000598	INSULATOR - ENGINE COMPARTMENT	$5.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037029	BRACKET - ENGINE FRONT SUPPORT	$145.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000520	INSULATOR - STABILIZER BAR	$86.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072594	BRACKET - ENGINE SUPPORT	$41.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030745	INSULATOR - ENGINE SUPPORT	$129.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032311	INSULATOR - ENGINE SUPPORT	$96.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000039	BOLT	LR000039 BOLT Hexagonal Head, M12 x 65MM / From: GT000001	$1.61	1
HB2	LR024747	BOLT	LR024747 BOLT Hexagonal Head, M12 X 112 / From: GT000001	$3.24	1
HB3	LR024744	BOLT	LR024744 BOLT Bolt And Washer, M12 x 40MM / From: GT000001	$4.20	1
HB4	LR000094	BOLT - HEX.HEAD IN STOCK	LR000094 BOLT - HEX.HEAD M12 x 75MM / From: GT000001 IN STOCK	$1.11	2
HB5	LR045671	BOLT	LR045671 BOLT M12 x 65MM / From: GT000001	$2.42	1
HM1	FY112046	NUT - HEX.	FY112046 NUT - HEX. M12, Nut / From: GT000001	$0.53	4
HN1	FN112056	NUT - HEX. - FLANGED IN STOCK	FN112056 NUT - HEX. - FLANGED M12 / From: GT000001 IN STOCK	$1.13	4
HS1	RYG501260	SCREW AND WASHER	RYG501260 SCREW AND WASHER M12X1.75 / From: GT000001	$1.36	3
HS2	LR045673	SCREW	LR045673 SCREW M12 x 85MM / From: GT000001	$4.12	1
HT1	LR024749	STUD	LR024749 STUD M12 X 50 / M12 X 26 / From: GT000001	$3.19	4
6B014	LR037029	BRACKET - ENGINE FRONT SUPPORT	LR037029 BRACKET - ENGINE FRONT SUPPORT From: GT000001	$145.53	1
6F063	LR000520	INSULATOR - STABILIZER BAR	LR000520 INSULATOR - STABILIZER BAR Bushing / From: GT000001	$86.11	1
6L062	LR072594	BRACKET - ENGINE SUPPORT	LR072594 BRACKET - ENGINE SUPPORT From: GT000001	$41.74	1
6P094A	LR030745	INSULATOR - ENGINE SUPPORT	LR030745 INSULATOR - ENGINE SUPPORT Upper / From: GT000001	$129.30	1
6P094B	LR032311	INSULATOR - ENGINE SUPPORT	LR032311 INSULATOR - ENGINE SUPPORT Lower / From: GT000001	$96.29	1
2042A	LR000596	INSULATOR - ENGINE COMPARTMENT	LR000596 INSULATOR - ENGINE COMPARTMENT RH, Insulator / From: GT000001	$5.31	1
2042B	LR000598	INSULATOR - ENGINE COMPARTMENT	LR000598 INSULATOR - ENGINE COMPARTMENT LH, Insulator / From: GT000001	$5.24	1
6038	LR024730	INSULATOR - ENGINE SUPPORT	LR024730 INSULATOR - ENGINE SUPPORT Engine Mounting / From: GT000001	$156.33	1
