Name: Fuel Tank & Related Parts ((V) FROMCA000001)
Rating: 4.0 (1 reviews)

Fuel Tank & Related Parts ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Fuel Tank & Related Parts ((V) FROMCA000001)

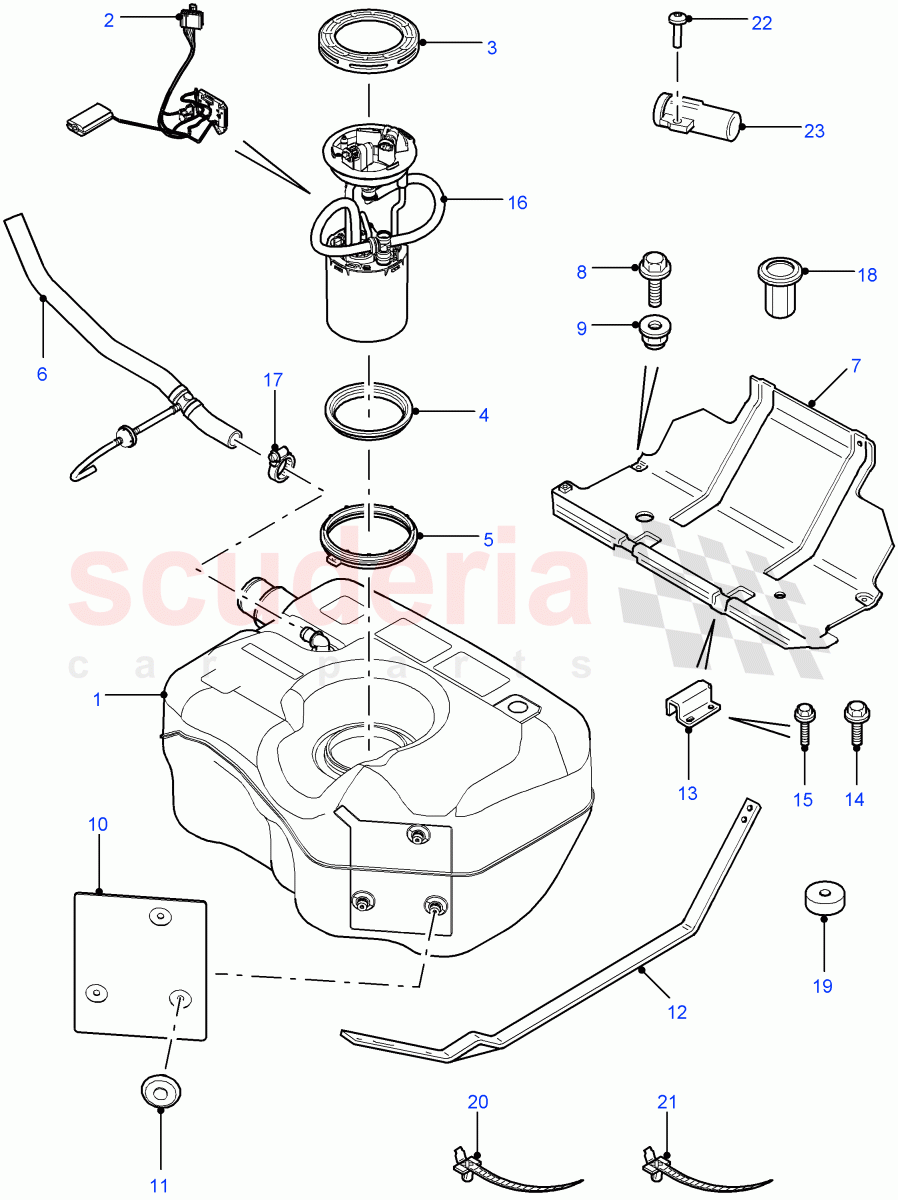

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR030035	TANK - FUEL	$2,240.89	To Order
	LR030036	TANK - FUEL	$2,240.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030037	SENDER - FUEL TANK	$303.08	To Order
	LR030038	SENDER - FUEL TANK	$303.08	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3808	RING - LOCK	$22.60	To Order

Photo	Part No	Description	Price (each)	Stock
	WGQ500020	GASKET - FUEL TANK COVER	$24.16	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3807	ADAPTOR	$8.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032393	HOSE - CONNECTING	$160.84	To Order
	LR032394	HOSE - CONNECTING	$160.84	To Order
	LR067194	HOSE - CONNECTING	$123.79	To Order

Photo	Part No	Description	Price (each)	Stock
	WFI100070	STRAP - FUEL TANK	$187.66	To Order
	WFI100100	STRAP - FUEL TANK	$213.01	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110307	SCREW	$3.16	To Order
	FS110307	SCREW	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	$4.32	IN STOCK
	FY110056	NUT	$4.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WFE501390	HEAT SHIELD	$13.43	To Order
	WGE100110	PAD - INSULATING	$14.90	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ100040	RIVET - PLASTIC	$8.16	To Order

Photo	Part No	Description	Price (each)	Stock
	WFS100530	STRAP - FUEL TANK	$139.17	To Order

Photo	Part No	Description	Price (each)	Stock
	WFU500030	BRACKET - FUEL TUBE SUPPORT	$53.68	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108207	BOLT	$2.59	To Order
	FA108207	BOLT	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FA105201	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030039	PUMP - FUEL	$422.85	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC101660	CLAMP - HOSE	$2.03	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH100470	NUT - HEX.	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	MXC5714	INSULATOR - SPACER TYPE	$5.61	To Order
	MXC5714	INSULATOR - SPACER TYPE	$5.61	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU8981	STRAP - CABLE	$1.58	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC500150	CLIP - HOSE	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030041	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030040	SWITCH - FUEL SHUT-OFF	$25.51	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR030035	TANK - FUEL	LR030035 TANK - FUEL 90" Wheelbase	$2,240.89	1
1	LR030036	TANK - FUEL	LR030036 TANK - FUEL 110" Wheelbase	$2,240.87	1
2	LR030037	SENDER - FUEL TANK	LR030037 SENDER - FUEL TANK 90" Wheelbase	$303.08	1
2	LR030038	SENDER - FUEL TANK	LR030038 SENDER - FUEL TANK 110" Wheelbase	$303.08	1
3	ESR3808	RING - LOCK	ESR3808 RING - LOCK	$22.60	1
4	WGQ500020	GASKET - FUEL TANK COVER	WGQ500020 GASKET - FUEL TANK COVER	$24.16	1
5	ESR3807	ADAPTOR	ESR3807 ADAPTOR adaptor	$8.06	1
6	LR032393	HOSE - CONNECTING	LR032393 HOSE - CONNECTING 90" Wheelbase / To: FA463433	$160.84	1
6	LR032394	HOSE - CONNECTING	LR032394 HOSE - CONNECTING 110" Wheelbase	$160.84	1
6	LR067194	HOSE - CONNECTING	LR067194 HOSE - CONNECTING 90" Wheelbase / From: FA463434	$123.79	1
7	WFI100070	STRAP - FUEL TANK	WFI100070 STRAP - FUEL TANK 90" Wheelbase	$187.66	1
7	WFI100100	STRAP - FUEL TANK	WFI100100 STRAP - FUEL TANK 110" Wheelbase	$213.01	1
8	FS110307	SCREW	FS110307 SCREW 90" Wheelbase / M10 x 30	$3.16	4
8	FS110307	SCREW	FS110307 SCREW 110" Wheelbase / M10 x 30	$3.16	2
9	FY110056	NUT IN STOCK	FY110056 NUT 90" Wheelbase IN STOCK	$4.32	4
9	FY110056	NUT IN STOCK	FY110056 NUT 110" Wheelbase IN STOCK	$4.32	2
10	WFE501390	HEAT SHIELD	WFE501390 HEAT SHIELD 90" Wheelbase	$13.43	1
10	WGE100110	PAD - INSULATING	WGE100110 PAD - INSULATING 110" Wheelbase	$14.90	1
11	WYQ100040	RIVET - PLASTIC	WYQ100040 RIVET - PLASTIC	$8.16	3
12	WFS100530	STRAP - FUEL TANK	WFS100530 STRAP - FUEL TANK 110" Wheelbase	$139.17	1
13	WFU500030	BRACKET - FUEL TUBE SUPPORT	WFU500030 BRACKET - FUEL TUBE SUPPORT	$53.68	1
14	FA108207	BOLT	FA108207 BOLT 90" Wheelbase / Flanged Head, M8 X 20MM	$2.59	2
14	FA108207	BOLT	FA108207 BOLT 110" Wheelbase / Flanged Head, M8 X 20MM	$2.59	4
15	FA105201	SCREW	FA105201 SCREW M5 x 20	$1.05	1
16	LR030039	PUMP - FUEL	LR030039 PUMP - FUEL	$422.85	1
17	PYC101660	CLAMP - HOSE	PYC101660 CLAMP - HOSE	$2.03	1
18	WYH100470	NUT - HEX.	WYH100470 NUT - HEX. 110" Wheelbase / Hexagonal, M10	$3.85	2
19	MXC5714	INSULATOR - SPACER TYPE	MXC5714 INSULATOR - SPACER TYPE 90" Wheelbase	$5.61	2
19	MXC5714	INSULATOR - SPACER TYPE	MXC5714 INSULATOR - SPACER TYPE 110" Wheelbase	$5.61	4
20	ADU8981	STRAP - CABLE	ADU8981 STRAP - CABLE	$1.58	1
21	WYC500150	CLIP - HOSE	WYC500150 CLIP - HOSE	$1.32	1
22	LR030041	SCREW	LR030041 SCREW 4.8 X 16MM	$1.36	2
23	LR030040	SWITCH - FUEL SHUT-OFF	LR030040 SWITCH - FUEL SHUT-OFF Mounted To Bulkhead	$25.51	1
