Fuel Cooler Assembly ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Fuel Cooler Assembly ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PIB500052 COOLER - FUEL $296.40 To Order
Photo Part No Description Price (each) Stock
PIB500180 COOLER - FUEL $166.23 To Order
LR038702 COOLER - FUEL $158.72 To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.57 IN STOCK
Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
FS106146 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR038701 BRACKET AND BRIDGE PIPE $116.06 To Order
View All

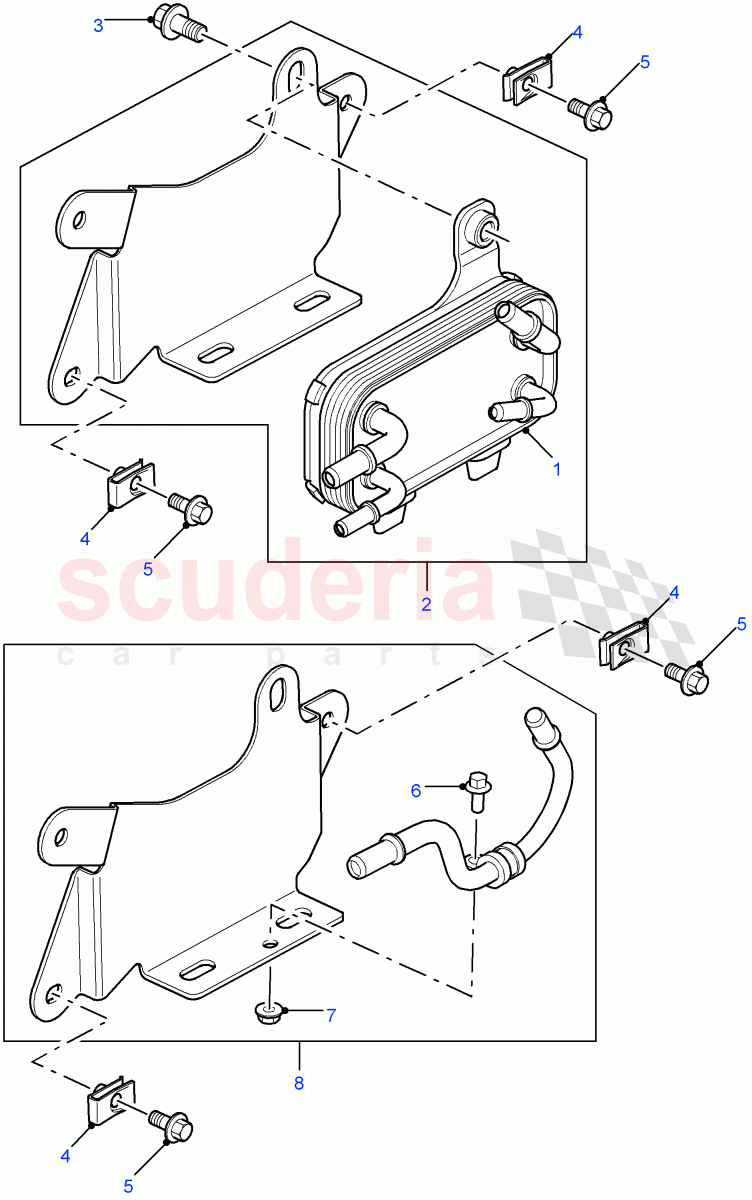

Fuel Cooler Assembly ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 PIB500052
COOLER - FUEL
To: DA432379 		$296.40 1
2 PIB500180
COOLER - FUEL
With Bracket / To: DA432379 		$166.23 1
2 LR038702
COOLER - FUEL
EU2 / Fuel Cooler Replaced By Bridge Pipe And Bracket Assy In Vehicles Compliant With EU5 Level Emissions, With Bracket / From: DA432380 		$158.72 1
3 FS108206
BOLT
M8 X 20MM / To: DA432379
IN STOCK 		$2.23 1
3 FS108206
BOLT
EU2 / M8 X 20MM / From: DA432380
IN STOCK 		$2.23 1
4 LR000053
NUT - FLANGED
IN STOCK 		$1.57 2
5 FS108206
BOLT
M8 X 20MM
IN STOCK 		$2.23 2
6 FS106146
SCREW
Stage V Plus DPF / M6 X 14MM / From: DA432380 		$0.45 1
7 FN106046
NUT - HEX.
Stage V Plus DPF / M6 / From: DA432380
IN STOCK 		$1.45 1
8 LR038701
BRACKET AND BRIDGE PIPE
Stage V Plus DPF / Fuel Cooler Replaced By Bridge Pipe And Bracket Assy In Vehicles Compliant With EU5 Level Emissions / From: DA432380 		$116.06 1
