Exhaust Gas Recirculation ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Exhaust Gas Recirculation ((V) FROMCA000001)

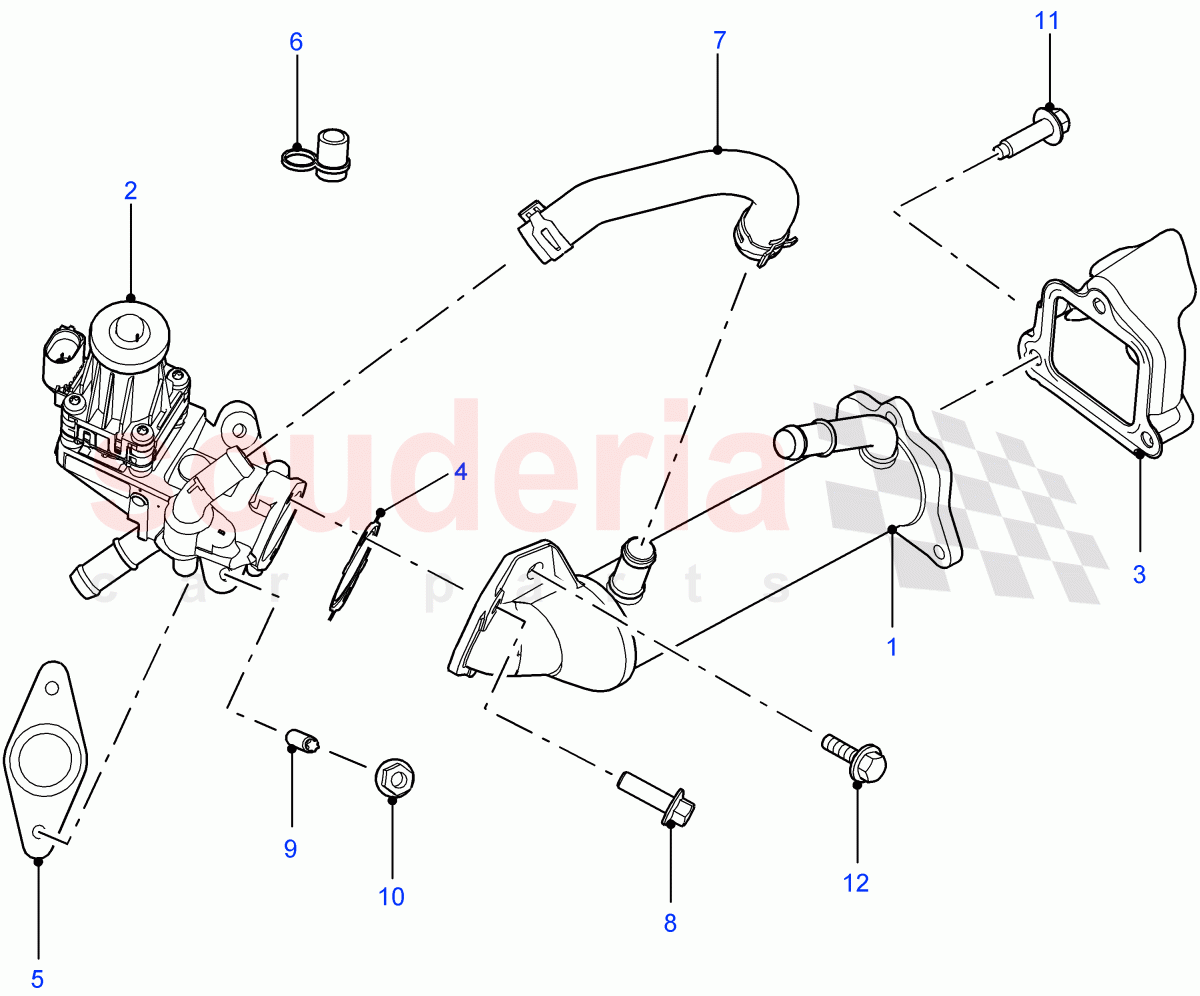

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR031503	COOLER - EGR	Enquire	To Order
	LR039100	COOLER - EGR	Enquire	To Order
	LR049203	COOLER - EGR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030027	VALVE - EXHAUST GAS RECIRCULATION	Enquire	To Order
	LR055534	VALVE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030028	GASKET - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031879	GASKET - EGR COOLER	Enquire	To Order
	LR034077	GASKET - EGR COOLER	Enquire	To Order
	LR037955	GASKET - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034076	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032210	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030029	PIPE - EGR	Enquire	To Order
	LR038703	PIPE - EGR	Enquire	To Order
	LR045283	PIPE - EGR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FS108252	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005629	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YYH500020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500460	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500460	BOLT - HEX.HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR031503	COOLER - EGR	LR031503 COOLER - EGR To: CA999999	-	1	Enquire
1	LR039100	COOLER - EGR	LR039100 COOLER - EGR From: DA000001 / To: EA446783	-	1	Enquire
1	LR049203	COOLER - EGR	LR049203 COOLER - EGR From: EA446784	-	1	Enquire
2	LR030027	VALVE - EXHAUST GAS RECIRCULATION	LR030027 VALVE - EXHAUST GAS RECIRCULATION To: DA440058	-	1	Enquire
2	LR055534	VALVE - EXHAUST GAS RECIRCULATION	LR055534 VALVE - EXHAUST GAS RECIRCULATION From: DA440059	-	1	Enquire
3	LR030028	GASKET - EGR COOLER	LR030028 GASKET - EGR COOLER	-	1	Enquire
4	LR031879	GASKET - EGR COOLER	LR031879 GASKET - EGR COOLER To: CA433333	-	1	Enquire
4	LR034077	GASKET - EGR COOLER	LR034077 GASKET - EGR COOLER From: CA433334 / To: CA500001	-	1	Enquire
4	LR037955	GASKET - EGR COOLER	LR037955 GASKET - EGR COOLER From: CA500002	-	1	Enquire
5	LR034076	GASKET	LR034076 GASKET	-	1	Enquire
6	LR032210	PLUG - BLANKING	LR032210 PLUG - BLANKING EGR Cooler, Outlet	-	1	Enquire
7	LR030029	PIPE - EGR	LR030029 PIPE - EGR EGR Cooler, Inlet / To: CA417102	-	1	Enquire
7	LR038703	PIPE - EGR	LR038703 PIPE - EGR EGR Cooler, Inlet / From: CA417103 / To: CA444443	-	1	Enquire
7	LR045283	PIPE - EGR	LR045283 PIPE - EGR EGR Cooler, Inlet / From: CA444444 / To: EA999999	-	1	Enquire
7	LR077774	PIPE - EGR	LR077774 PIPE - EGR EGR Cooler, Inlet / From: FA000001	-	1	Enquire
8	FS108252	BOLT - HEX.HEAD	FS108252 BOLT - HEX.HEAD M8 x 25	-	2	Enquire
9	LR005629	STUD	LR005629 STUD M6 x 12MM	-	2	Enquire
10	YYH500020	NUT	YYH500020 NUT M6	-	2	Enquire
11	RYG500460	BOLT - HEX.HEAD	RYG500460 BOLT - HEX.HEAD M8 x 25	-	3	Enquire
12	RYG500460	BOLT - HEX.HEAD	RYG500460 BOLT - HEX.HEAD M8 x 25	-	1	Enquire
