Fuel Tank & Related Parts ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Fuel Tank & Related Parts ((V) FROM7A000001, (V) TOBA999999)

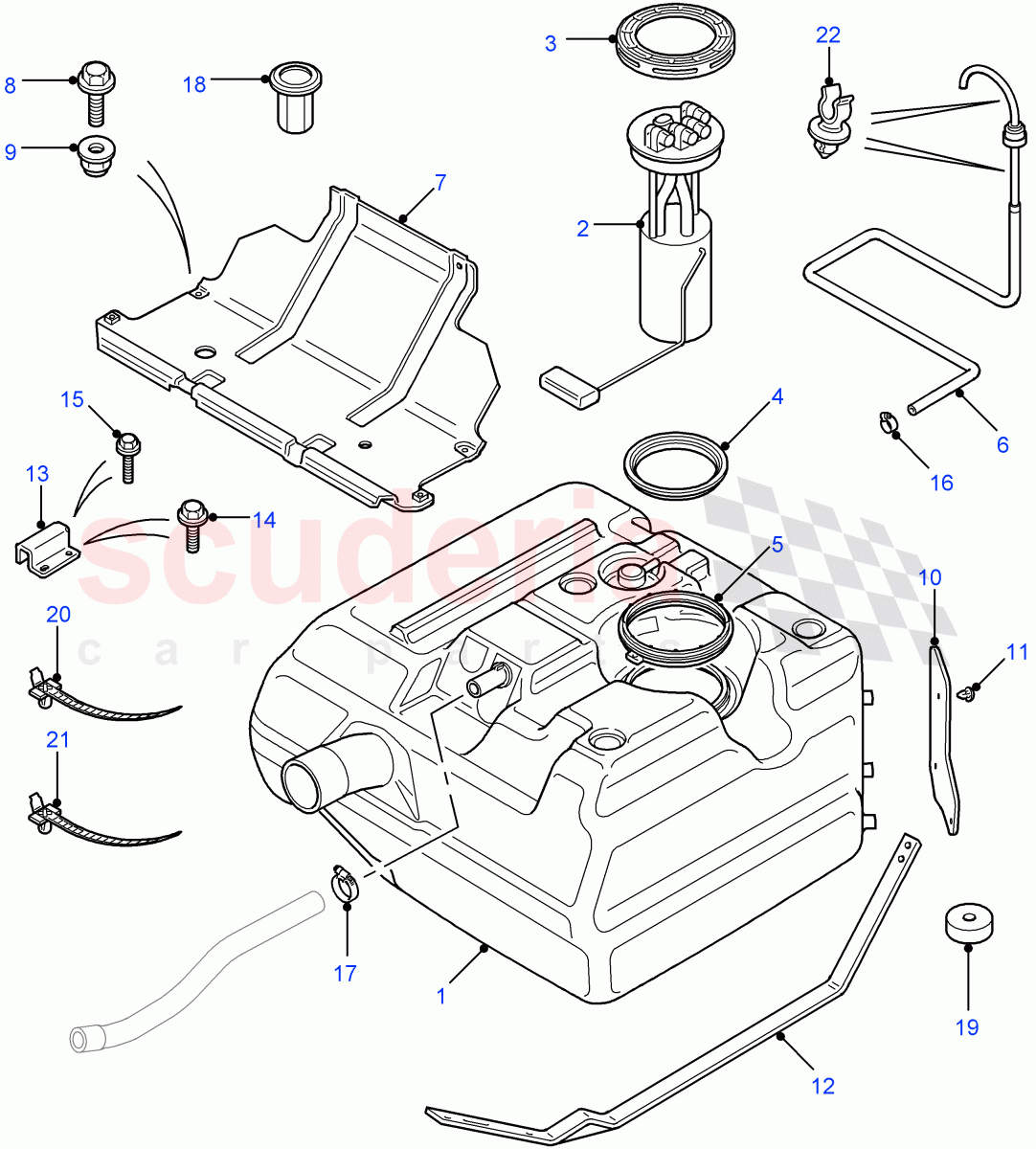

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHK100040	COVER - FUEL TANK	Enquire	To Order
	WHK100050	COVER - FUEL TANK	Enquire	To Order
	LR013168	TANK - FUEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WQB100430	PUMP - FUEL	Enquire	To Order
	WQB100440	PUMP - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3808	RING - LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WGQ500020	GASKET - FUEL TANK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3807	ADAPTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFH101790	HOSE - VENT	Enquire	To Order
	WFH101730	HOSE - VENT	Enquire	To Order
	LR016190	HOSE - CONNECTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WFI100070	STRAP - FUEL TANK	Enquire	To Order
	WFI100100	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110307	SCREW	Enquire	To Order
	FS110307	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WGE100120	PAD - INSULATING	Enquire	To Order
	WGE100110	PAD - INSULATING	Enquire	To Order
	WFE501390	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ100040	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFS100530	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFU500030	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108207	BOLT	Enquire	To Order
	FA108207	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA105201	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC100570	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC102070	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH100470	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MXC5714	INSULATOR - SPACER TYPE	Enquire	To Order
	MXC5714	INSULATOR - SPACER TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU8981	STRAP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC500150	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MXC1848	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	WHK100040	COVER - FUEL TANK	WHK100040 COVER - FUEL TANK 90" Wheelbase / To: 8A760581	-	1	Enquire
1	WHK100050	COVER - FUEL TANK	WHK100050 COVER - FUEL TANK 110" Wheelbase / To: 8A760303	-	1	Enquire
1	LR013168	TANK - FUEL	LR013168 TANK - FUEL 90" Wheelbase / From: 8A760582	-	1	Enquire
1	LR013167	TANK - FUEL	LR013167 TANK - FUEL 110" Wheelbase / From: 8A760304	-	1	Enquire
2	WQB100430	PUMP - FUEL	WQB100430 PUMP - FUEL 90" Wheelbase	-	1	Enquire
2	WQB100440	PUMP - FUEL	WQB100440 PUMP - FUEL 110" Wheelbase	-	1	Enquire
3	ESR3808	RING - LOCK	ESR3808 RING - LOCK	-	1	Enquire
4	WGQ500020	GASKET - FUEL TANK COVER	WGQ500020 GASKET - FUEL TANK COVER	-	1	Enquire
5	ESR3807	ADAPTOR	ESR3807 ADAPTOR adaptor	-	1	Enquire
6	WFH101790	HOSE - VENT	WFH101790 HOSE - VENT 90" Wheelbase / To: 8A760581	-	1	Enquire
6	WFH101730	HOSE - VENT	WFH101730 HOSE - VENT 110" Wheelbase / To: 8A760303	-	1	Enquire
6	LR016190	HOSE - CONNECTING	LR016190 HOSE - CONNECTING 90" Wheelbase / From: 8A760582	-	1	Enquire
6	LR016191	HOSE - CONNECTING	LR016191 HOSE - CONNECTING 110" Wheelbase / From: 8A760304	-	1	Enquire
7	WFI100070	STRAP - FUEL TANK	WFI100070 STRAP - FUEL TANK 90" Wheelbase	-	1	Enquire
7	WFI100100	STRAP - FUEL TANK	WFI100100 STRAP - FUEL TANK 110" Wheelbase	-	1	Enquire
8	FS110307	SCREW	FS110307 SCREW 90" Wheelbase / M10 x 30	-	4	Enquire
8	FS110307	SCREW	FS110307 SCREW 110" Wheelbase / M10 x 30	-	2	Enquire
9	FY110056	NUT	FY110056 NUT	-	2	Enquire
10	WGE100120	PAD - INSULATING	WGE100120 PAD - INSULATING 90" Wheelbase / To: 7A753761	-	1	Enquire
10	WGE100110	PAD - INSULATING	WGE100110 PAD - INSULATING 110" Wheelbase	-	1	Enquire
10	WFE501390	HEAT SHIELD	WFE501390 HEAT SHIELD 90" Wheelbase / From: 7A753762	-	1	Enquire
11	WYQ100040	RIVET - PLASTIC	WYQ100040 RIVET - PLASTIC	-	3	Enquire
12	WFS100530	STRAP - FUEL TANK	WFS100530 STRAP - FUEL TANK 110" Wheelbase	-	1	Enquire
13	WFU500030	BRACKET - FUEL TUBE SUPPORT	WFU500030 BRACKET - FUEL TUBE SUPPORT	-	1	Enquire
14	FA108207	BOLT	FA108207 BOLT 90" Wheelbase / Flanged Head, M8 X 20MM	-	2	Enquire
14	FA108207	BOLT	FA108207 BOLT 110" Wheelbase / Flanged Head, M8 X 20MM	-	4	Enquire
15	FA105201	SCREW	FA105201 SCREW M5 x 20	-	1	Enquire
16	WYC100570	CLIP - HOSE	WYC100570 CLIP - HOSE	-	1	Enquire
17	PYC102070	CLIP - HOSE	PYC102070 CLIP - HOSE 50-70MM	-	1	Enquire
18	WYH100470	NUT - HEX.	WYH100470 NUT - HEX. 110" Wheelbase / Hexagonal, M10	-	2	Enquire
19	MXC5714	INSULATOR - SPACER TYPE	MXC5714 INSULATOR - SPACER TYPE 90" Wheelbase	-	2	Enquire
19	MXC5714	INSULATOR - SPACER TYPE	MXC5714 INSULATOR - SPACER TYPE 110" Wheelbase	-	4	Enquire
20	ADU8981	STRAP - CABLE	ADU8981 STRAP - CABLE	-	1	Enquire
21	WYC500150	CLIP - HOSE	WYC500150 CLIP - HOSE	-	1	Enquire
22	MXC1848	CLIP	MXC1848 CLIP	-	2	Enquire
