Name: Exhaust Gas Recirculation ((V) FROM7A000001, (V) TOBA999999)
Rating: 4.4 (1 reviews)

View All

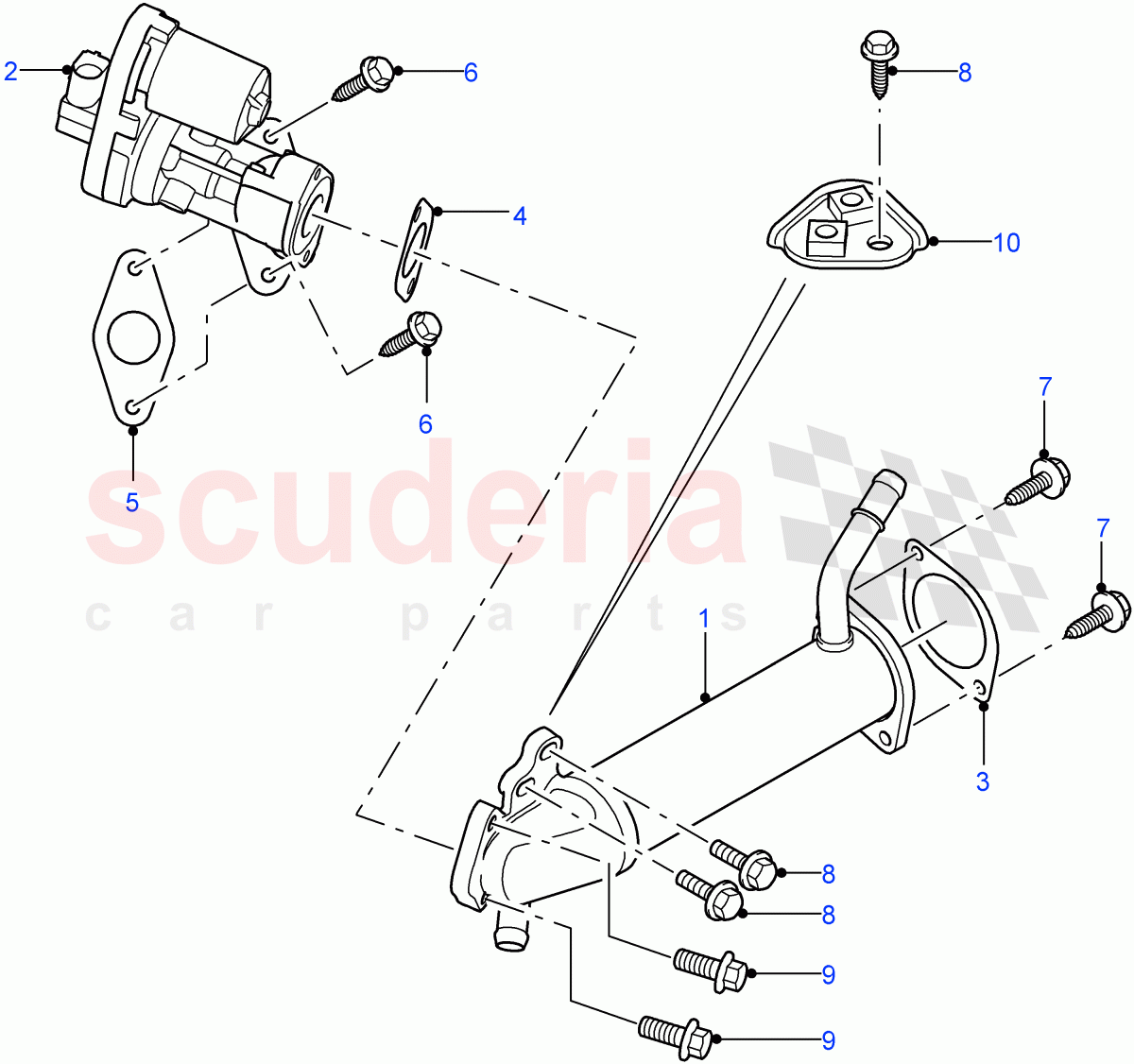

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004870	COOLER - EGR	$219.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006650	VALVE - EXHAUST GAS RECIRCULATION	$285.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004477	GASKET - EGR COOLER	$24.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004476	GASKET - EGR COOLER	$20.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004471	GASKET	$21.79	To Order

Photo	Part No	Description	Price (each)	Stock
	4558527	SCREW	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000631	BOLT - HEX.HEAD	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108252	BOLT - HEX.HEAD	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	4409298	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004475	BRACKET	$40.32	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR004870	COOLER - EGR	LR004870 COOLER - EGR	$219.71	1
2	LR006650	VALVE - EXHAUST GAS RECIRCULATION	LR006650 VALVE - EXHAUST GAS RECIRCULATION	$285.26	1
3	LR004477	GASKET - EGR COOLER	LR004477 GASKET - EGR COOLER	$24.92	1
4	LR004476	GASKET - EGR COOLER	LR004476 GASKET - EGR COOLER	$20.44	1
5	LR004471	GASKET	LR004471 GASKET	$21.79	1
6	4558527	SCREW	4558527 SCREW M6 X 20MM	$0.77	2
7	LR000631	BOLT - HEX.HEAD	LR000631 BOLT - HEX.HEAD M8 X 20MM	$2.51	2
8	FS108252	BOLT - HEX.HEAD	FS108252 BOLT - HEX.HEAD M8 x 25	$0.74	3
9	4409298	SCREW	4409298 SCREW M8 X 20MM	$0.65	2
10	LR004475	BRACKET	LR004475 BRACKET	$40.32	1

Exhaust Gas Recirculation ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)
