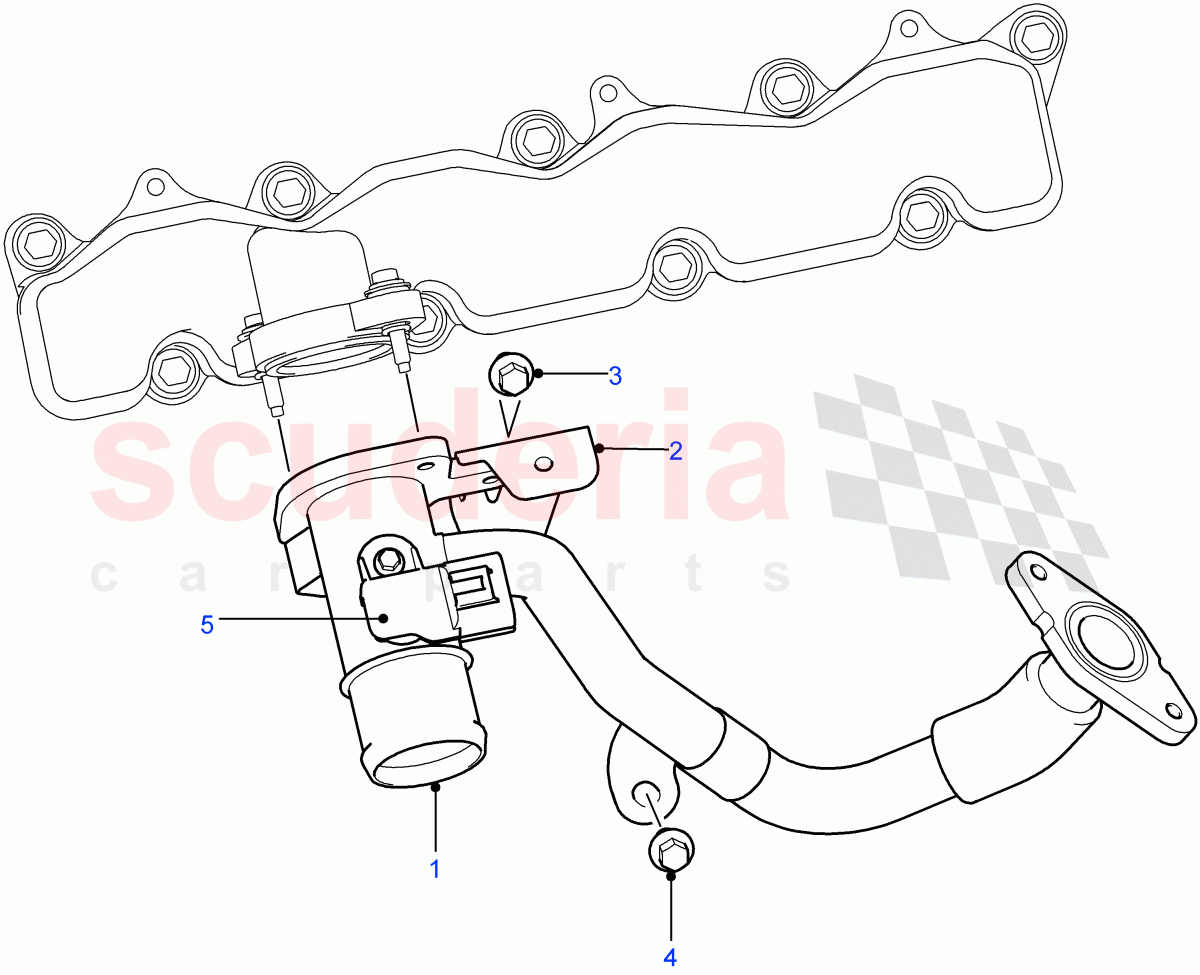

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010456	TUBE - CONNECTING	$773.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004464	BRACKET - FUEL TUBE SUPPORT	$5.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004330	SCREW	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	4622661	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022164	SENSOR	$133.37	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR010456	TUBE - CONNECTING	LR010456 TUBE - CONNECTING	$773.03	1
2	LR004464	BRACKET - FUEL TUBE SUPPORT	LR004464 BRACKET - FUEL TUBE SUPPORT	$5.32	1
3	LR004330	SCREW	LR004330 SCREW M6 X 14MM	$3.19	1
4	4622661	SCREW	4622661 SCREW M8 X 16	$0.70	1
5	LR022164	SENSOR	LR022164 SENSOR MAP Sensor	$133.37	1
