Name: Emission Control - Valves/Hoses ((V) FROMCA000001)
Rating: 5.0 (1 reviews)

View All

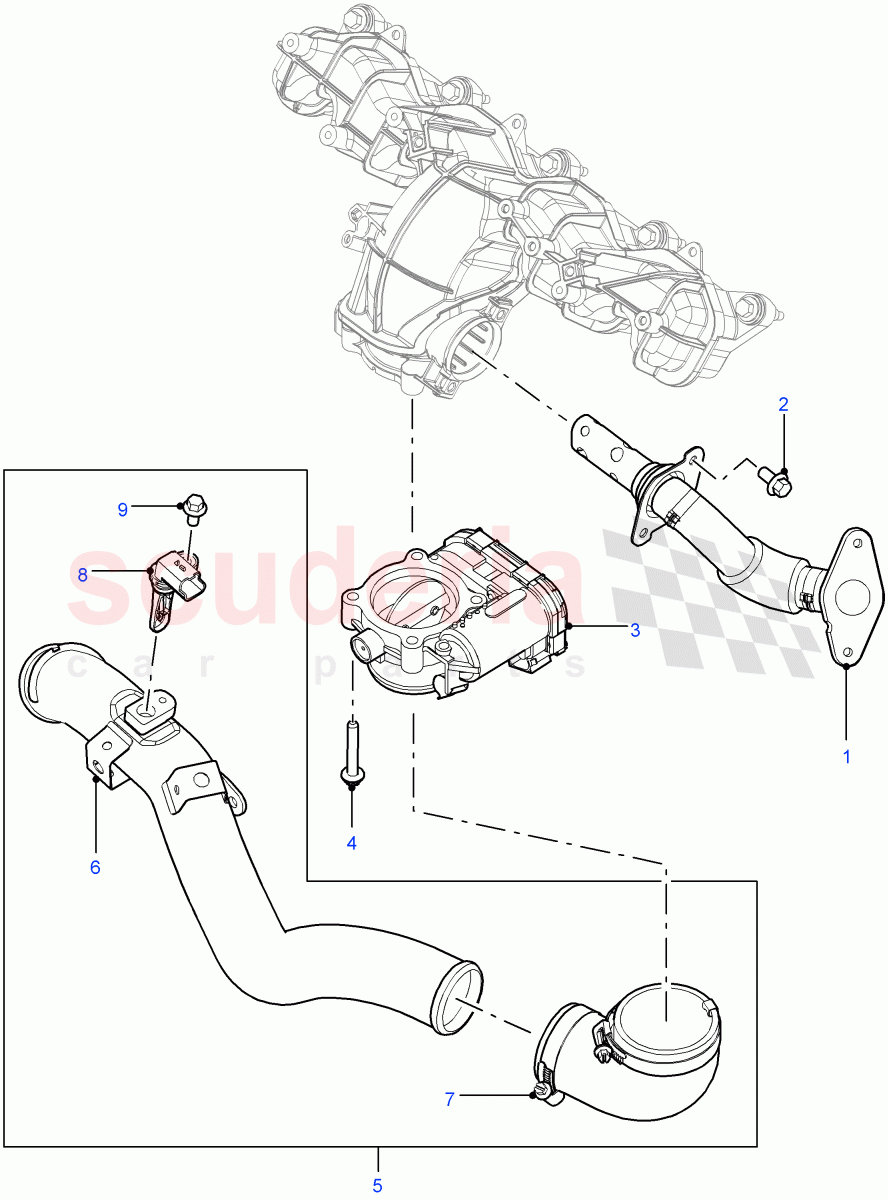

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030034	SCREW	$3.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032214	TUBE - AIR INLET	$245.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032216	SENSOR - AIR CHARGE	$13.99	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106026	Screw	Enquire	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR030010	PIPE - EGR	LR030010 PIPE - EGR To: DA431465	$245.58	1
1	LR055382	PIPE - EGR	LR055382 PIPE - EGR From: DA431466	$261.29	1
2	LR000622	SCREW	LR000622 SCREW M6 x 12MM	$0.58	2
3	LR030033	BODY - CARBURETTOR THROTTLE	LR030033 BODY - CARBURETTOR THROTTLE To: CA555554	$1,003.28	1
3	LR041167	BODY - CARBURETTOR THROTTLE	LR041167 BODY - CARBURETTOR THROTTLE From: CA555555	$1,258.39	1
4	LR030034	SCREW	LR030034 SCREW M6 X 40MM	$3.66	4
5	LR030032	DUCT - AIR	LR030032 DUCT - AIR To: FA463773	$177.24	1
5	LR072846	DUCT - AIR	LR072846 DUCT - AIR From: FA463774	$207.18	1
6	LR032214	TUBE - AIR INLET	LR032214 TUBE - AIR INLET	$245.26	1
7	LR032215	CONNECTION - AIR INLET	LR032215 CONNECTION - AIR INLET To: CA412050	$74.00	1
7	LR067644	CONNECTION - AIR INLET	LR067644 CONNECTION - AIR INLET From: CA412051	$76.57	1
8	LR032216	SENSOR - AIR CHARGE	LR032216 SENSOR - AIR CHARGE	$13.99	1
9	FS106026	Screw	FS106026 Screw M6 X 16MM	-	1	Enquire

Emission Control - Valves/Hoses ((V) Fromca000001)

Land Rover Defender (2007-2016)
