Name: Engine Harness (3.0L AJ20P6 Petrol High)
Rating: 5.0 (1 reviews)

Engine Harness (3.0L AJ20P6 Petrol High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Engine Harness (3.0L AJ20P6 Petrol High)

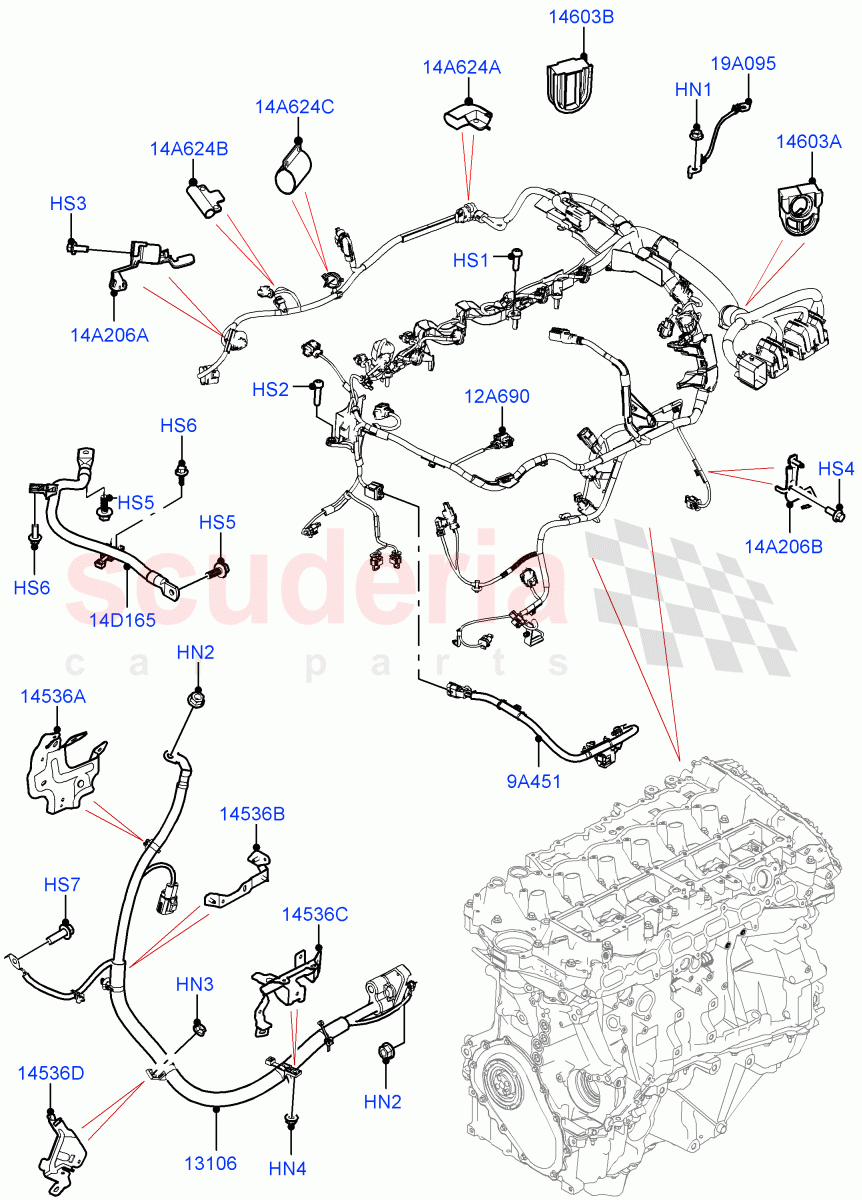

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154100	NUT - FLANGED	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092106	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108591	BOLT	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124564	SCREW	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122583	SCREW	$2.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154102	Screw	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159200	WIRING - ALTERNATOR	$157.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159248	LINK - CAN	$142.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154783	WIRING - ENGINE	$915.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159862	BRACKET - JUMP START	$23.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR173655	Bracket	$28.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164401	BRACKET - STARTER MOTOR	$30.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163551	BRACKET - STARTER MOTOR	$57.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154782	PLUG - BLANKING	$14.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154772	PLUG - BLANKING	$13.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159240	WIRE - ENGINE EARTH	$27.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157213	WIRE - EARTH	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152431	BRACKET - ENGINE HARNESS	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152432	BRACKET - ENGINE HARNESS	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138589	HEAT SHIELD	$32.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138590	HEAT SHIELD	$32.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138591	HEAT SHIELD	$32.62	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6	$1.40	1
HN2	LR122999	NUT - HEX.	LR122999 NUT - HEX. M8	$2.92	3
HN3	LR154100	NUT - FLANGED	LR154100 NUT - FLANGED M6	$0.51	1
HN4	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	1
HS1	LR073720	SCREW	LR073720 SCREW Engine Harness, M6 X 20MM	$1.53	2
HS2	LR092106	SCREW	LR092106 SCREW M6 x 25MM	$0.95	1
HS3	LR108591	BOLT	LR108591 BOLT HEGO Bracket, M6 X 16MM	$1.01	1
HS4	LR073686	SCREW	LR073686 SCREW M6 X 16MM	$2.38	1
HS5	LR124564	SCREW	LR124564 SCREW Hexagonal Head, M8 X 20MM, Taptite	$2.15	2
HS6	LR122583	SCREW	LR122583 SCREW Hexagonal Head, M6 X 16	$2.09	2
HS7	LR154102	Screw	LR154102 Screw M8X25	$1.15	1
9A451	LR159248	LINK - CAN	LR159248 LINK - CAN Belt Integrated Starter Generator, Link	$142.08	1
12A690	LR154783	WIRING - ENGINE	LR154783 WIRING - ENGINE	$915.22	1
14A206A	LR152431	BRACKET - ENGINE HARNESS	LR152431 BRACKET - ENGINE HARNESS HEGO Bracket	$66.39	1
14A206B	LR152432	BRACKET - ENGINE HARNESS	LR152432 BRACKET - ENGINE HARNESS For Crankshaft Sensor	$66.39	1
14A624A	LR138589	HEAT SHIELD	LR138589 HEAT SHIELD Connector, Electric Supercharger	$32.62	1
14A624B	LR138590	HEAT SHIELD	LR138590 HEAT SHIELD Sensor - Air Charge Temperature	$32.62	1
14A624C	LR138591	HEAT SHIELD	LR138591 HEAT SHIELD Clip, Wiring Harness	$32.62	1
14D165	LR159240	WIRE - ENGINE EARTH	LR159240 WIRE - ENGINE EARTH Engine Earth	$27.76	1
19A095	LR157213	WIRE - EARTH	LR157213 WIRE - EARTH Electric Supercharger	$30.47	1
13106	LR159200	WIRING - ALTERNATOR	LR159200 WIRING - ALTERNATOR Starter Motor	$157.77	1
14536A	LR159862	BRACKET - JUMP START	LR159862 BRACKET - JUMP START Jump Start	$23.53	1
14536B	LR173655	Bracket	LR173655 Bracket Starter Cable	$28.18	1
14536C	LR164401	BRACKET - STARTER MOTOR	LR164401 BRACKET - STARTER MOTOR LH, Starter Motor	$30.53	1
14536D	LR163551	BRACKET - STARTER MOTOR	LR163551 BRACKET - STARTER MOTOR RH, Starter Motor	$57.92	1
14603A	LR154782	PLUG - BLANKING	LR154782 PLUG - BLANKING Engine Harness	$14.38	1
14603B	LR154772	PLUG - BLANKING	LR154772 PLUG - BLANKING Blanking Plug	$13.99	1
