Headlamps And Front Flasher Lamps

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Headlamps And Front Flasher Lamps

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR154535 BOLT AND WASHER - HEX.HEAD $1.31 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR164886 HEADLAMP AND FLASHER $2,627.03 To Order
LR164887 HEADLAMP AND FLASHER $2,627.03 To Order
LR152083 HEADLAMP $1,994.23 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025160 CAP - SCREW $0.96 To Order
View All

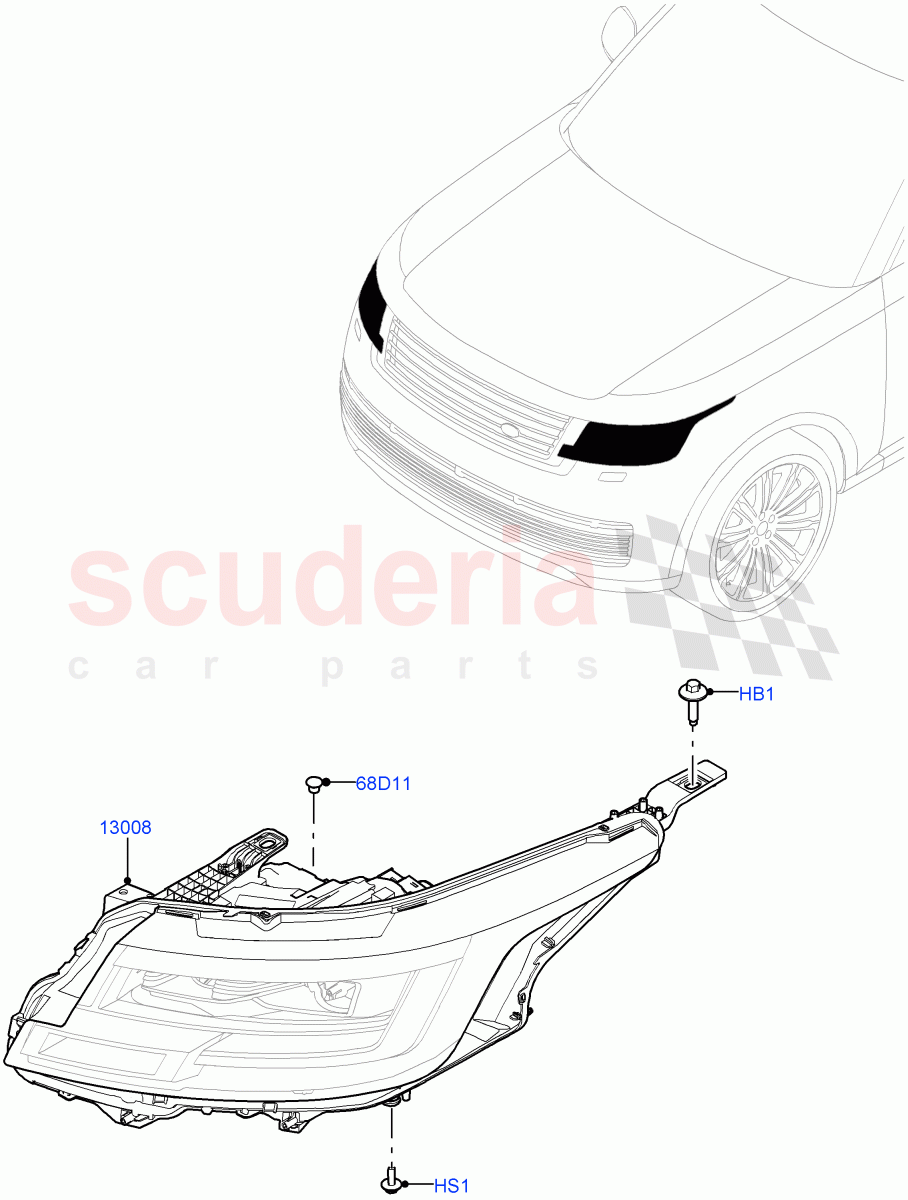

Headlamps And Front Flasher Lamps of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR154535
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6X30 		$1.31 6
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.92 2
68D11 LR025160
CAP - SCREW
H/Lamp Operation FM VSS 108 Pattern / RH/LH 		$0.96 2
13008 LR164886
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / RH 		$2,627.03 1
13008 LR164887
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / LH 		$2,627.03 1
13008 LR152083
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / RH 		$1,994.23 1
13008 LR152085
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH 		$2,111.76 1
13008 LR152086
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Pixel / RH 		$2,608.93 1
13008 LR152087
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Pixel / RH 		$2,762.72 1
13008 LR152090
HEADLAMP
H/Lamp Operation RHD - Left Justify, HEADLAMPS = LED SCANNING / RH 		$4,852.53 1
13008 LR154001
HEADLAMP
H/Lamp Operation LHD-Right Justify, HEADLAMPS = LED SCANNING / RH 		$5,138.55 1
13008 LR152092
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / LH 		$1,994.23 1
13008 LR152094
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH 		$2,040.35 1
13008 LR152098
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Pixel / LH 		$2,735.35 1
13008 LR152097
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Pixel / LH 		$2,608.93 1
13008 LR152099
HEADLAMP
H/Lamp Operation RHD - Left Justify, HEADLAMPS = LED SCANNING / LH 		$4,852.53 1
13008 LR154002
HEADLAMP
H/Lamp Operation LHD-Right Justify, HEADLAMPS = LED SCANNING / LH 		$5,138.55 1
