Name: Switches (Seats)
Rating: 4.3 (1 reviews)

Switches (Seats) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Switches (Seats)

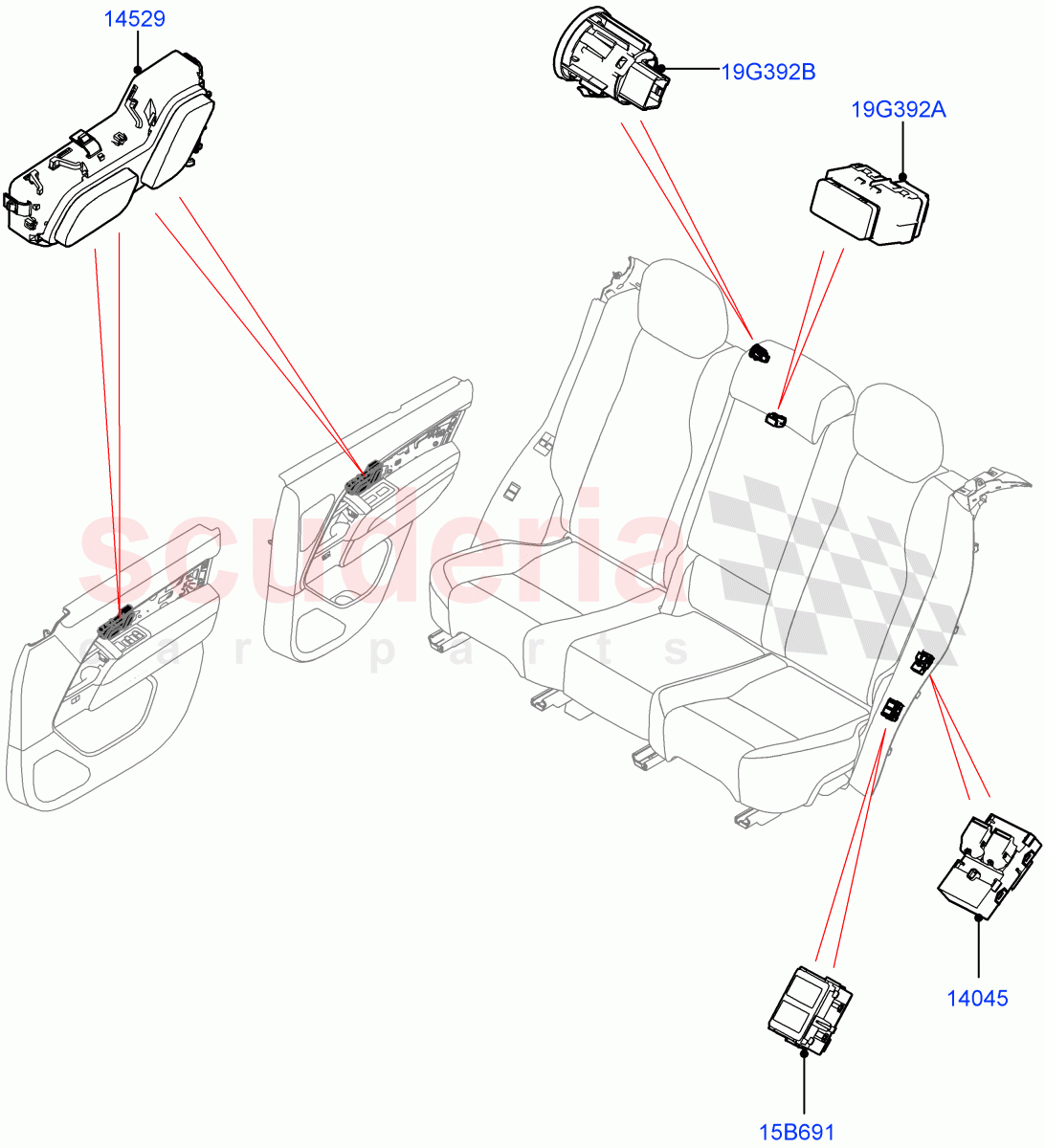

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR081324	SWITCH - POWER SEAT ADJUST	$223.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150448	SWITCH - POWER SEAT ADJUST	$347.30	To Order
	LR150584	SWITCH - POWER SEAT ADJUST	$231.53	To Order
	LR150585	SWITCH - POWER SEAT ADJUST	$231.53	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR083887	SWITCH - POWER SEAT ADJUST	$118.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156500	BUTTON	$241.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156273	BUTTON	$141.92	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
15B691	LR083887	SWITCH - POWER SEAT ADJUST	LR083887 SWITCH - POWER SEAT ADJUST 60/40 Load Through With Slide / RH/LH, Seat Adjustment	$118.26	2
19G392A	LR156500	BUTTON	LR156500 BUTTON Rear Centre Armrest Heated / Armrest Activation Button, Rear Seat Armrest, Service Kit	$241.91	1
19G392B	LR156273	BUTTON	LR156273 BUTTON Rear Executive Deployable Armrest / Headrest Push Button, Rear, Service Kit	$141.92	1
14045	LR081324	SWITCH - POWER SEAT ADJUST	LR081324 SWITCH - POWER SEAT ADJUST With Power Rear Seat Recliner, With Third Row Power Folding Seat / RH/LH, Seat Folding	$223.63	2
14529	LR150448	SWITCH - POWER SEAT ADJUST	LR150448 SWITCH - POWER SEAT ADJUST Front Headrest Power Height / RH, Front Door	$347.30	1
14529	LR150584	SWITCH - POWER SEAT ADJUST	LR150584 SWITCH - POWER SEAT ADJUST With 60/40 Power Fold Thru Rr Seat / RH, Rear Door	$231.53	1
14529	LR150585	SWITCH - POWER SEAT ADJUST	LR150585 SWITCH - POWER SEAT ADJUST 40/20/40 Super Slouch Rear Seat / RH, Rear Door	$231.53	1
14529	LR150449	SWITCH - POWER SEAT ADJUST	LR150449 SWITCH - POWER SEAT ADJUST Front Headrest Manual Height / RH, Front Door	$231.53	1
14529	LR150451	SWITCH - POWER SEAT ADJUST	LR150451 SWITCH - POWER SEAT ADJUST Front Headrest Power Height / LH, Front Door	$231.53	1
14529	LR150586	SWITCH - POWER SEAT ADJUST	LR150586 SWITCH - POWER SEAT ADJUST With 60/40 Power Fold Thru Rr Seat / LH, Rear Door	$231.53	1
14529	LR150587	SWITCH - POWER SEAT ADJUST	LR150587 SWITCH - POWER SEAT ADJUST 40/20/40 Super Slouch Rear Seat / LH, Rear Door	$231.53	1
14529	LR150453	SWITCH - POWER SEAT ADJUST	LR150453 SWITCH - POWER SEAT ADJUST Front Headrest Manual Height / LH, Front Door	$231.53	1
