Anti-Theft Alarm Systems of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Anti-Theft Alarm Systems

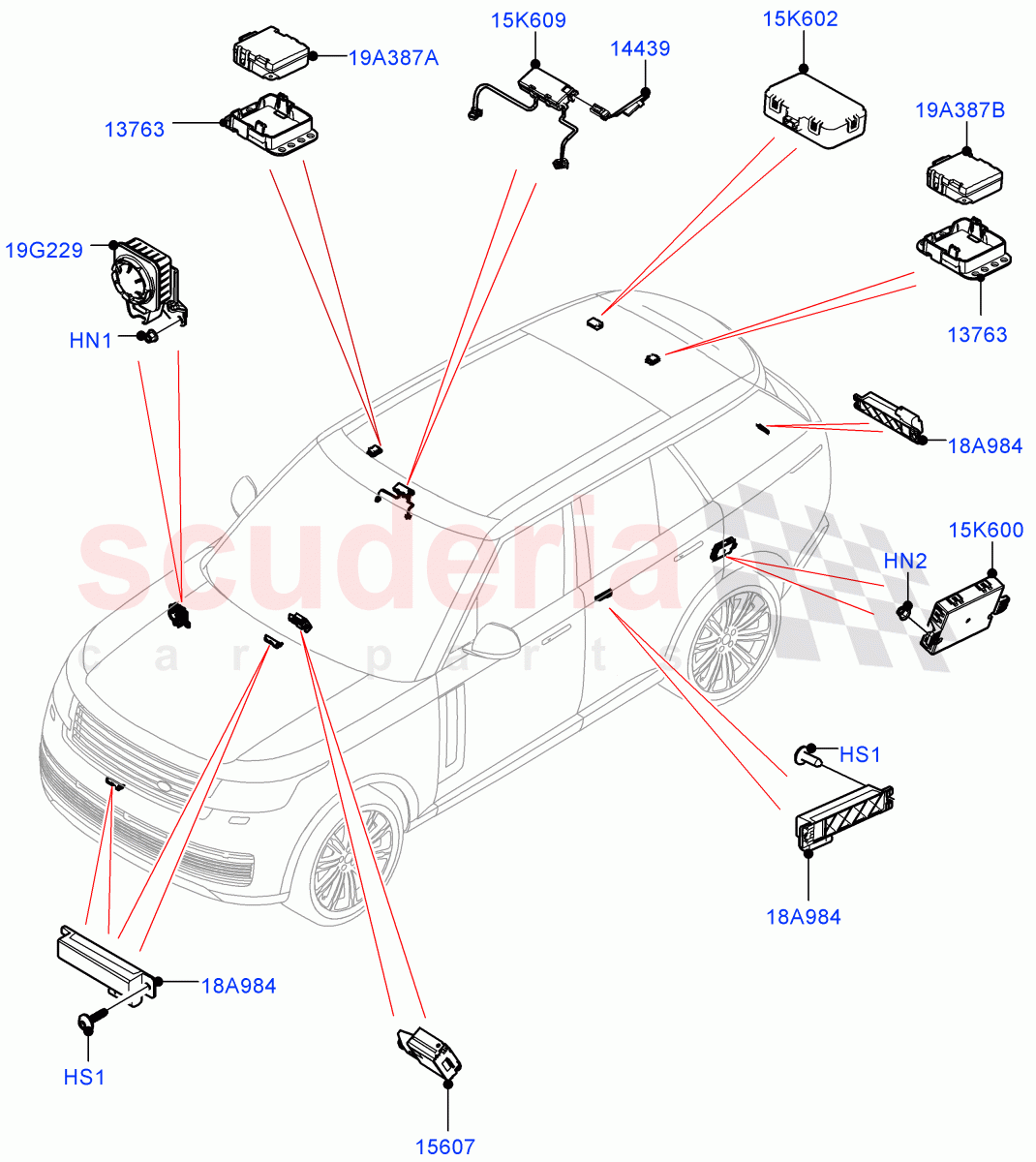

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR109055	SCREW	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110282	BRACKET - SUPPORT	$23.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033377	WIRE - SCANNING MODULE	$26.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147023	TRANSCEIVER - ANTI THEFT	$49.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170911	MODULE - PASSIVE START	$283.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149753	RECEIVER - RADIO REMOTE CONTROL	$93.07	To Order
	LR149754	RECEIVER - RADIO REMOTE CONTROL	$89.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152348	SENSOR AND BRACKET - INTERIOR SCAN	$190.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099137	ANTENNA - LF	$56.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152349	SIREN - ANTI-THEFT ALARM SYSTEM	$218.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129339	TRANSCEIVER	$247.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133253	TRANSCEIVER	$288.92	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6, Siren IN STOCK	$0.69	1
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6, Remote Function Actuator Module IN STOCK	$1.45	2
HS1	LR109055	SCREW	LR109055 SCREW 5 X 16MM, Front Bumper, Rear Door, Remote Keyless Antenna, RH/LH	$0.45	6
15K600	LR170911	MODULE - PASSIVE START	LR170911 MODULE - PASSIVE START Remote Function Actuator Module	$283.75	1
15K602	LR149753	RECEIVER - RADIO REMOTE CONTROL	LR149753 RECEIVER - RADIO REMOTE CONTROL 315 MHZ Door Lock Frequency / Headliner, Rear	$93.07	1
15K602	LR149754	RECEIVER - RADIO REMOTE CONTROL	LR149754 RECEIVER - RADIO REMOTE CONTROL 433 MHZ Door Lock Frequency / Headliner, Rear	$89.28	1
15K609	LR152348	SENSOR AND BRACKET - INTERIOR SCAN	LR152348 SENSOR AND BRACKET - INTERIOR SCAN Perimeter / Volume Theft System / Headliner	$190.09	1
18A984	LR099137	ANTENNA - LF	LR099137 ANTENNA - LF Centre Console, Front Bumper, Rear Bumper, Rear Door, Remote Keyless Antenna, RH/LH	$56.42	5
19A387A	LR129339	TRANSCEIVER	LR129339 TRANSCEIVER Front, Headliner	$247.05	1
19A387B	LR133253	TRANSCEIVER	LR133253 TRANSCEIVER Headliner, Rear	$288.92	1
19G229	LR152349	SIREN - ANTI-THEFT ALARM SYSTEM	LR152349 SIREN - ANTI-THEFT ALARM SYSTEM	$218.01	1
13763	LR110282	BRACKET - SUPPORT	LR110282 BRACKET - SUPPORT Front And Rear, Headliner	$23.92	2
14439	LR033377	WIRE - SCANNING MODULE	LR033377 WIRE - SCANNING MODULE Perimeter / Volume Theft System / Headliner	$26.81	1
15607	LR147023	TRANSCEIVER - ANTI THEFT	LR147023 TRANSCEIVER - ANTI THEFT Centre Console, With Engine Immobiliser	$49.49	1
