Family Entertainment System

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Family Entertainment System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR125849 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
4648959 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR154501 UNIT - INFOTAINMENT CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR134881 COVER - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR152524 MODULE - HEADPHONE EMITTER Enquire To Order
Photo Part No Description Price (each) Stock
LR144083 HEADPHONE - WIRELESS Enquire To Order
Photo Part No Description Price (each) Stock
LR161605 UNIT - INFOTAINMENT CONTROL Enquire To Order
LR161606 UNIT - INFOTAINMENT CONTROL Enquire To Order
LR161607 UNIT - INFOTAINMENT CONTROL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR132031 BATTERY - ADDITIONAL Enquire To Order
Photo Part No Description Price (each) Stock
LR161599 CONTROL - AUDIO/VISUAL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
LR156499 SCREEN Enquire To Order
View All

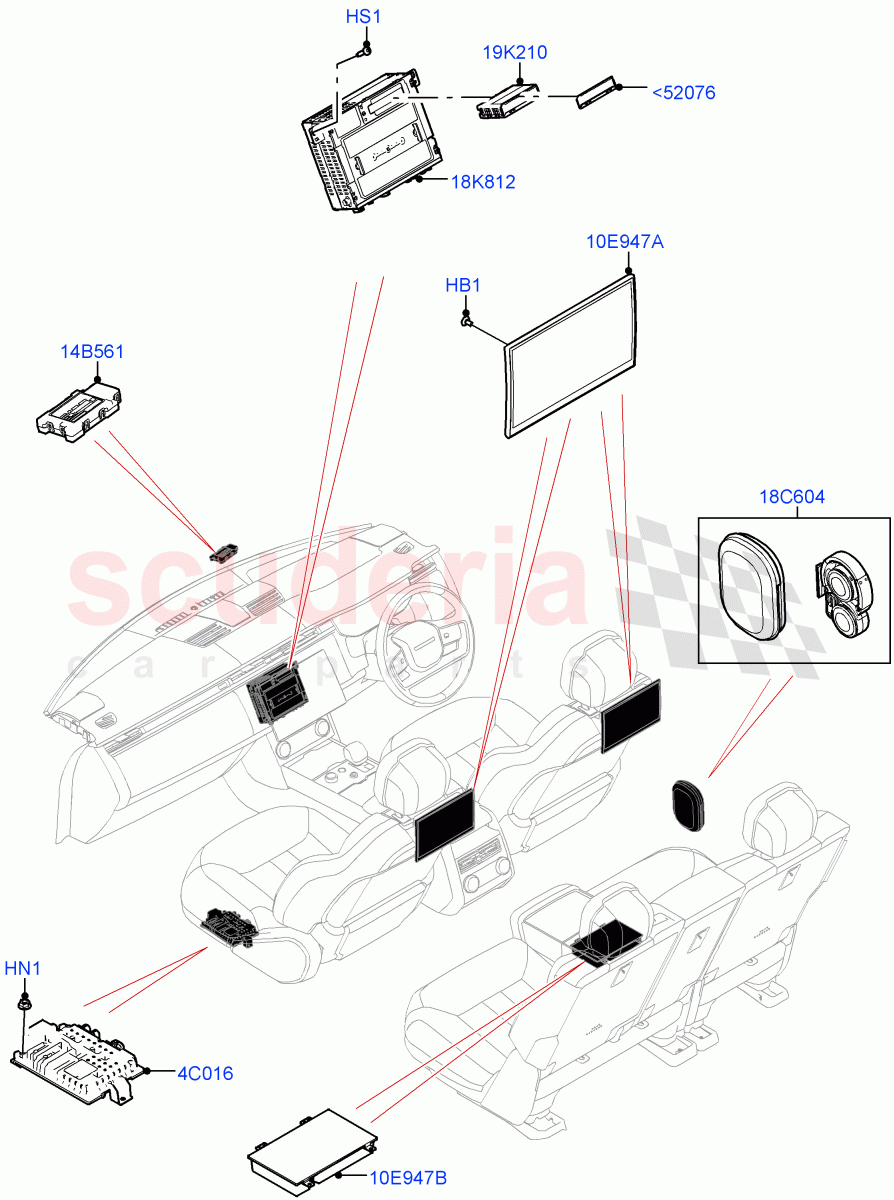

Family Entertainment System of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<52076 LR134881
COVER - BATTERY 		- 1 Enquire
HB1 LR125849
SCREW
Rear Entertainment Scrn - 11.6 Inch / M6 X 1.0 X 12MM, RH/LH, Touch Screen 		- 8 Enquire
HN1 FN106046
NUT - HEX.
RSE 13.3 Inch Screen / Hexagonal Head, M6, Rear Infotainment Control Module 		- 3 Enquire
HS1 4648959
SCREW
Infotainment Head Unit, M6 X 20MM, Torx 		- 2 Enquire
4C016 LR154501
UNIT - INFOTAINMENT CONTROL
Rear Entertainment Scrn - 11.6 Inch / Rear Infotainment Control Module 		- 1 Enquire
10E947A LR161599
CONTROL - AUDIO/VISUAL UNIT
Rear Entertainment Scrn - 11.6 Inch / RH/LH 		- 2 Enquire
10E947B LR156499
SCREEN
Row 2 Smart Device / Located On 2nd Row Seat Armrest 		- 1 Enquire
14B561 LR152524
MODULE - HEADPHONE EMITTER
Rear Entertainment Scrn - 11.6 Inch / Headphone Emitter, Located In The Headliner 		- 1 Enquire
18C604 LR144083
HEADPHONE - WIRELESS
Rear Entertainment Scrn - 11.6 Inch / Located In Rear Door, RH/LH 		- 2 Enquire
18K812 LR161605
UNIT - INFOTAINMENT CONTROL
Analogue Audio Broadcast, TCU Module - ROW, With Signal Flare Warning Bracket 		- 1 Enquire
18K812 LR161606
UNIT - INFOTAINMENT CONTROL
Digital Audio Broadcast, TCU Module - ROW 		- 1 Enquire
18K812 LR161607
UNIT - INFOTAINMENT CONTROL
TCU Module - NAS 		- 1 Enquire
18K812 LR161608
UNIT - INFOTAINMENT CONTROL
TCU Module - China 		- 1 Enquire
18K812 LR161609
UNIT - INFOTAINMENT CONTROL
Analogue Audio Broadcast, Less Signal Flare Warning Bracket, TCU Module - ROW 		- 1 Enquire
19K210 LR132031
BATTERY - ADDITIONAL 		- 1 Enquire
