Electrical Wiring - Chassis

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Electrical Wiring - Chassis

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR142069 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.70 IN STOCK
RYG500190 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
LR122583 SCREW $2.09 To Order
LR122583 SCREW $2.09 To Order
Photo Part No Description Price (each) Stock
LR158242 WIRING - CHASSIS $696.30 To Order
LR158251 WIRING - CHASSIS $696.30 To Order
LR158253 WIRING - CHASSIS $664.26 To Order
...and 25 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR163536 TOWBAR CONTOL MODULE BRACKET $17.61 To Order
Photo Part No Description Price (each) Stock
LR159847 BRACKET - REAR SUSPENSION $24.81 To Order
LR173650 Bracket $24.06 To Order
Photo Part No Description Price (each) Stock
LR159846 BRACKET - REAR SUSPENSION $24.81 To Order
LR159845 BRACKET - REAR SUSPENSION $24.81 To Order
Photo Part No Description Price (each) Stock
LR159841 BRACKET - UPPER CONTROL ARM $14.95 To Order
LR159840 BRACKET - UPPER CONTROL ARM $14.95 To Order
Photo Part No Description Price (each) Stock
LR159839 BRACKET - UPPER CONTROL ARM $14.95 To Order
LR159838 BRACKET - UPPER CONTROL ARM $14.95 To Order
Photo Part No Description Price (each) Stock
LR159837 BRACKET - REAR SUBFRAME $23.93 To Order
LR159835 BRACKET - REAR SUBFRAME $23.93 To Order
Photo Part No Description Price (each) Stock
LR159834 BRACKET - SUBFRAME HARNESS $11.97 To Order
LR159833 BRACKET - SUBFRAME HARNESS $11.97 To Order
Photo Part No Description Price (each) Stock
LR159831 BRACKET - UREA TANK $19.63 To Order
View All

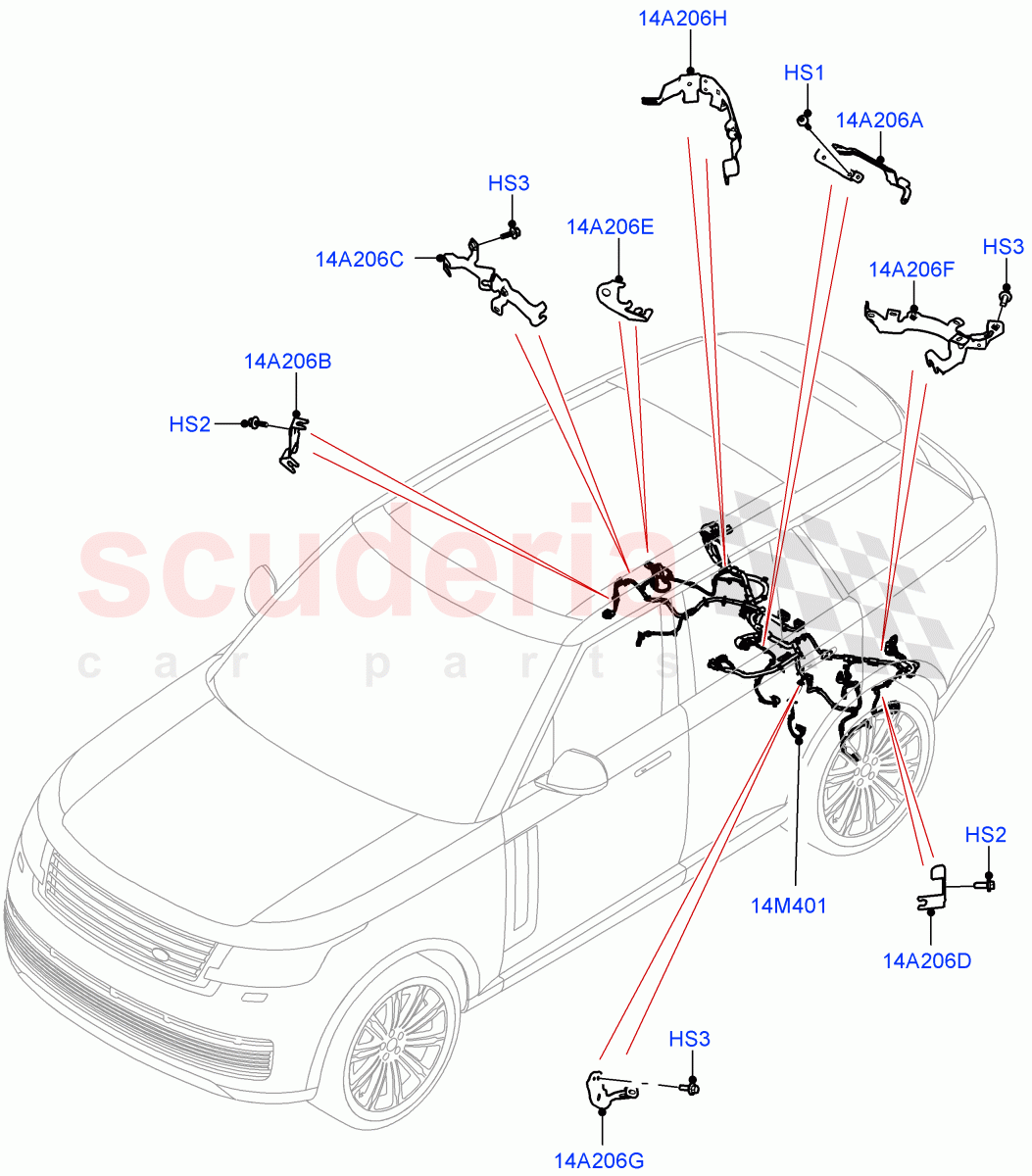

Electrical Wiring - Chassis of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR142069
SCREW
Torque Vectoring By Braking (TVBB) / Electronic Torque Managed Bracket, M6X18 		$0.35 2
HS2 RYG500190
SCREW
Hexagonal Head, Knuckle Bracket, M6 X 16MM
IN STOCK 		$0.70 2
HS2 RYG500190
SCREW
Hexagonal Head, M6 X 16MM, Upper Control Arm Bracket
IN STOCK 		$0.70 1
HS3 LR122583
SCREW
Arm Bracket, Hexagonal Head, M6 X 16 		$2.09 2
HS3 LR122583
SCREW
Hexagonal Head, M6 X 16, Subframe Harness Bracket 		$2.09 1
14A206A LR163536
TOWBAR CONTOL MODULE BRACKET
Torque Vectoring By Braking (TVBB) / Electronic Torque Managed Bracket 		$17.61 1
14A206B LR159847
BRACKET - REAR SUSPENSION
RH, Knuckle Bracket 		$24.81 1
14A206B LR173650
Bracket
LH, Knuckle Bracket 		$24.06 1
14A206C LR159846
BRACKET - REAR SUSPENSION
RH, Arm Bracket 		$24.81 1
14A206C LR159845
BRACKET - REAR SUSPENSION
LH, Arm Bracket 		$24.81 1
14A206D LR159841
BRACKET - UPPER CONTROL ARM
RH, Upper Control Arm Bracket 		$14.95 1
14A206D LR159840
BRACKET - UPPER CONTROL ARM
LH, Upper Control Arm Bracket 		$14.95 1
14A206E LR159839
BRACKET - UPPER CONTROL ARM
RH, Second Upper Control Arm Bracket 		$14.95 1
14A206E LR159838
BRACKET - UPPER CONTROL ARM
LH, Second Upper Control Arm Bracket 		$14.95 1
14A206F LR159837
BRACKET - REAR SUBFRAME
3.0L AJ20P6 Petrol High, Less Emission Tank / RH, Subframe Bracket 		$23.93 1
14A206F LR159835
BRACKET - REAR SUBFRAME
LH, Subframe Bracket 		$23.93 1
14A206G LR159834
BRACKET - SUBFRAME HARNESS
RH, Subframe Harness Bracket 		$11.97 1
14A206G LR159833
BRACKET - SUBFRAME HARNESS
LH, Subframe Harness Bracket 		$11.97 1
14A206H LR159831
BRACKET - UREA TANK
3.0L AJ20D6 Diesel High, With Diesel Exh Fluid Emission Tank / Diesel Urea Tank Bracket 		$19.63 1
14M401 LR158242
WIRING - CHASSIS
4.4 V8 Turbo Petrol (NC10), LHD, Less 3rd Row Rear Seat, Torque Vectoring By Braking (TVBB) 		$696.30 1
14M401 LR158251
WIRING - CHASSIS
4.4 V8 Turbo Petrol (NC10), LHD, Torque Vectoring By Braking (TVBB), With Third Row Power Folding Seat 		$696.30 1
14M401 LR158253
WIRING - CHASSIS
3.0L AJ20P6 Petrol High, LHD, Less 3rd Row Rear Seat, Torque Vectoring By Braking (TVBB) 		$664.26 1
14M401 LR158256
WIRING - CHASSIS
3.0L AJ20P6 Petrol High, LHD, Less 3rd Row Rear Seat, Rear Axle Open Diff w/TVBB 		$418.75 1
14M401 LR158259
WIRING - CHASSIS
3.0L AJ20P6 Petrol High, LHD, Torque Vectoring By Braking (TVBB), With Third Row Power Folding Seat 		$664.26 1
14M401 LR158261
WIRING - CHASSIS
3.0L AJ20P6 Petrol High, LHD, Rear Axle Open Diff w/TVBB, With Third Row Power Folding Seat 		$418.75 1
14M401 LR158263
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Less 3rd Row Rear Seat, Less Emission Tank, Torque Vectoring By Braking (TVBB) 		$642.85 1
14M401 LR158265
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Less 3rd Row Rear Seat, Less Emission Tank, Rear Axle Open Diff w/TVBB 		$397.38 1
14M401 LR164254
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Less 3rd Row Rear Seat, Torque Vectoring By Braking (TVBB), With Diesel Exh Fluid Emission Tank 		$649.85 1
14M401 LR164260
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Less 3rd Row Rear Seat, Rear Axle Open Diff w/TVBB, With Diesel Exh Fluid Emission Tank 		$640.89 1
14M401 LR158267
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Less Emission Tank, Torque Vectoring By Braking (TVBB), With Third Row Power Folding Seat 		$642.85 1
14M401 LR158269
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Less Emission Tank, Rear Axle Open Diff w/TVBB, With Third Row Power Folding Seat 		$397.38 1
14M401 LR164258
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Torque Vectoring By Braking (TVBB), With Diesel Exh Fluid Emission Tank, With Third Row Power Folding Seat 		$836.61 1
14M401 LR164256
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, LHD, Rear Axle Open Diff w/TVBB, With Diesel Exh Fluid Emission Tank, With Third Row Power Folding Seat 		$826.38 1
14M401 LR158243
WIRING - CHASSIS
4.4 V8 Turbo Petrol (NC10), Less 3rd Row Rear Seat, RHD, Torque Vectoring By Braking (TVBB) 		$696.30 1
14M401 LR158252
WIRING - CHASSIS
4.4 V8 Turbo Petrol (NC10), RHD, Torque Vectoring By Braking (TVBB), With Third Row Power Folding Seat 		$696.30 1
14M401 LR158255
WIRING - CHASSIS
3.0L AJ20P6 Petrol High, Less 3rd Row Rear Seat, RHD, Torque Vectoring By Braking (TVBB) 		$664.26 1
14M401 LR158257
WIRING - CHASSIS
3.0L AJ20P6 Petrol High, Less 3rd Row Rear Seat, RHD, Rear Axle Open Diff w/TVBB 		$418.75 1
14M401 LR158260
WIRING - CHASSIS
3.0L AJ20P6 Petrol PHEV, RHD, Torque Vectoring By Braking (TVBB), With Third Row Power Folding Seat 		$664.26 1
14M401 LR158262
WIRING - CHASSIS
3.0L AJ20P6 Petrol High, RHD, Rear Axle Open Diff w/TVBB, With Third Row Power Folding Seat 		$418.75 1
14M401 LR158264
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, Less 3rd Row Rear Seat, Less Emission Tank, RHD, Torque Vectoring By Braking (TVBB) 		$664.26 1
14M401 LR158266
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, Less 3rd Row Rear Seat, Less Emission Tank, RHD, Rear Axle Open Diff w/TVBB 		$418.75 1
14M401 LR164261
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, Less 3rd Row Rear Seat, RHD, Torque Vectoring By Braking (TVBB), With Diesel Exh Fluid Emission Tank 		$651.20 1
14M401 LR164259
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, Less 3rd Row Rear Seat, RHD, Rear Axle Open Diff w/TVBB, With Diesel Exh Fluid Emission Tank 		$640.89 1
14M401 LR158268
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, Less Emission Tank, RHD, Torque Vectoring By Braking (TVBB), With Third Row Power Folding Seat 		$664.26 1
14M401 LR158271
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, Less Emission Tank, RHD, Rear Axle Open Diff w/TVBB, With Third Row Power Folding Seat 		$418.75 1
14M401 LR164257
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, RHD, Torque Vectoring By Braking (TVBB), With Diesel Exh Fluid Emission Tank, With Third Row Power Folding Seat 		$671.80 1
14M401 LR164255
WIRING - CHASSIS
3.0L AJ20D6 Diesel High, RHD, Rear Axle Open Diff w/TVBB, With Diesel Exh Fluid Emission Tank, With Third Row Power Folding Seat 		$661.45 1
