Name: Plugs - Body
Rating: 4.1 (1 reviews)

Plugs - Body of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Plugs - Body

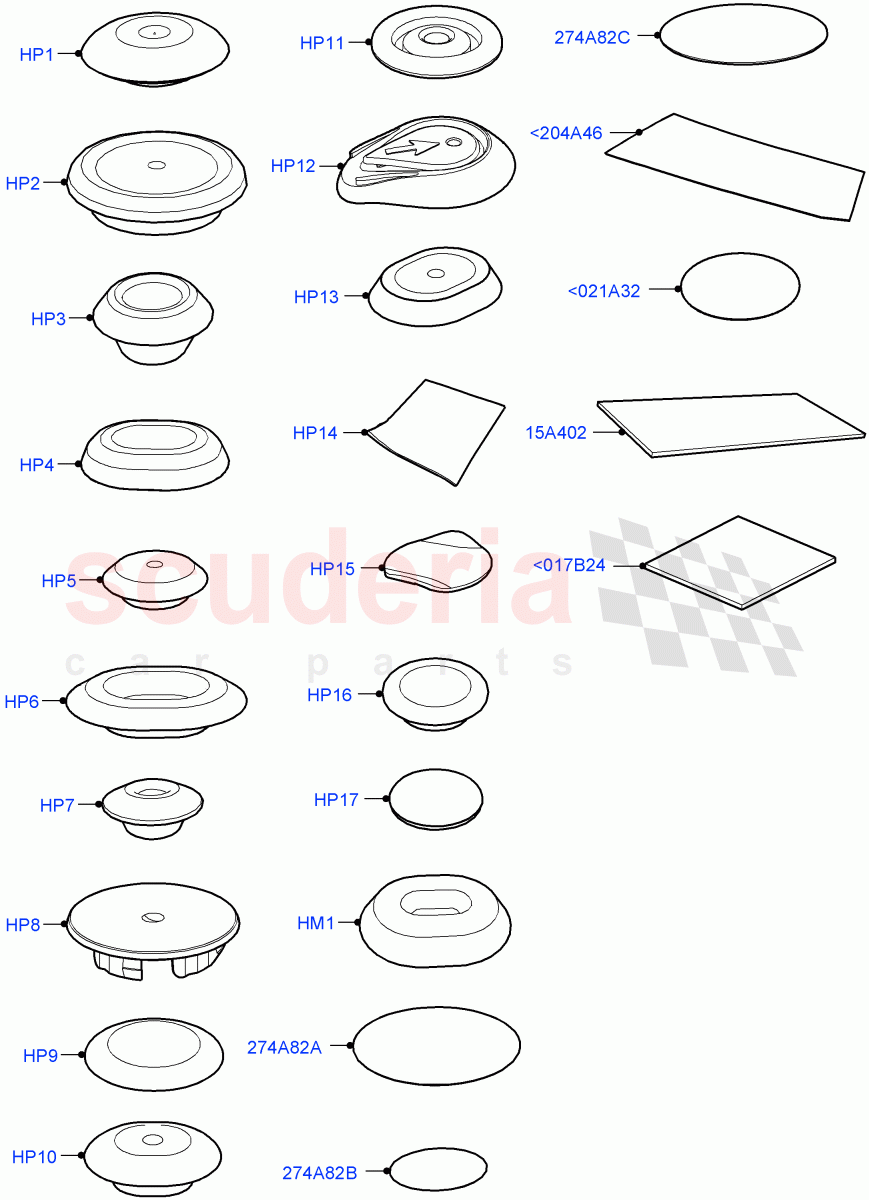

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000806	PLUG - BODY SEALING	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132021	PLUG	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004149	PLUG - BLANKING	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096543	PLUG - BLANKING	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000807	PLUG - BODY SEALING	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000066	PLUG - BLANKING	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000805	PLUG	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002383	PLUG	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043901	PLUG - "A" PILLAR	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001921	PLUG - SPECIAL	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005311	PLUG - BODY SEALING	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005590	PLUG	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB500080	PLUG - BLANKING	$7.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003553	PLUG	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080005	PLUG	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151512	PLUG - BLANKING	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006081	PLUG - BLANKING	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154519	PLUG - BLANKING	$8.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133400	PAD - HEATING	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077375	SEAL - SPECIAL	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	BNP3996	SEAL - COVER	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161825	PATCH - SEALING	$15.87	To Order
	LR161826	PATCH - SEALING	$15.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086056	SEAL - COVER	$0.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR153737	TAPE	$3.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061344	PLUG - BLANKING	$1.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B24	LR077375	SEAL - SPECIAL	LR077375 SEAL - SPECIAL Electric Engine Battery-MHEV / Seal	$2.35	-
<021A32	BNP3996	SEAL - COVER	BNP3996 SEAL - COVER 30MM	$2.89	-
<204A46	LR161825	PATCH - SEALING	LR161825 PATCH - SEALING RH, 395mm x 110mm, Rear Fender	$15.87	1
<204A46	LR161826	PATCH - SEALING	LR161826 PATCH - SEALING LH, 395mm x 110mm, Rear Fender	$15.87	1
HM1	LR000806	PLUG - BODY SEALING	LR000806 PLUG - BODY SEALING 12 X 18MM	$3.23	2
HP1	LR132021	PLUG	LR132021 PLUG 19mm x 0.7 - 2.5mm	$0.93	-
HP2	LR004149	PLUG - BLANKING	LR004149 PLUG - BLANKING 30 X 1MM, Rubber	$3.03	-
HP3	LR096543	PLUG - BLANKING	LR096543 PLUG - BLANKING 16-20 x 0.75-4	$2.98	-
HP4	LR000807	PLUG - BODY SEALING	LR000807 PLUG - BODY SEALING 16 X 22.5 X 0.5MM	$0.58	-
HP5	LR000066	PLUG - BLANKING	LR000066 PLUG - BLANKING 16 X 0.6MM	$0.53	-
HP6	LR000805	PLUG	LR000805 PLUG 19 X 25, Oval	$0.27	-
HP7	LR002383	PLUG	LR002383 PLUG 12 x 1.5 - 3, Rubber	$0.76	2
HP8	LR043901	PLUG - "A" PILLAR	LR043901 PLUG - "A" PILLAR Electric Engine Battery-MHEV, Less 3rd Row Rear Seat, Long Wheelbase, RHD / 40 X 1.1 - 4.48	$2.16	1
HP9	LR001921	PLUG - SPECIAL	LR001921 PLUG - SPECIAL Electric Engine Battery-MHEV, Less 3rd Row Rear Seat, Long Wheelbase, RHD / 40 X 0.7-3, Plastic	$1.94	1
HP10	LR005311	PLUG - BODY SEALING IN STOCK	LR005311 PLUG - BODY SEALING Less 3rd Row Rear Seat, Less Electric Engine Battery, Long Wheelbase, RHD / 19 X 25, Plastic IN STOCK	$2.08	1
HP11	LR005590	PLUG	LR005590 PLUG 19 x 0.7MM	$3.53	-
HP12	AYB500080	PLUG - BLANKING	AYB500080 PLUG - BLANKING Approx. 30 x 36 x 9, Drain Plug	$7.59	4
HP13	LR003553	PLUG	LR003553 PLUG 19.5 X 24.5MM	$3.23	2
HP14	LR080005	PLUG	LR080005 PLUG 35mm x 35mm	$1.57	-
HP15	LR151512	PLUG - BLANKING	LR151512 PLUG - BLANKING	$1.89	-
HP16	LR006081	PLUG - BLANKING	LR006081 PLUG - BLANKING With Air Conditioning - Front/Rear / 32 X 0.9MM, Plastic	$0.54	2
HP17	LR154519	PLUG - BLANKING	LR154519 PLUG - BLANKING	$8.40	-
15A402	LR133400	PAD - HEATING	LR133400 PAD - HEATING 85mm x 40mm	$2.36	2
274A82A	LR086056	SEAL - COVER IN STOCK	LR086056 SEAL - COVER IN STOCK	$0.65	-
274A82B	LR153737	TAPE	LR153737 TAPE 35MM	$3.38	-
274A82C	LR061344	PLUG - BLANKING	LR061344 PLUG - BLANKING 50MM, Blank,	$1.55	-
