Radiator Grille And Front Bumper (Less Sv Model Spec)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Radiator Grille And Front Bumper (Less SV Model Spec)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR154538 BOLT AND WASHER - HEX.HEAD $1.19 To Order
Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD $2.30 IN STOCK
Photo Part No Description Price (each) Stock
LR172465 Bolt $3.44 To Order
Photo Part No Description Price (each) Stock
RYG500910 BOLT $0.50 To Order
Photo Part No Description Price (each) Stock
LR154535 BOLT AND WASHER - HEX.HEAD $1.31 To Order
Photo Part No Description Price (each) Stock
LR018173 CLIP - RETAINING $3.08 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500140 RIVET $3.01 To Order
Photo Part No Description Price (each) Stock
LR095419 NUT $1.86 To Order
LR095419 NUT $1.86 To Order
Photo Part No Description Price (each) Stock
LR045194 NUT $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION $0.59 IN STOCK
Photo Part No Description Price (each) Stock
LR033052 SCREW AND WASHER - SELF-TAPPING $2.15 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
DYP000040 SCREW $1.18 IN STOCK
DYP000040 SCREW $1.18 IN STOCK
Photo Part No Description Price (each) Stock
LR150986 PLATE - BLANKING $72.44 To Order
LR150987 PLATE - BLANKING $72.44 To Order
Photo Part No Description Price (each) Stock
LR153209 GRILLE - RADIATOR $309.01 To Order
LR153210 GRILLE - RADIATOR $415.06 To Order
LR153211 GRILLE - RADIATOR $415.06 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR150545 ARMATURE $358.28 To Order
LR150533 ARMATURE $378.16 To Order
Photo Part No Description Price (each) Stock
LR164613 INSERT - BUMPER $9.27 To Order
LR164615 INSERT - BUMPER $9.13 To Order
Photo Part No Description Price (each) Stock
LR150981 KIT - LICENCE PLATE $40.02 To Order
LR157975 BRACKET - LICENSE PLATE $41.47 To Order
Photo Part No Description Price (each) Stock
LR150979 BUMPER SUPPORT BRACKET $95.15 To Order
Photo Part No Description Price (each) Stock
LR157958 CAP - POWERWASH JET $42.21 To Order
LR157959 CAP - POWERWASH JET $42.21 To Order
Photo Part No Description Price (each) Stock
LR150999 BRACKET $16.01 To Order
LR150995 BRACKET - BUMPER $16.02 To Order
Photo Part No Description Price (each) Stock
LR157962 BUMPER - FRONT $822.67 To Order
LR157963 BUMPER - FRONT $725.50 To Order
Photo Part No Description Price (each) Stock
LR006719 RETAINER - NUT $1.81 To Order
Photo Part No Description Price (each) Stock
LR157964 GRILLE - BUMPER $279.45 To Order
Photo Part No Description Price (each) Stock
LR150993 POWERWASH JET - BRACKET $16.48 To Order
LR150994 POWERWASH JET - BRACKET $17.30 To Order
Photo Part No Description Price (each) Stock
LR150978 COVER - BUMPER $92.09 To Order
LR150977 COVER - BUMPER $92.09 To Order
Photo Part No Description Price (each) Stock
LR157968 FINISHER - BUMPER $83.97 To Order
LR157969 FINISHER - BUMPER $102.84 To Order
LR157970 FINISHER - BUMPER $159.49 To Order
Photo Part No Description Price (each) Stock
LR157965 FINISHER - BUMPER $83.97 To Order
LR157966 FINISHER - BUMPER $112.78 To Order
LR157967 FINISHER - BUMPER $112.78 IN STOCK
Photo Part No Description Price (each) Stock
LR153909 DEFLECTOR - AIR $33.73 To Order
Photo Part No Description Price (each) Stock
LR186631 DEFLECTOR - AIR $50.64 IN STOCK
LR151002 DEFLECTOR - AIR $41.56 To Order
Photo Part No Description Price (each) Stock
LR165115 CAP - BUMPER END $106.16 To Order
LR159927 DEFLECTOR - AIR $91.36 To Order
Photo Part No Description Price (each) Stock
LR150983 COVER - TOW HOOK $94.05 To Order
LR150984 COVER - TOW HOOK $295.09 To Order
Photo Part No Description Price (each) Stock
LR150982 FRONT BUMPER MOUNTING BRACKET $76.46 IN STOCK
View All

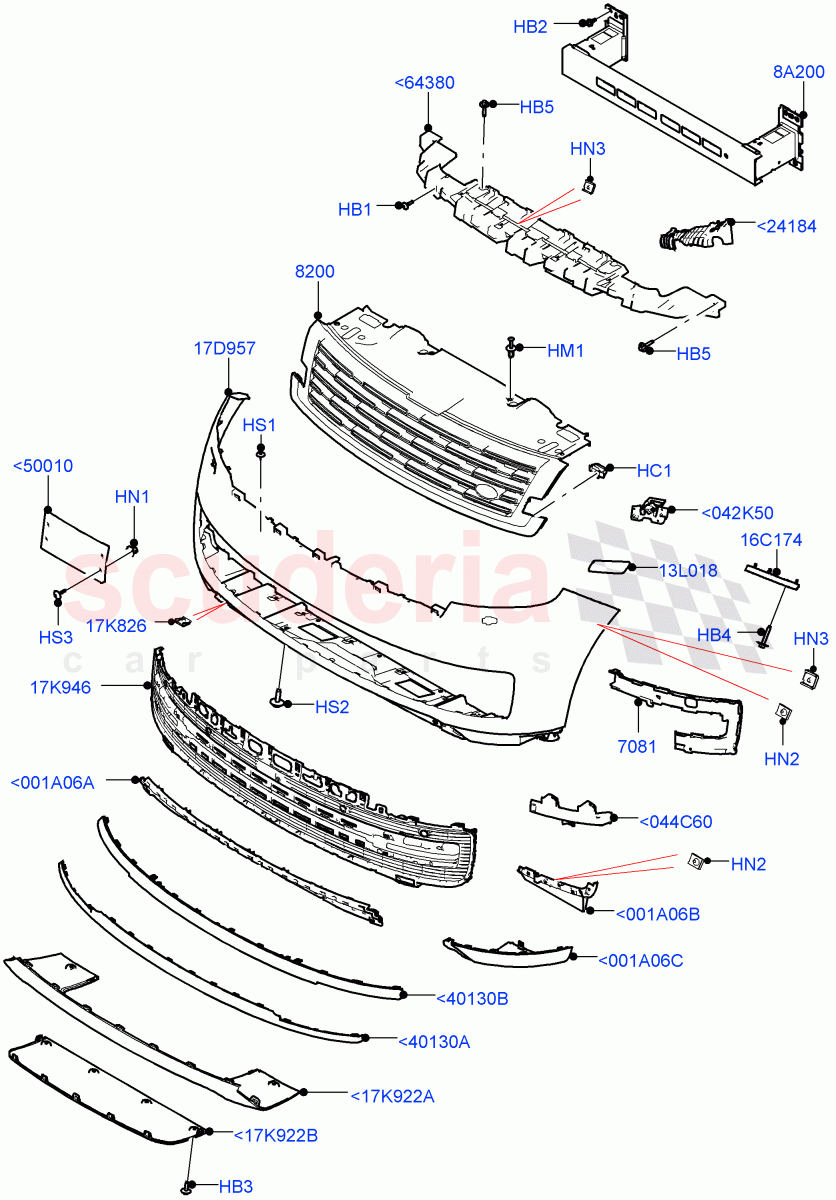

Radiator Grille And Front Bumper (Less SV Model Spec) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922A LR150983
COVER - TOW HOOK
Tow Eye Cover - Atlas / Lower Front 		$94.05 1
<17K922A LR150984
COVER - TOW HOOK
Tow Eye Cover - Graphite Atlas / Lower Front 		$295.09 1
<17K922B LR150982
FRONT BUMPER MOUNTING BRACKET
Lower Rear
IN STOCK 		$76.46 1
<001A06A LR153909
DEFLECTOR - AIR
Surround Camera Sys+Water Wade Aid / Centre 		$33.73 1
<001A06B LR186631
DEFLECTOR - AIR
Surround Camera Sys+Water Wade Aid / LH
IN STOCK 		$50.64 1
<001A06B LR151002
DEFLECTOR - AIR
Rear View Camera-Fixed / RH 		$41.56 1
<001A06C LR165115
CAP - BUMPER END
LH, Primed 		$106.16 1
<001A06C LR159927
DEFLECTOR - AIR
RH, Primed 		$91.36 1
<042K50 LR150993
POWERWASH JET - BRACKET
Rear View Camera-Fixed / RH 		$16.48 1
<042K50 LR150994
POWERWASH JET - BRACKET
Rear View Camera-Fixed / LH 		$17.30 1
<044C60 LR150978
COVER - BUMPER
Less Front Fog Lamps / LH, Blanking 		$92.09 1
<044C60 LR150977
COVER - BUMPER
Less Front Fog Lamps / RH, Blanking 		$92.09 1
<24184 LR164613
INSERT - BUMPER
LH 		$9.27 1
<24184 LR164615
INSERT - BUMPER
RH 		$9.13 1
<40130A LR157968
FINISHER - BUMPER
Bumpers-Atlas 		$83.97 1
<40130A LR157969
FINISHER - BUMPER
Bumpers-Nickel Atlas 		$102.84 1
<40130A LR157970
FINISHER - BUMPER
Bumpers-Graphite Atlas 		$159.49 1
<40130B LR157965
FINISHER - BUMPER
Bumpers-Atlas 		$83.97 1
<40130B LR157966
FINISHER - BUMPER
Bumpers-Nickel Atlas 		$112.78 1
<40130B LR157967
FINISHER - BUMPER
Bumpers-Graphite Atlas
IN STOCK 		$112.78 1
<50010 LR150981
KIT - LICENCE PLATE
Front Number Plate Plinth NAS 		$40.02 1
<50010 LR157975
BRACKET - LICENSE PLATE
Front Number Plate Plinth-China 		$41.47 1
<64380 LR150979
BUMPER SUPPORT BRACKET
Moulding 		$95.15 1
HB1 LR154538
BOLT AND WASHER - HEX.HEAD
M6x28, Support 		$1.19 2
HB2 LR037935
BOLT AND WASHER - HEX.HEAD
Armature, Bumper, Hexagonal Head, M10 X 25MM
IN STOCK 		$2.30 6
HB3 LR172465
Bolt
M6X18, Support 		$3.44 4
HB4 RYG500910
BOLT
Bolt And Washer, Hexagonal Head, M6 x 35MM, Support 		$0.50 6
HB5 LR154535
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6X30, Support 		$1.31 4
HC1 LR018173
CLIP - RETAINING
Front Grille
IN STOCK 		$3.08 5
HM1 RYQ500140
RIVET
8 X 20MM 		$3.01 4
HN1 LR095419
NUT
Front Number Plate Plinth NAS / M5 		$1.86 4
HN1 LR095419
NUT
Front Number Plate Plinth-China / M5 		$1.86 5
HN2 LR045194
NUT
Plastic
IN STOCK 		$2.55 12
HN3 LR165498
NUT - EXPANSION
Plastic
IN STOCK 		$0.59 12
HS1 LR033052
SCREW AND WASHER - SELF-TAPPING
5 x 20MM, Support 		$2.15 4
HS2 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM, Support
IN STOCK 		$0.92 5
HS3 DYP000040
SCREW
Front Number Plate Plinth NAS / M5
IN STOCK 		$1.18 4
HS3 DYP000040
SCREW
Front Number Plate Plinth-China / M5
IN STOCK 		$1.18 5
8A200 LR150545
ARMATURE
Less Head Impact Crash Criteria 		$358.28 1
8A200 LR150533
ARMATURE
With Head Impact Crash Criteria 		$378.16 1
13L018 LR157958
CAP - POWERWASH JET
LH, Primed 		$42.21 1
13L018 LR157959
CAP - POWERWASH JET
RH, Primed 		$42.21 1
16C174 LR150999
BRACKET
Rear View Camera-Fixed / LH 		$16.01 1
16C174 LR150995
BRACKET - BUMPER
Rear View Camera-Fixed / RH 		$16.02 1
17D957 LR157962
BUMPER - FRONT
Rear View Camera-Fixed / Please Refer To EPC News Before Ordering, Primed 		$822.67 1
17D957 LR157963
BUMPER - FRONT
Surround Camera Sys+Water Wade Aid / Please Refer To EPC News Before Ordering, Primed 		$725.50 1
17K826 LR006719
RETAINER - NUT
Nut "U" Spring, 		$1.81 6
17K946 LR157964
GRILLE - BUMPER
Bumpers-Graphite Atlas / Centre 		$279.45 1
7081 LR150986
PLATE - BLANKING
Less Engine Cooling System / RH 		$72.44 1
7081 LR150987
PLATE - BLANKING
Less Engine Cooling System / LH 		$72.44 1
8200 LR153209
GRILLE - RADIATOR
Grille-Nkl Atl Msh/Nkl Atl Igt / To: NA000675 		$309.01 1
8200 LR153210
GRILLE - RADIATOR
Grille-Atlas Mesh/Atlas Ingot / To: NA000675 		$415.06 1
8200 LR153211
GRILLE - RADIATOR
Front Grille - Graphite Atlas / To: NA000675 		$415.06 1
8200 LR173772
GRILLE - RADIATOR
Grille-Nkl Atl Msh/Nkl Atl Igt / From: NA000676 		$407.98 1
8200 LR173773
GRILLE - RADIATOR
Grille-Atlas Mesh/Atlas Ingot / From: NA000676 		$407.98 1
8200 LR173774
GRILLE - RADIATOR
Front Grille - Graphite Atlas / From: NA000676 		$391.15 1
