Floor Pan - Centre And Rear

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Floor Pan - Centre And Rear

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR106431 BOLT $2.54 To Order
Photo Part No Description Price (each) Stock
LR078389 BOLT - FLANGED HEX. $3.31 To Order
Photo Part No Description Price (each) Stock
LR034227 NUT - FLANGED $6.09 IN STOCK
Photo Part No Description Price (each) Stock
DYH500010 NUT $3.47 IN STOCK
DYH500010 NUT $3.47 IN STOCK
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR033007 STUD - RIVET - FRONT END $1.66 To Order
Photo Part No Description Price (each) Stock
LR088324 STUD - RIVET - FRONT END $1.34 To Order
Photo Part No Description Price (each) Stock
LR153119 GUSSET - MEMBER - FLOOR SIDE $448.61 To Order
LR164969 GUSSET - MEMBER - FLOOR SIDE $222.70 To Order
Photo Part No Description Price (each) Stock
LR163969 PANEL - WHEELHOUSE - INNER $281.87 To Order
LR163970 PANEL - WHEELHOUSE - INNER $281.87 To Order
Photo Part No Description Price (each) Stock
LR153112 MEMBER - SPARE WHEEL CARRIER SUPPT $66.05 To Order
LR153116 Member - Floor Side $59.74 To Order
Photo Part No Description Price (each) Stock
LR163909 MEMBER - FLOOR SIDE $811.02 To Order
LR163912 MEMBER - FLOOR SIDE $811.02 To Order
Photo Part No Description Price (each) Stock
LR153091 GUSSET - MEMBER - FLOOR SIDE $43.91 To Order
LR153008 CLIP - SPECIAL $22.08 To Order
Photo Part No Description Price (each) Stock
LR168302 MEMBER - SIDE FLOOR $116.33 To Order
LR168034 PANEL - FLOOR SIDE $606.94 To Order
Photo Part No Description Price (each) Stock
LR153092 MEMBER - FLOOR CROSS SUPPT. - INNER $148.43 To Order
Photo Part No Description Price (each) Stock
LR153123 CROSSMEMBER - REAR FLOOR $340.95 To Order
Photo Part No Description Price (each) Stock
LR154683 Reinforcement - Rear Crossmember $91.32 To Order
LR154682 Reinforcement - Rear Crossmember $73.87 To Order
Photo Part No Description Price (each) Stock
LR152111 INSULATOR - QUARTER PANEL $8.28 To Order
LR152112 INSULATOR - QUARTER PANEL $8.28 To Order
Photo Part No Description Price (each) Stock
LR153114 PAN - FLOOR - REAR $602.94 To Order
Photo Part No Description Price (each) Stock
LR164017 LOWER BACK PANEL OUTER ASSEMBLY $301.06 To Order
Photo Part No Description Price (each) Stock
LR155087 BRACKET - REAR FLOOR PAN $4.97 To Order
LR155088 BRACKET - REAR FLOOR PAN $4.82 To Order
Photo Part No Description Price (each) Stock
LR154680 EXTENSION - REAR FLOOR PAN $89.74 To Order
LR154679 EXTENSION - REAR FLOOR PAN $89.74 To Order
Photo Part No Description Price (each) Stock
LR153524 COVERING - PROTECTIVE $37.10 To Order
LR153521 Covering - Protective $33.36 To Order
Photo Part No Description Price (each) Stock
LR173021 BRACE - REAR SUSPENSION $76.75 To Order
Photo Part No Description Price (each) Stock
LR173022 BRACE - REAR SUSPENSION $76.75 To Order
Photo Part No Description Price (each) Stock
LR173023 BRACE - REAR FLOOR $37.21 To Order
Photo Part No Description Price (each) Stock
LR154698 MEMBER - FLOOR SIDE $718.60 To Order
LR154699 MEMBER - FLOOR SIDE $718.60 To Order
Photo Part No Description Price (each) Stock
LR153113 REINF - LOWER TRIM MOUNTING $92.71 To Order
Photo Part No Description Price (each) Stock
LR154684 REINFORCEMENT - REAR FLOOR PAN $123.60 To Order
Photo Part No Description Price (each) Stock
LR167860 REINFORCEMENT - REAR FLOOR PAN $29.40 To Order
LR167861 REINFORCEMENT - REAR FLOOR PAN $29.40 To Order
Photo Part No Description Price (each) Stock
LR153122 REINFORCEMENT - REAR FLOOR PAN $144.21 To Order
Photo Part No Description Price (each) Stock
LR153138 REINFORCEMENT - REAR SEAT SUPPORT $74.80 To Order
Photo Part No Description Price (each) Stock
LR167012 PANEL - BODY REAR $688.65 To Order
Photo Part No Description Price (each) Stock
LR163920 PAN - FLOOR - REAR $443.36 To Order
Photo Part No Description Price (each) Stock
LR163918 MEMBER - FLOOR SIDE $606.94 To Order
LR163919 MEMBER - FLOOR SIDE $606.94 To Order
Photo Part No Description Price (each) Stock
LR154643 PANEL - FLOOR SIDE $97.11 To Order
LR154644 STUD PLATE $97.11 To Order
View All

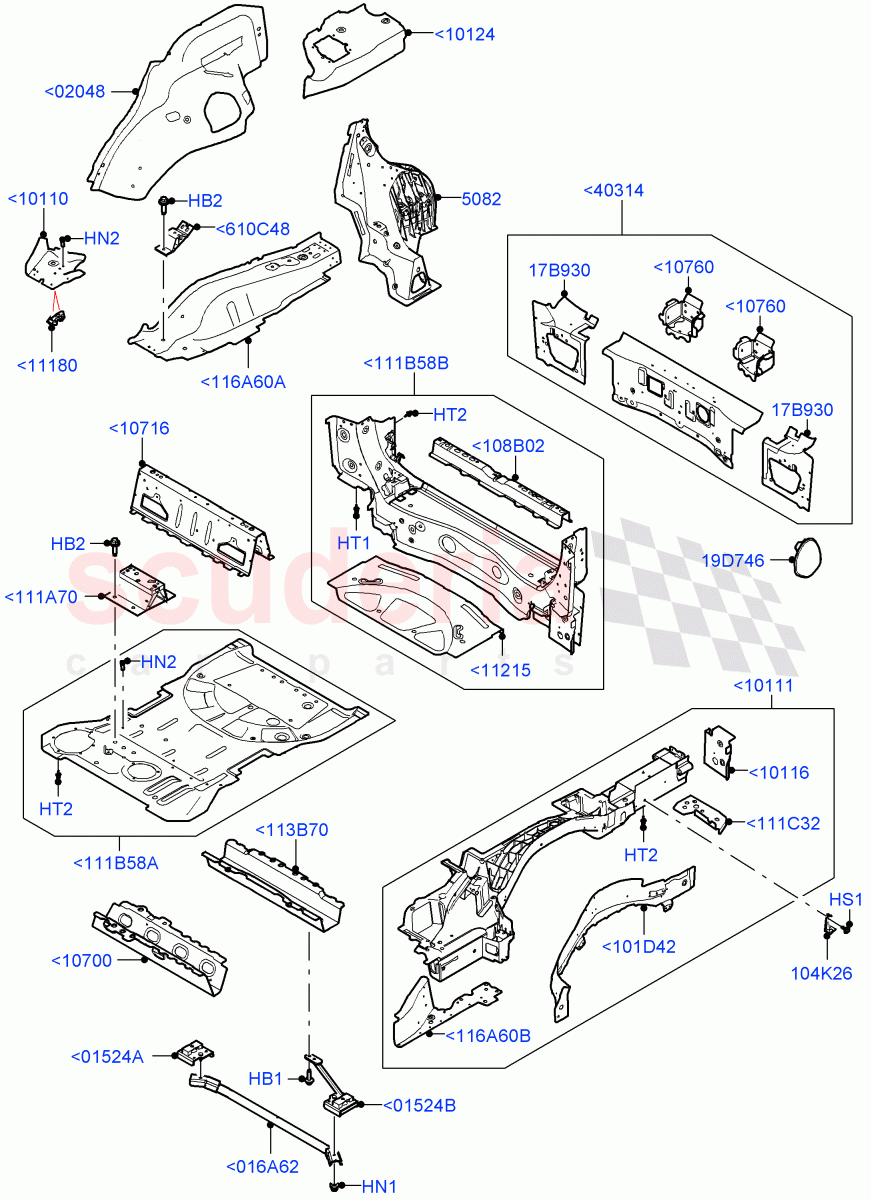

Floor Pan - Centre And Rear of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<016A62 LR173023
BRACE - REAR FLOOR 		$37.21 1
<101D42 LR154698
MEMBER - FLOOR SIDE
RH 		$718.60 1
<101D42 LR154699
MEMBER - FLOOR SIDE
LH 		$718.60 1
<108B02 LR153113
REINF - LOWER TRIM MOUNTING
Category A, Upper Rear 		$92.71 1
<111A70 LR154684
REINFORCEMENT - REAR FLOOR PAN
Less 3rd Row Rear Seat / RH, Single 		$123.60 1
<111B58A LR167012
PANEL - BODY REAR
Category A, Floor 		$688.65 1
<111B58B LR163920
PAN - FLOOR - REAR
Category A, Rear 		$443.36 1
<111C32 LR167860
REINFORCEMENT - REAR FLOOR PAN
RH 		$29.40 1
<111C32 LR167861
REINFORCEMENT - REAR FLOOR PAN
LH 		$29.40 1
<113B70 LR153122
REINFORCEMENT - REAR FLOOR PAN
Category A, Lower 		$144.21 1
<116A60A LR163918
MEMBER - FLOOR SIDE
RH 		$606.94 1
<116A60A LR163919
MEMBER - FLOOR SIDE
LH 		$606.94 1
<116A60B LR154643
PANEL - FLOOR SIDE
RH 		$97.11 1
<116A60B LR154644
STUD PLATE
LH 		$97.11 1
<610C48 LR153138
REINFORCEMENT - REAR SEAT SUPPORT
Less 3rd Row Rear Seat / RH/LH 		$74.80 2
<01524A LR173021
BRACE - REAR SUSPENSION
RH 		$76.75 1
<01524B LR173022
BRACE - REAR SUSPENSION
LH 		$76.75 1
<02048 LR163969
PANEL - WHEELHOUSE - INNER
RH, Category A 		$281.87 1
<02048 LR163970
PANEL - WHEELHOUSE - INNER
LH, Category A 		$281.87 1
<10110 LR153112
MEMBER - SPARE WHEEL CARRIER SUPPT
RH, Category A 		$66.05 1
<10110 LR153116
Member - Floor Side
LH, Category A 		$59.74 1
<10111 LR163909
MEMBER - FLOOR SIDE
RH, Category A 		$811.02 1
<10111 LR163912
MEMBER - FLOOR SIDE
LH, Category A 		$811.02 1
<10116 LR153091
GUSSET - MEMBER - FLOOR SIDE
RH, Category A 		$43.91 1
<10116 LR153008
CLIP - SPECIAL
LH, Category A 		$22.08 1
<10124 LR168302
MEMBER - SIDE FLOOR
RH, Category A 		$116.33 1
<10124 LR168034
PANEL - FLOOR SIDE
LH, Category A 		$606.94 1
<10700 LR153092
MEMBER - FLOOR CROSS SUPPT. - INNER
Category A, Front 		$148.43 1
<10716 LR153123
CROSSMEMBER - REAR FLOOR 		$340.95 1
<10760 LR154683
Reinforcement - Rear Crossmember
RH 		$91.32 1
<10760 LR154682
Reinforcement - Rear Crossmember
LH 		$73.87 1
<11180 LR152111
INSULATOR - QUARTER PANEL
RH 		$8.28 1
<11180 LR152112
INSULATOR - QUARTER PANEL
LH 		$8.28 1
<11215 LR153114
PAN - FLOOR - REAR
Category A, Rear 		$602.94 1
<40314 LR164017
LOWER BACK PANEL OUTER ASSEMBLY
Rear 		$301.06 1
HB1 LR106431
BOLT
LH, Brace, M10X36, Single 		$2.54 1
HB2 LR078389
BOLT - FLANGED HEX.
Less 3rd Row Rear Seat / Hexagonal Head, M12 x 40MM 		$3.31 -
HN1 LR034227
NUT - FLANGED
Brace, M10
IN STOCK 		$6.09 2
HN2 DYH500010
NUT
Floor, M6, Panel
IN STOCK 		$3.47 7
HN2 DYH500010
NUT
M6, Side
IN STOCK 		$3.47 6
HS1 LR006025
BOLT
Bolt And Washer, Bracket, M6 X 15 Hex
IN STOCK 		$1.32 2
HT1 LR033007
STUD - RIVET - FRONT END
M6 x 15MM 		$1.66 -
HT2 LR088324
STUD - RIVET - FRONT END
M6 x 15MM, Rivet 		$1.34 -
17B930 LR154680
EXTENSION - REAR FLOOR PAN
RH 		$89.74 1
17B930 LR154679
EXTENSION - REAR FLOOR PAN
LH 		$89.74 1
19D746 LR153524
COVERING - PROTECTIVE
With Air Conditioning - Front/Rear / LH 		$37.10 1
19D746 LR153521
Covering - Protective
Premium Air Conditioning-Front/Rear / LH 		$33.36 1
104K26 LR155087
BRACKET - REAR FLOOR PAN
RH, Brake Hose 		$4.97 1
104K26 LR155088
BRACKET - REAR FLOOR PAN
LH, Brake Hose 		$4.82 1
5082 LR153119
GUSSET - MEMBER - FLOOR SIDE
RH 		$448.61 1
5082 LR164969
GUSSET - MEMBER - FLOOR SIDE
LH 		$222.70 1
