Name: Rear Doors, Hinges & Weatherstrips (Door And Fixings)
Rating: 4.6 (1 reviews)

Rear Doors, Hinges & Weatherstrips (Door And Fixings) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Doors, Hinges & Weatherstrips (Door And Fixings)

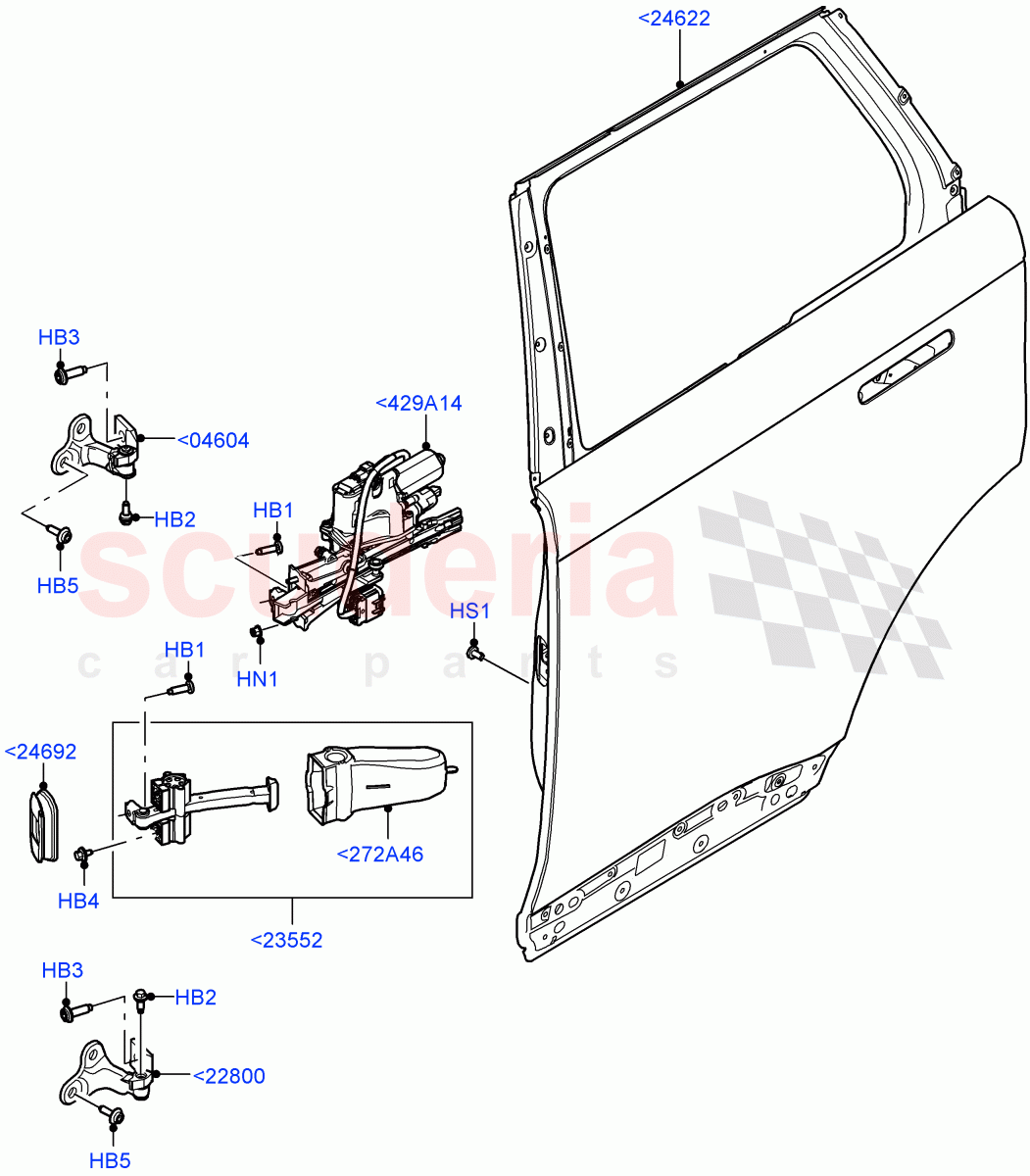

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR156862	BOLT	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156861	BOLT	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155060	BOLT	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155112	BOLT AND WASHER - HEX.HEAD	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025399	BOLT	$1.92	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	QYP500110	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157459	Hinge	$97.05	To Order
	LR157458	HINGE	$107.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157479	HINGE - DOOR	$115.46	To Order
	LR157513	Hinge	$102.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151659	CHECK - DOOR	$57.75	To Order
	LR151715	CHECK - DOOR	$63.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159300	DOOR - REAR RH	$1,526.18	To Order
	LR159303	DOOR - REAR RH	$1,621.59	To Order
	LR159301	DOOR - REAR - LESS HINGES LH	$1,526.18	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR151807	SEAL - DOOR CHECK	$44.02	To Order
	LR151810	SEAL - DOOR CHECK	$44.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172385	Cover	$21.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154177	MOTOR	$304.16	To Order
	LR154176	MOTOR	$304.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<272A46	LR172385	Cover	LR172385 Cover Less Side Door Power / RH/LH	$21.02	2
<429A14	LR154177	MOTOR	LR154177 MOTOR Soft Dr Close w/Pwr Rr Opn/Cls / LH	$304.16	1
<429A14	LR154176	MOTOR	LR154176 MOTOR Soft Dr Close w/Pwr Rr Opn/Cls / RH	$304.16	1
<04604	LR157459	Hinge	LR157459 Hinge LH, Upper	$97.05	1
<04604	LR157458	HINGE	LR157458 HINGE RH, Upper	$107.28	1
<22800	LR157479	HINGE - DOOR	LR157479 HINGE - DOOR RH, Lower	$115.46	1
<22800	LR157513	Hinge	LR157513 Hinge LH, Lower	$102.39	1
<23552	LR151659	CHECK - DOOR	LR151659 CHECK - DOOR Less Side Door Power, Standard Wheelbase / RH/LH	$57.75	2
<23552	LR151715	CHECK - DOOR	LR151715 CHECK - DOOR Less Side Door Power, Long Wheelbase / RH/LH	$63.77	2
<24622	LR159300	DOOR - REAR RH	LR159300 DOOR - REAR RH Standard Wheelbase / RH, Category B	$1,526.18	1
<24622	LR159303	DOOR - REAR RH	LR159303 DOOR - REAR RH Long Wheelbase / RH, Category B	$1,621.59	1
<24622	LR159301	DOOR - REAR - LESS HINGES LH	LR159301 DOOR - REAR - LESS HINGES LH Standard Wheelbase / LH, Category B	$1,526.18	1
<24622	LR159304	DOOR - REAR - LESS HINGES LH	LR159304 DOOR - REAR - LESS HINGES LH Long Wheelbase / LH, Category B	$1,621.59	1
<24692	LR151807	SEAL - DOOR CHECK	LR151807 SEAL - DOOR CHECK RH	$44.02	1
<24692	LR151810	SEAL - DOOR CHECK	LR151810 SEAL - DOOR CHECK LH	$44.02	1
HB1	LR156862	BOLT	LR156862 BOLT Door Check, M8 X 25MM	$1.40	2
HB2	LR156861	BOLT	LR156861 BOLT Door Hinge, Hexagonal Head, M8 X 15MM	$0.92	4
HB3	LR155060	BOLT	LR155060 BOLT Door Hinge, M10 X 28MM	$1.67	4
HB4	LR155112	BOLT AND WASHER - HEX.HEAD	LR155112 BOLT AND WASHER - HEX.HEAD Soft Door Close / Door Check, M6 x 12MM	$1.05	4
HB5	LR025399	BOLT	LR025399 BOLT Door Hinge, M8 X 25MM	$1.92	8
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Soft Dr Close w/Pwr Rr Opn/Cls / Door Check, Hexagonal Head, M6 IN STOCK	$0.69	4
HS1	QYP500110	SCREW	QYP500110 SCREW Door, M8 X 16MM, Torx	$0.59	2
