Side Panels - Outer (Standard Wheelbase) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Side Panels - Outer (Standard Wheelbase)

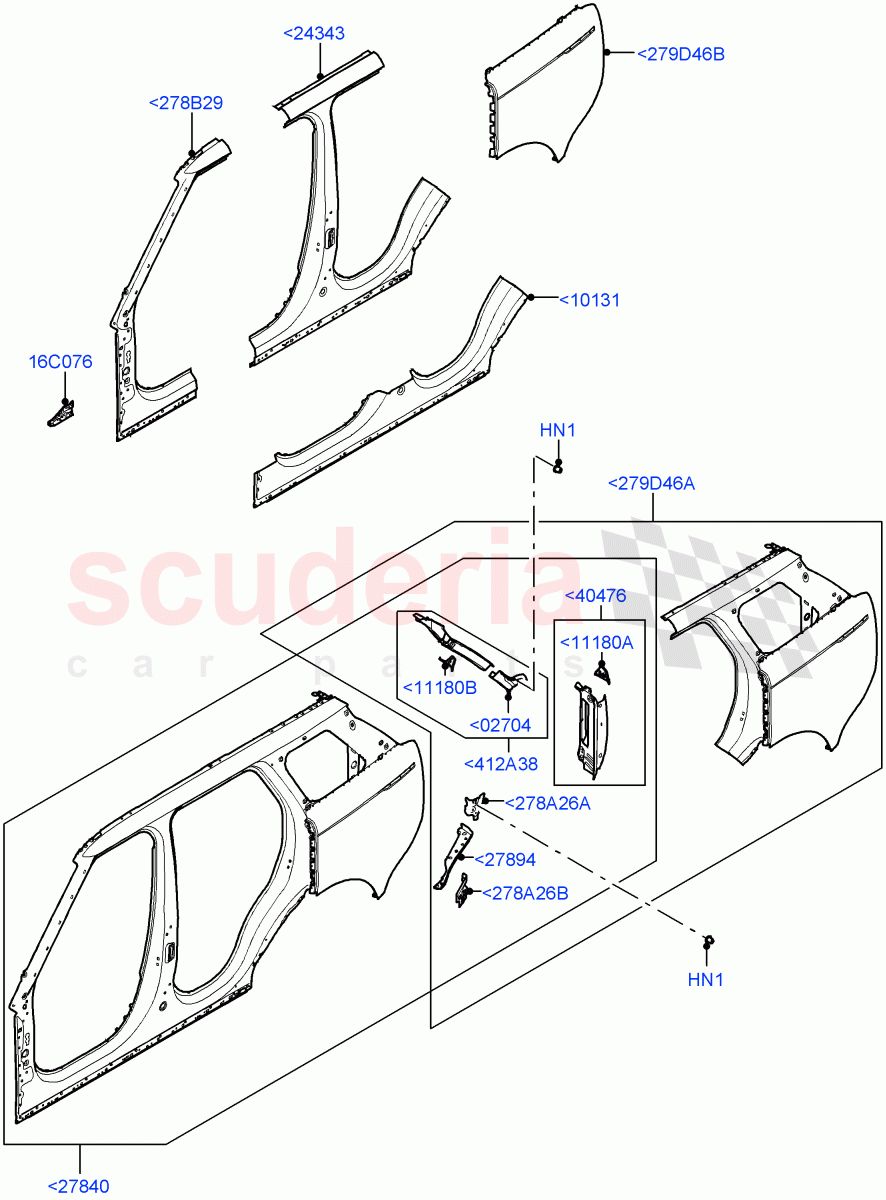

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR171035	NUT - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150600	PANEL - REAR LAMP CLOSING	Enquire	To Order
	LR150601	PANEL - REAR LAMP CLOSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165038	PANEL - BODY SIDE - DOOR SILL	Enquire	To Order
	LR165039	PANEL - BODY SIDE - DOOR SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164025	PANEL - BODY SIDE - CENTRE	Enquire	To Order
	LR164026	PANEL - BODY SIDE - CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163981	PANEL - BODY SIDE - REAR RH	Enquire	To Order
	LR163983	PANEL - BODY SIDE - REAR LH	Enquire	To Order
	LR163985	PANEL - BODY SIDE - REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153364	EXTENSION - REAR WHEELHOUSE	Enquire	To Order
	LR153365	EXTENSION - REAR WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163990	PANEL - REAR QUARTER	Enquire	To Order
	LR163989	PANEL - REAR QUARTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150602	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR150603	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151516	INSULATOR	Enquire	To Order
	LR151177	INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150573	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR151332	INSULATOR - QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164031	PILLAR - FRONT BODY - OUTER	Enquire	To Order
	LR164032	PILLAR - FRONT BODY - OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164019	PANEL - "D" PILLAR WATER DRAIN	Enquire	To Order
	LR164018	PANEL - "D" PILLAR WATER DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR168293	REINFORCEMENT - "D" PILLAR	Enquire	To Order
	LR168294	REINFORCEMENT - "D" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154537	PILLAR - REAR	Enquire	To Order
	LR154536	PILLAR - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164030	PANEL - QUARTER - OUTER RH	Enquire	To Order
	LR165025	PANEL - QUARTER - OUTER LH	Enquire	To Order
	LR165026	PANEL - QUARTER - OUTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154700	PANEL - REAR QUARTER	Enquire	To Order
	LR154701	PANEL - REAR QUARTER	Enquire	To Order
	LR154702	PANEL - REAR QUARTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<278A26A	LR168293	REINFORCEMENT - "D" PILLAR	LR168293 REINFORCEMENT - "D" PILLAR RH, Rear Outer	-	1	Enquire
<278A26A	LR168294	REINFORCEMENT - "D" PILLAR	LR168294 REINFORCEMENT - "D" PILLAR LH, Rear Quarter	-	1	Enquire
<278A26B	LR154537	PILLAR - REAR	LR154537 PILLAR - REAR LH	-	1	Enquire
<278A26B	LR154536	PILLAR - REAR	LR154536 PILLAR - REAR RH	-	1	Enquire
<278B29	LR164031	PILLAR - FRONT BODY - OUTER	LR164031 PILLAR - FRONT BODY - OUTER Standard Wheelbase / RH, Category A	-	1	Enquire
<278B29	LR164032	PILLAR - FRONT BODY - OUTER	LR164032 PILLAR - FRONT BODY - OUTER Standard Wheelbase / LH, Category A	-	1	Enquire
<279D46A	LR164030	PANEL - QUARTER - OUTER RH	LR164030 PANEL - QUARTER - OUTER RH Standard Wheelbase / RH, Category A	-	1	Enquire
<279D46A	LR165025	PANEL - QUARTER - OUTER LH	LR165025 PANEL - QUARTER - OUTER LH Less Electric Engine Battery, Standard Wheelbase / LH, Category A	-	1	Enquire
<279D46A	LR165026	PANEL - QUARTER - OUTER LH	LR165026 PANEL - QUARTER - OUTER LH Electric Engine Battery-PHEV, Standard Wheelbase / LH, Category A	-	1	Enquire
<279D46B	LR154700	PANEL - REAR QUARTER	LR154700 PANEL - REAR QUARTER Electric Engine Battery-PHEV / RH, Category A	-	1	Enquire
<279D46B	LR154701	PANEL - REAR QUARTER	LR154701 PANEL - REAR QUARTER Electric Engine Battery-MHEV / LH, Category A	-	1	Enquire
<279D46B	LR154702	PANEL - REAR QUARTER	LR154702 PANEL - REAR QUARTER Electric Engine Battery-PHEV / LH, Category A	-	1	Enquire
<412A38	LR164019	PANEL - "D" PILLAR WATER DRAIN	LR164019 PANEL - "D" PILLAR WATER DRAIN LH	-	1	Enquire
<412A38	LR164018	PANEL - "D" PILLAR WATER DRAIN	LR164018 PANEL - "D" PILLAR WATER DRAIN RH	-	1	Enquire
<02704	LR150600	PANEL - REAR LAMP CLOSING	LR150600 PANEL - REAR LAMP CLOSING RH	-	1	Enquire
<02704	LR150601	PANEL - REAR LAMP CLOSING	LR150601 PANEL - REAR LAMP CLOSING LH	-	1	Enquire
<10131	LR165038	PANEL - BODY SIDE - DOOR SILL	LR165038 PANEL - BODY SIDE - DOOR SILL RH, Category A	-	1	Enquire
<10131	LR165039	PANEL - BODY SIDE - DOOR SILL	LR165039 PANEL - BODY SIDE - DOOR SILL LH, Category A	-	1	Enquire
<11180A	LR151516	INSULATOR	LR151516 INSULATOR RH	-	1	Enquire
<11180A	LR151177	INSULATOR	LR151177 INSULATOR LH	-	1	Enquire
<11180B	LR150573	INSULATOR - QUARTER PANEL	LR150573 INSULATOR - QUARTER PANEL RH	-	1	Enquire
<11180B	LR151332	INSULATOR - QUARTER PANEL	LR151332 INSULATOR - QUARTER PANEL LH	-	1	Enquire
<24343	LR164025	PANEL - BODY SIDE - CENTRE	LR164025 PANEL - BODY SIDE - CENTRE RH, Category A	-	1	Enquire
<24343	LR164026	PANEL - BODY SIDE - CENTRE	LR164026 PANEL - BODY SIDE - CENTRE LH, Category A	-	1	Enquire
<27840	LR163981	PANEL - BODY SIDE - REAR RH	LR163981 PANEL - BODY SIDE - REAR RH Less Electric Engine Battery / RH, Category A	-	1	Enquire
<27840	LR163983	PANEL - BODY SIDE - REAR LH	LR163983 PANEL - BODY SIDE - REAR LH Less Electric Engine Battery / LH, Category A	-	1	Enquire
<27840	LR163985	PANEL - BODY SIDE - REAR LH	LR163985 PANEL - BODY SIDE - REAR LH Electric Engine Battery-PHEV / LH, Category A	-	1	Enquire
<27894	LR153364	EXTENSION - REAR WHEELHOUSE	LR153364 EXTENSION - REAR WHEELHOUSE RH, Category A	-	1	Enquire
<27894	LR153365	EXTENSION - REAR WHEELHOUSE	LR153365 EXTENSION - REAR WHEELHOUSE LH, Category A	-	1	Enquire
<40476	LR163990	PANEL - REAR QUARTER	LR163990 PANEL - REAR QUARTER LH, Category A	-	1	Enquire
<40476	LR163989	PANEL - REAR QUARTER	LR163989 PANEL - REAR QUARTER RH, Category A	-	1	Enquire
HN1	LR171035	NUT - RIVET	LR171035 NUT - RIVET M6 x 15, Rivet Nut	-	4	Enquire
16C076	LR150602	BRACKET - FENDER MOUNTING	LR150602 BRACKET - FENDER MOUNTING RH	-	1	Enquire
16C076	LR150603	BRACKET - FENDER MOUNTING	LR150603 BRACKET - FENDER MOUNTING LH	-	1	Enquire
