Engine Mounting (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

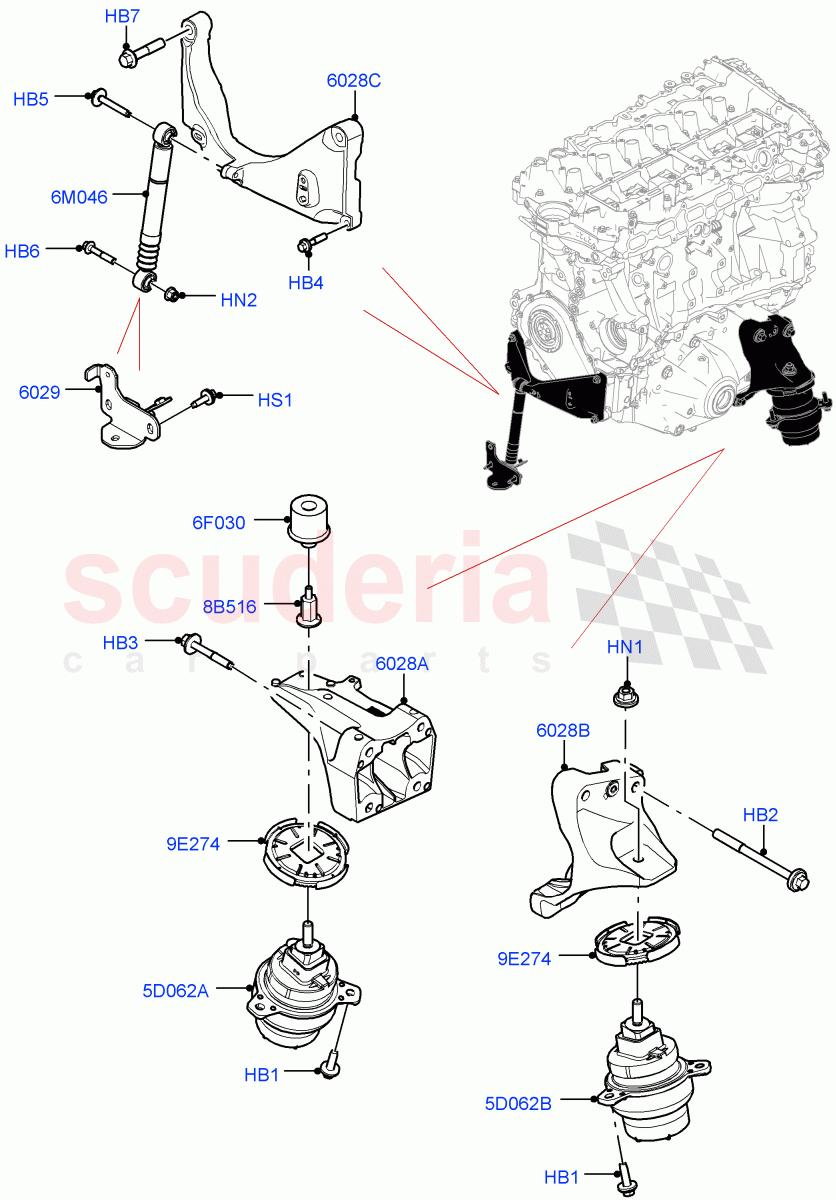

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Engine Mounting (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038568	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151933	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151939	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151935	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118800	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161944	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146237	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151927	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161943	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175596	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151992	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151999	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174007	Bracket - Engine Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165684	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141060	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159988	ADAPTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151958	WASHER - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172203	BRACKET - ENGINE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172202	BRACKET - ENGINE MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR038568	BOLT	LR038568 BOLT Engine Mounting To Subframe, Hexagonal Head, M10 x 35MM	-	6	Enquire
HB2	LR151933	BOLT	LR151933 BOLT LH, Engine Mounting Bracket To Sump, Hexagonal Head, M12 x 155mm	-	4	Enquire
HB3	LR151939	BOLT	LR151939 BOLT RH, Engine Mounting Bracket To Sump, M10 x 72MM	-	4	Enquire
HB4	LR151935	BOLT	LR151935 BOLT Engine Mounting Bracket To Sump, Front, M8 x 38MM	-	2	Enquire
HB5	LR118800	BOLT AND WASHER - HEX.HEAD	LR118800 BOLT AND WASHER - HEX.HEAD Damper To Engine Bracket, M8 x 55MM, Washer - 24 mm	-	1	Enquire
HB6	LR161944	BOLT	LR161944 BOLT Damper To Subframe Bracket, M8 X 45MM	-	1	Enquire
HB7	LR146237	BOLT	LR146237 BOLT Engine Mounting Bracket To Block, Front, M12 X 60MM	-	2	Enquire
HN1	LR151927	NUT	LR151927 NUT Engine Mounting To Engine Bracket, M12	-	1	Enquire
HN2	LR161943	NUT	LR161943 NUT Damper To Subframe Bracket, M8	-	1	Enquire
HS1	RYG501160	SCREW	RYG501160 SCREW Bolt And Washer, Bracket To Subframe, Hexagonal Head, M8X25	-	3	Enquire
5D062A	LR172203	BRACKET - ENGINE MOUNTING	LR172203 BRACKET - ENGINE MOUNTING RH	-	1	Enquire
5D062B	LR172202	BRACKET - ENGINE MOUNTING	LR172202 BRACKET - ENGINE MOUNTING LH	-	1	Enquire
6F030	LR165684	DAMPER - VIBRATION	LR165684 DAMPER - VIBRATION RH Side, Vibration	-	1	Enquire
6M046	LR141060	DAMPER - VIBRATION	LR141060 DAMPER - VIBRATION Engine Mounting, Front	-	1	Enquire
8B516	LR159988	ADAPTOR	LR159988 ADAPTOR M12 x M8, Threaded, Vibration Damper	-	1	Enquire
9E274	LR151958	WASHER - RUBBER	LR151958 WASHER - RUBBER RH/LH, Snubber	-	2	Enquire
6028A	LR151992	BRACKET - ENGINE FRONT SUPPORT	LR151992 BRACKET - ENGINE FRONT SUPPORT RH	-	1	Enquire
6028B	LR151999	BRACKET - ENGINE FRONT SUPPORT	LR151999 BRACKET - ENGINE FRONT SUPPORT LH	-	1	Enquire
6028C	LR174007	Bracket - Engine Support	LR174007 Bracket - Engine Support Front	-	1	Enquire
6029	LR175596	Bracket	LR175596 Bracket To Front Subframe	-	1	Enquire
