Heater Hoses (4.4L DOHC DITC V8 Diesel, RHD) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater Hoses (4.4L DOHC DITC V8 Diesel, RHD) ((V) FROMBA000001)

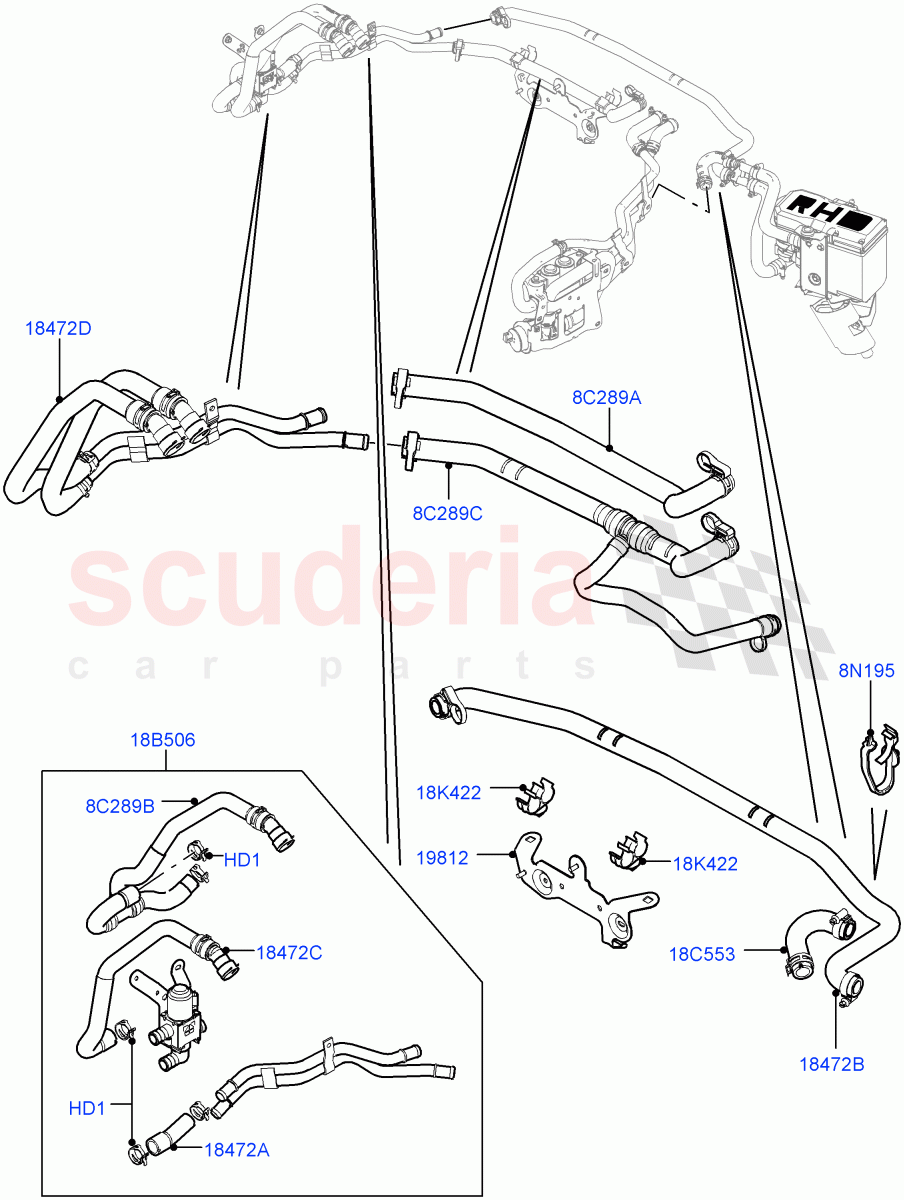

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023103	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010850	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEU000090	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023095	HOSE AND CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022720	HOSE AND CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023096	HOSE AND CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022886	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023093	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JHB501200	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012819	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022681	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023094	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022721	HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HD1	LR023103	CLAMP - HOSE	LR023103 CLAMP - HOSE Park Heating / From: BA000001	-	3	Enquire
8C289A	LR022681	HOSE	LR022681 HOSE With Front Comfort Air Con (IHKA) / To Heater Matrix / From: BA000001	-	1	Enquire
8C289B	LR023094	HOSE	LR023094 HOSE Park Heating With Remote Control / Inlet, To Changeover Valve, Upper / From: BA000001	-	1	Enquire
8C289C	LR022721	HOSE	LR022721 HOSE Premium Air Conditioning-Front/Rear / To Heater Matrix / From: BA000001	-	1	Enquire
8N195	PEU000090	CLIP	PEU000090 CLIP For Auxiliary Heater Hoses / From: BA000001	-	1	Enquire
18B506	LR023093	VALVE	LR023093 VALVE Park Heating With Remote Control / From: BA000001	-	1	Enquire
18C553	JHB501200	HOSE	JHB501200 HOSE Park Heating With Remote Control, RHD / To Fuel Fired Heater / From: AA000001	-	1	Enquire
18K422	LR012819	CLIP	LR012819 CLIP Double / From: BA000001	-	2	Enquire
18472A	LR023095	HOSE AND CONNECTOR	LR023095 HOSE AND CONNECTOR Park Heating With Remote Control / Outlet, To Changeover Valve / From: BA000001	-	1	Enquire
18472B	LR022720	HOSE AND CONNECTOR	LR022720 HOSE AND CONNECTOR RHD / To Fuel Fired Heater / From: BA000001	-	1	Enquire
18472C	LR023096	HOSE AND CONNECTOR	LR023096 HOSE AND CONNECTOR Park Heating With Remote Control / Inlet, Lower, To Changeover Valve / From: BA000001	-	1	Enquire
18472D	LR022886	HOSE	LR022886 HOSE Less Park Heating / Matrix Heater Supply And Return / From: BA000001	-	1	Enquire
19812	LR010850	BRACKET	LR010850 BRACKET Fuel Fired Heater Pipe / From: BA000001	-	1	Enquire
