Heater/Air Cond.External Components (Page A) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

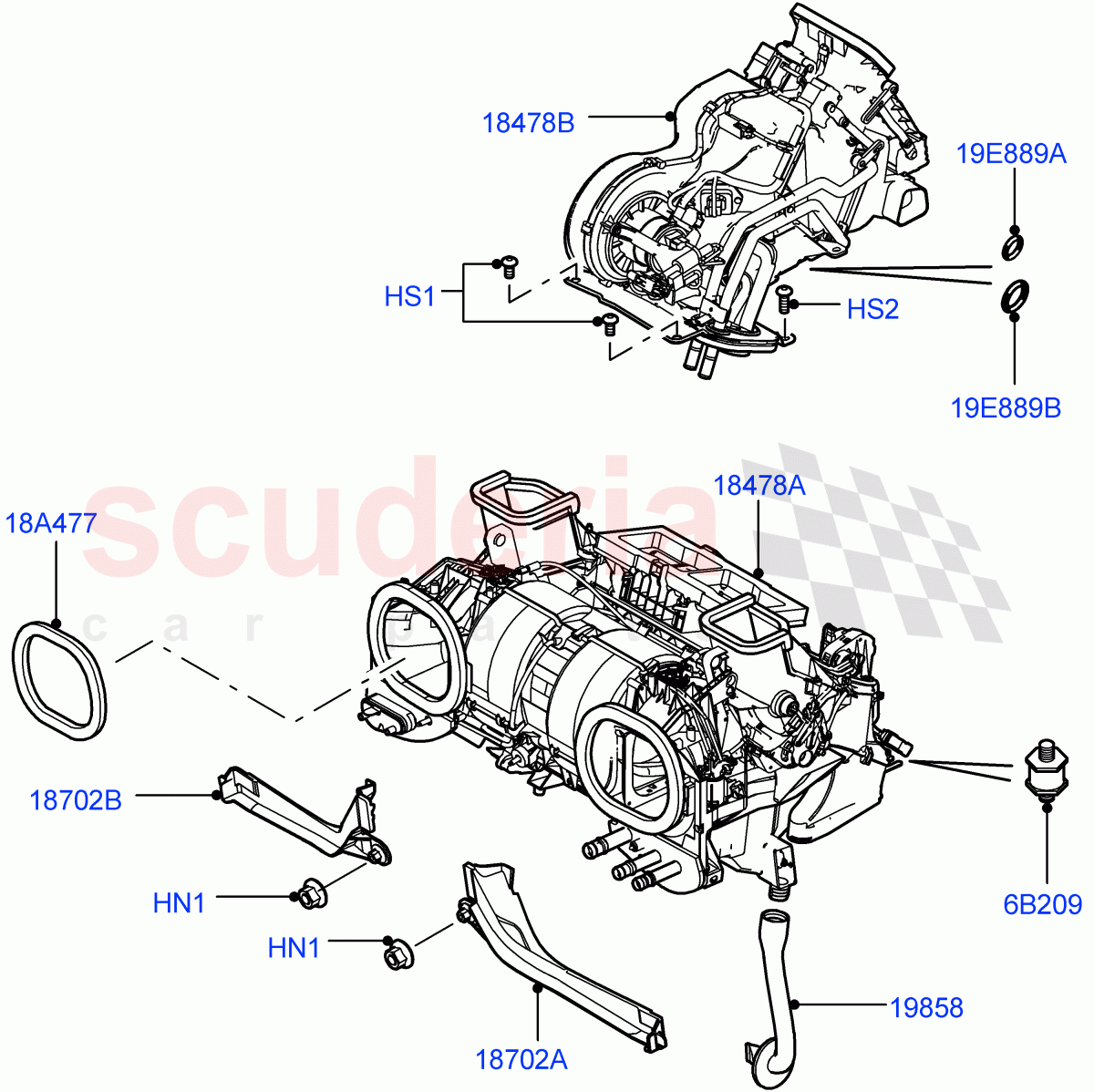

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater/Air Cond.External Components (Page A) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYH000020	NUT - PLASTIC - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500980	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015828	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JEV500020	MOUNTING - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010838	HEATER	Enquire	To Order
	LR010840	HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JEC500800	HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JMH000060	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JMH000050	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JYF000030	GASKET	Enquire	To Order
	LR023320	SEAL	Enquire	To Order
	LR023319	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006375	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006376	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	WYH000020	NUT - PLASTIC - SPECIAL	WYH000020 NUT - PLASTIC - SPECIAL Plastic / From: AA000001	-	2	Enquire
HS1	RYP500980	SCREW	RYP500980 SCREW Premium Air Conditioning-Front/Rear / M8 X 1.25 X 16MM / From: AA000001	-	3	Enquire
HS2	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM, Mounting Bracket / From: AA000001	-	2	Enquire
6B209	JEV500020	MOUNTING - RUBBER	JEV500020 MOUNTING - RUBBER From: AA000001	-	2	Enquire
18A477	JYF000030	GASKET	JYF000030 GASKET Front, Heater / From: AA000001 / To: AA999999	-	2	Enquire
18A477	LR023320	SEAL	LR023320 SEAL RH, Front, Heater / From: BA000001	-	1	Enquire
18A477	LR023319	SEAL	LR023319 SEAL LH, Front, Heater / From: BA000001	-	1	Enquire
19E889A	LR006375	O-RING	LR006375 O-RING Heater core / From: AA000001	-	1	Enquire
19E889B	LR006376	O-RING	LR006376 O-RING Evaporator Core / From: AA000001	-	1	Enquire
18478A	LR010838	HEATER	LR010838 HEATER Premium Air Conditioning-Front/Rear / Front / From: AA000001	-	1	Enquire
18478A	LR010840	HEATER	LR010840 HEATER With Front Comfort Air Con (IHKA) / Front / From: AA000001	-	1	Enquire
18478B	JEC500800	HEATER	JEC500800 HEATER Premium Air Conditioning-Front/Rear / Rear / From: AA000001	-	1	Enquire
18702A	JMH000060	BRACKET	JMH000060 BRACKET RH, Front, Heater / From: AA000001	-	1	Enquire
18702B	JMH000050	BRACKET	JMH000050 BRACKET LH, Front, Heater / From: AA000001	-	1	Enquire
19858	LR015828	HOSE	LR015828 HOSE Evaporator Drain / From: AA000001	-	2	Enquire
