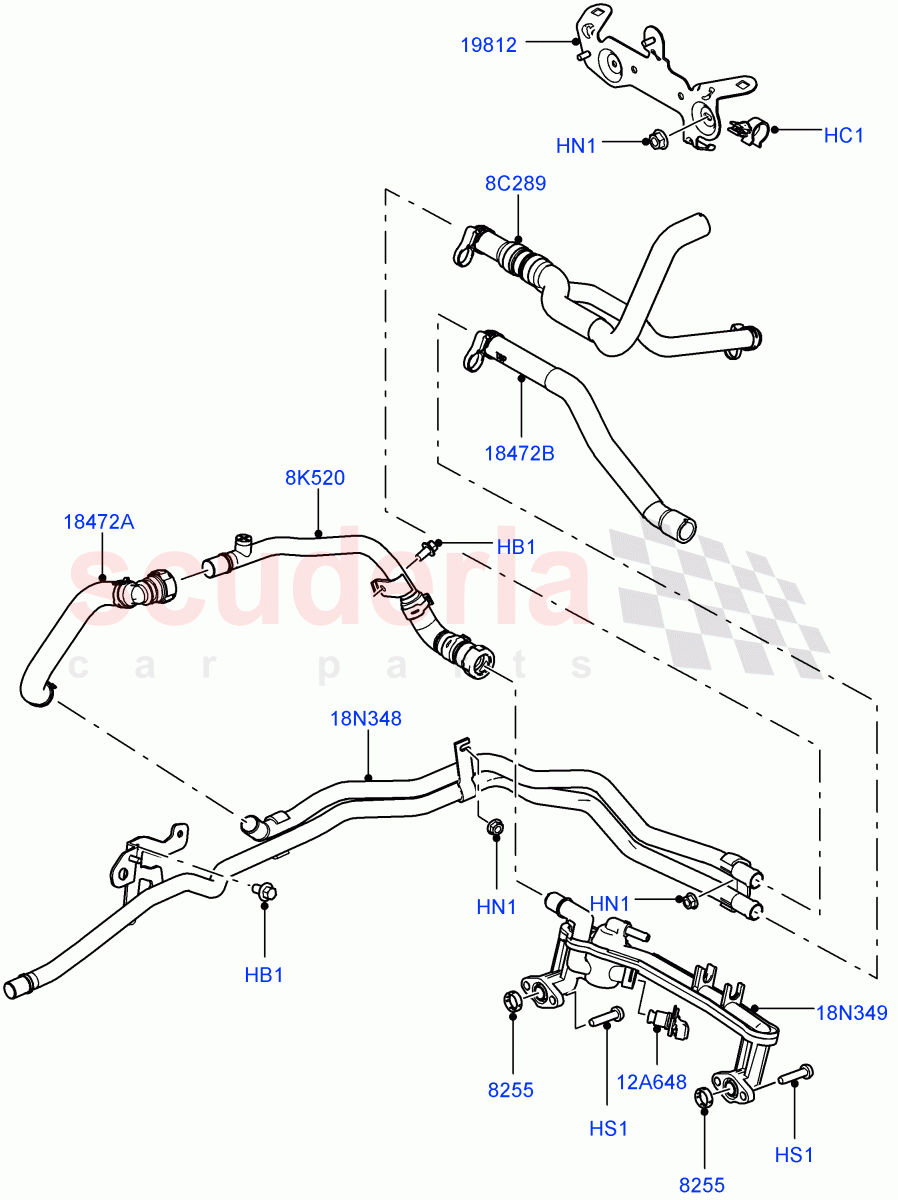

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR008902	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010850	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011458	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011454	MANIFOLD - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016854	HOSE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011483	HOSE AND CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016855	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122709	MANIFOLD - HEATER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: AA000001 IN STOCK	-	3	Enquire
HC1	LR008902	Clip	LR008902 Clip Hose, Single / From: AA000001	-	1	Enquire
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: AA000001 IN STOCK	-	1	Enquire
HS1	LR011270	SCREW IN STOCK	LR011270 SCREW M6 x 25MM, Torx / From: AA000001 IN STOCK	-	4	Enquire
8C289	LR011458	HOSE	LR011458 HOSE To Heater Matrix, With Clamps / From: AA000001	-	1	Enquire
8K520	LR011454	MANIFOLD - WATER	LR011454 MANIFOLD - WATER Feed, To Engine / From: AA000001	-	1	Enquire
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001	-	1	Enquire
18N348	LR016855	PIPE	LR016855 PIPE Feed, Metal, Return / From: AA000001	-	1	Enquire
18N349	LR122709	MANIFOLD - HEATER	LR122709 MANIFOLD - HEATER Heater / From: AA000001	-	1	Enquire
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD Tube From Engine Block To Heater Inlet Hose / From: AA000001	-	2	Enquire
18472A	LR016854	HOSE - HEATER WATER	LR016854 HOSE - HEATER WATER Feed, To Engine / From: AA000001	-	1	Enquire
18472B	LR011483	HOSE AND CONNECTOR	LR011483 HOSE AND CONNECTOR Heater Water Control, With Clamps / From: AA000001	-	1	Enquire
19812	LR010850	BRACKET	LR010850 BRACKET Fuel Fired Heater Pipe / From: AA000001	-	1	Enquire
