Heater/Air Cond.internal Components (Page B) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Heater/Air Cond.Internal Components (Page B) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JGO000021 SWITCH - HEATER BLOWER Enquire To Order
Photo Part No Description Price (each) Stock
LR012725 MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR012726 MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR012727 MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR012729 MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR012728 MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
JWL000010 SENSOR - HEATER TEMPERATURE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
JED000010 MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
JFF500020 CABLE - HEATER Enquire To Order
Photo Part No Description Price (each) Stock
JFF000080 CABLE - HEATER Enquire To Order
View All

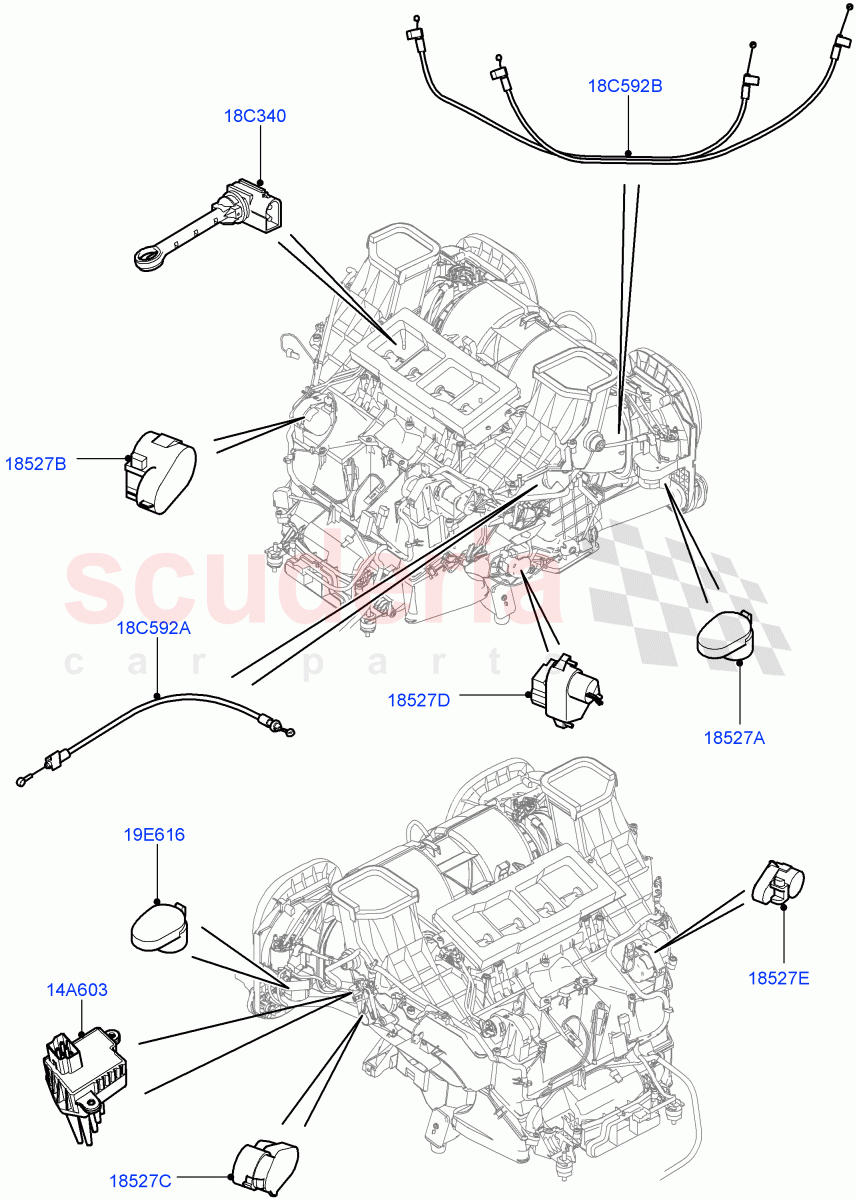

Heater/Air Cond.Internal Components (Page B) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14A603 JGO000021
SWITCH - HEATER BLOWER
From: AA000001 		- 1 Enquire
18C340 JWL000010
SENSOR - HEATER TEMPERATURE CONTROL
From: AA000001 		- 1 Enquire
18C592A JFF500020
CABLE - HEATER
Fresh/Recirculated Air Door Control / From: AA000001 		- 1 Enquire
18C592B JFF000080
CABLE - HEATER
Face Level Temperature Blend Door Control, Upper / From: AA000001 		- 2 Enquire
19E616 JED000010
MOTOR
Pressure / From: AA000001 		- 1 Enquire
18527A LR012725
MOTOR
Pressure / From: AA000001 		- 1 Enquire
18527B LR012726
MOTOR
Ventilation / From: AA000001 		- 1 Enquire
18527C LR012727
MOTOR
Defrost / From: AA000001 		- 1 Enquire
18527D LR012729
MOTOR
With Front Comfort Air Con (IHKA) / Rear, Ventilation / From: AA000001 		- 1 Enquire
18527E LR012728
MOTOR
Foot / From: AA000001 		- 1 Enquire
