Auxiliary Fuel Fired Pre-Heater (Page C) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Auxiliary Fuel Fired Pre-Heater (Page C) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC000090 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
SGK100570 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
JYF000050 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
JEX500030 PUMP - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR018302 TUBE Enquire To Order
LR018303 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
JEZ000062 PIPE - FUEL Enquire To Order
JEZ000073 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
JOC500020 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
KTH100000 STRIP - RUBBER Enquire To Order
View All

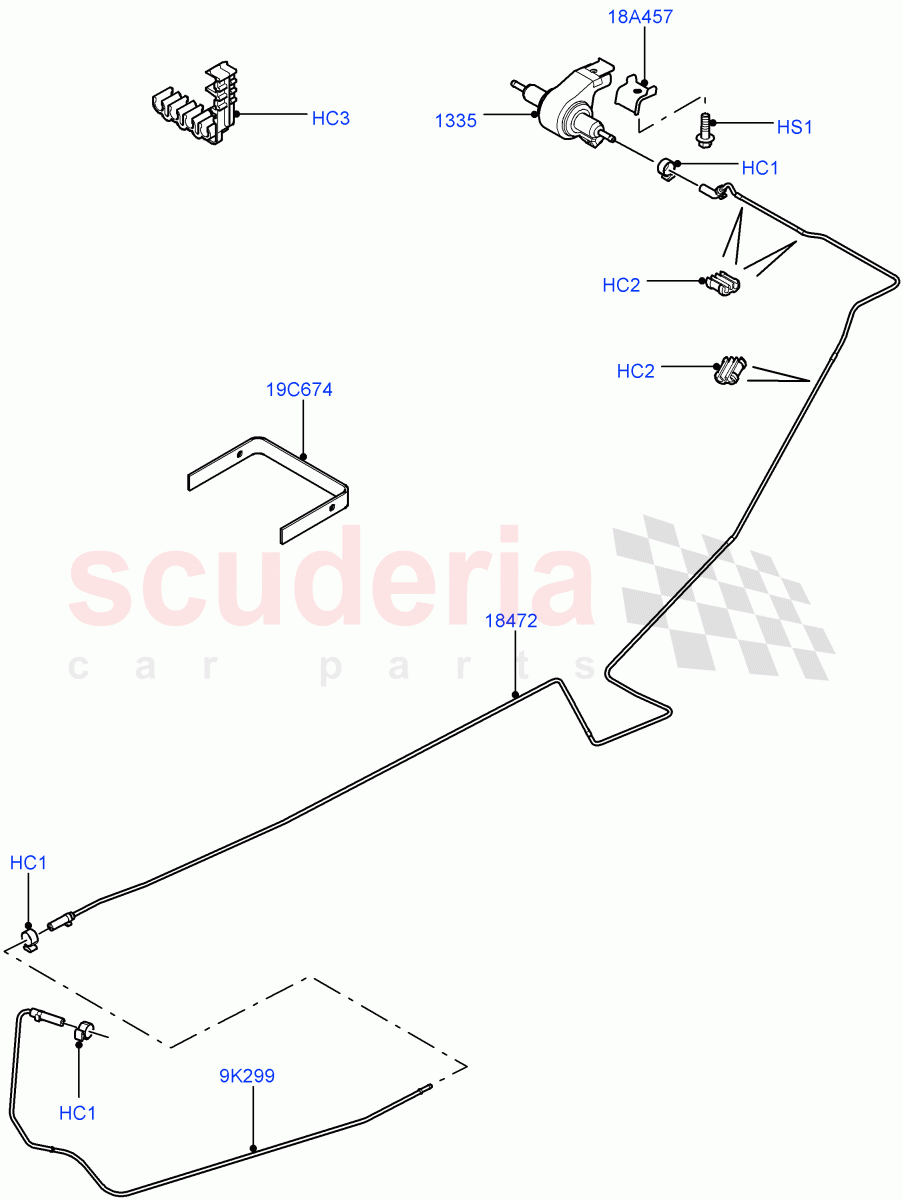

Auxiliary Fuel Fired Pre-Heater (Page C) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WYC000090
CLIP - HOSE
Pipe Clamp / From: AA000001 		- 3 Enquire
HC2 SGK100570
CLIP
Single / From: AA000001 		- 2 Enquire
HC3 JYF000050
CLIP
4 Way, RHD / From: AA000001 		- 2 Enquire
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: AA000001 		- 1 Enquire
9K299 JEZ000062
PIPE - FUEL
LHD, Park Heating With Remote Control / Front / From: AA000001 		- 1 Enquire
9K299 JEZ000073
PIPE - FUEL
Park Heating With Remote Control, RHD / Front / From: AA000001 		- 1 Enquire
18A457 JOC500020
BRACKET
Fuel Pump / From: AA000001 		- 1 Enquire
19C674 KTH100000
STRIP - RUBBER
Park Heating With Remote Control, RHD / For Fuel Tube / From: AA316012 		- 1 Enquire
1335 JEX500030
PUMP - FUEL
From: AA000001 		- 1 Enquire
18472 LR018302
TUBE
LHD, Park Heating With Remote Control / From: AA000001 		- 1 Enquire
18472 LR018303
TUBE
Park Heating With Remote Control, RHD / From: AA000001 		- 1 Enquire
