Air Conditioning Condensr/Compressr (5.0L Ohc Sgdi Na V8 Petrol - Aj133, 5.0L Ohc Sgdi Sc V8 Petrol...

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Air Conditioning Condensr/Compressr (5.0L OHC SGDI NA V8 Petrol - AJ133, 5.0L OHC SGDI SC V8 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005074 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR010837 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR010835 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
CYH10001 Nut Enquire To Order
Photo Part No Description Price (each) Stock
LR001924 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR011180 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002724 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002720 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR023116 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
JYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500190 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4378449 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR023470 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR010723 COMPRESSOR Enquire To Order
LR030218 COMPRESSOR - AIR CONDITIONING Enquire To Order
LR056364 COMPRESSOR - AIR CONDITIONING Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010843 CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
LR010866 TUBE Enquire To Order
LR019598 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR010853 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR010958 TUBE Enquire To Order
LR010959 TUBE Enquire To Order
LR021640 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR010856 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR010847 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR010850 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR010849 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR032855 KIT - AIR CONDITIONING CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
LR010868 TUBE Enquire To Order
LR021902 TUBE Enquire To Order
LR025230 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR010887 TUBE Enquire To Order
LR010888 TUBE Enquire To Order
View All

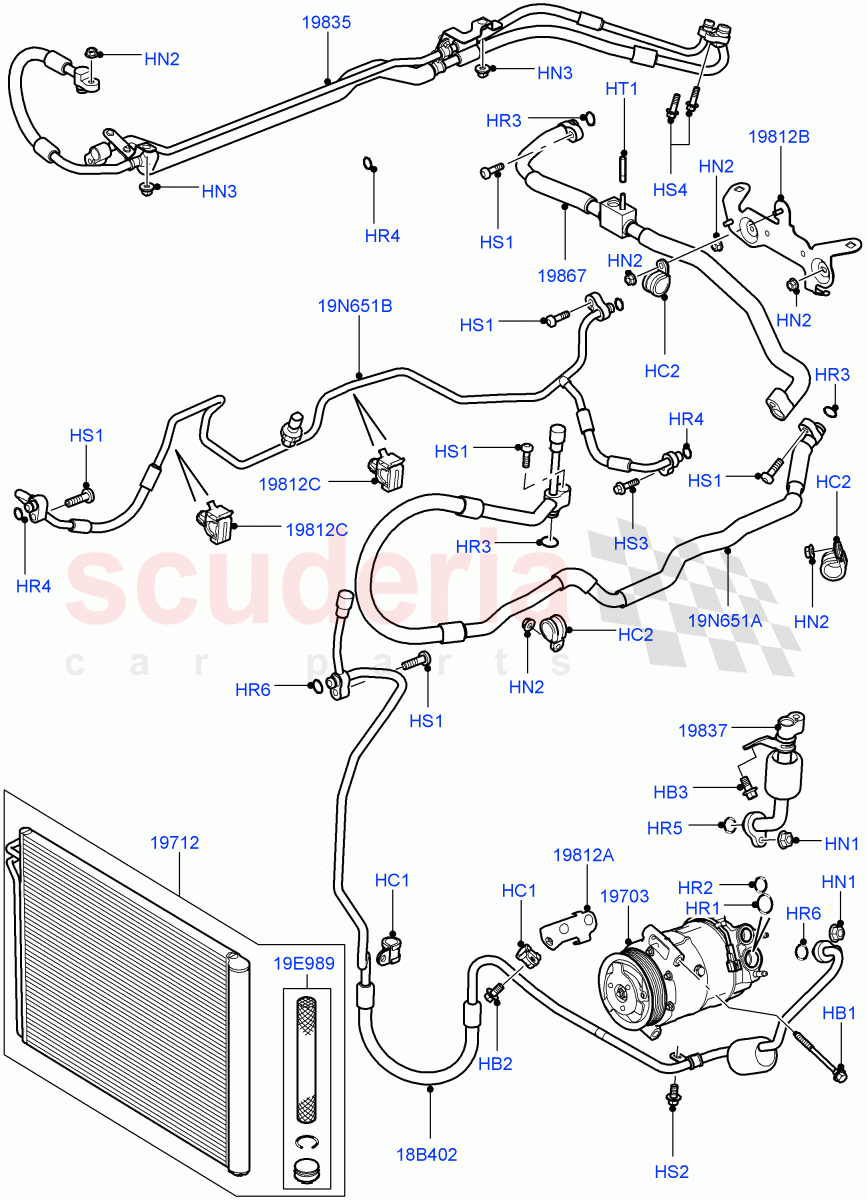

Air Conditioning Condensr/Compressr (5.0L OHC SGDI NA V8 Petrol - AJ133, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR005074
BOLT
Hexagonal Head, M8 X 96.5 / From: AA000001 		- 3 Enquire
HB2 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001 		- 1 Enquire
HB3 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: AA000001 		- 1 Enquire
HC1 LR010837
CLIP
Air Conditioning Pipe / From: AA000001 		- 2 Enquire
HC2 LR010835
CLIP
Air Conditioning Pipe / From: AA000001 		- 3 Enquire
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		- 2 Enquire
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001 		- 6 Enquire
HN3 CYH10001
Nut
Premium Air Conditioning-Front/Rear / M5, Self Locking / From: AA000001 		- 2 Enquire
HR1 LR001924
O-RING
26.3 x 3mm, Orange / From: AA000001 		- 1 Enquire
HR2 LR011180
O-RING
21 X 3MM / From: AA000001 		- 1 Enquire
HR3 LR002724
O-RING
13.7 X 2.5MM / From: AA000001 		- 3 Enquire
HR4 LR002719
O-RING
9.5 X 2.5MM / From: AA000001 		- 3 Enquire
HR5 LR002720
O-RING
16.25 X 2.5MM / From: AA000001 		- 1 Enquire
HR6 LR023116
O-RING
11 x 2.5MM / From: AA000001 		- 2 Enquire
HS1 JYP500110
SCREW
M8 x 30MM / From: AA000001 		- 6 Enquire
HS2 RYP500190
SCREW
Hexagonal Head, M6 x 12MM / From: AA000001 		- 1 Enquire
HS3 4378449
SCREW
M6 x 25MM / From: AA000001 		- 1 Enquire
HS4 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: AA000001 		- 2 Enquire
HT1 LR023470
STUD
Premium Air Conditioning-Front/Rear / M6 x 35MM / From: AA317494 		- 1 Enquire
18B402 LR010856
TUBE
Condenser To Compressor / From: AA000001 		- 1 Enquire
19E989 LR032855
KIT - AIR CONDITIONING CONDENSER
From: AA000001 		- 1 Enquire
19N651A LR010868
TUBE
Air Conditioning Evaporator To Compressor / From: AA000001 / To: AA321065 		- 1 Enquire
19N651A LR021902
TUBE
Air Conditioning Evaporator To Compressor / From: AA321066 / To: BA338246 		- 1 Enquire
19N651A LR025230
TUBE
Air Conditioning Evaporator To Compressor / From: BA338247 		- 1 Enquire
19N651B LR010887
TUBE
With Front Comfort Air Con (IHKA) / Condenser To Evaporator / From: AA000001 		- 1 Enquire
19N651B LR010888
TUBE
Premium Air Conditioning-Front/Rear / Condenser To Evaporator / From: AA000001 		- 1 Enquire
19703 LR010723
COMPRESSOR
New Part-Please Check For Reman Version / From: AA000001 / To: BA353998 		- 1 Enquire
19703 LR030218
COMPRESSOR - AIR CONDITIONING
New Part-Please Check For Reman Version / From: BA353999 / To: CA393075 		- 1 Enquire
19703 LR056364
COMPRESSOR - AIR CONDITIONING
New Part-Please Check For Reman Version / From: CA393076 		- 1 Enquire
19703 LR121306
COMPRESSOR
Remanufactured Part / From: AA000001 		- 1 Enquire
19712 LR010843
CONDENSER
From: AA000001 		- 1 Enquire
19812A LR010847
BRACKET
For Air Conditioning / From: AA000001 		- 1 Enquire
19812B LR010850
BRACKET
For Air Conditioning / From: AA000001 		- 1 Enquire
19812C LR010849
BRACKET
For Air Conditioning / From: AA000001 		- 2 Enquire
19835 LR010866
TUBE
Premium Air Conditioning-Front/Rear / Connects To Rear Evaporator Core / From: AA000001 / To: AA316726 		- 1 Enquire
19835 LR019598
TUBE
Premium Air Conditioning-Front/Rear / Connects To Rear Evaporator Core / From: AA316727 		- 1 Enquire
19837 LR010853
TUBE
Attaches To Compressor / From: AA000001 		- 1 Enquire
19867 LR010958
TUBE
With Front Comfort Air Con (IHKA) / Air Conditioning Evaporator To Compressor / From: AA000001 		- 1 Enquire
19867 LR010959
TUBE
Premium Air Conditioning-Front/Rear / Air Conditioning Evaporator To Compressor / From: AA000001 / To: AA317493 		- 1 Enquire
19867 LR021640
TUBE
Premium Air Conditioning-Front/Rear / Air Conditioning Evaporator To Compressor / From: AA317494 		- 1 Enquire
