Wiring - Seats (Front Seats) ((V) Fromaa000001, (V) Toaa313068)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Wiring - Seats (Front Seats) ((V) FROMAA000001, (V) TOAA313068)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR018199 WIRE Enquire To Order
LR018200 WIRE Enquire To Order
LR018201 WIRE Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013352 WIRE Enquire To Order
LR013353 WIRE Enquire To Order
LR013354 WIRE Enquire To Order
...and 6 more part variants. See table on right for more details.
View All

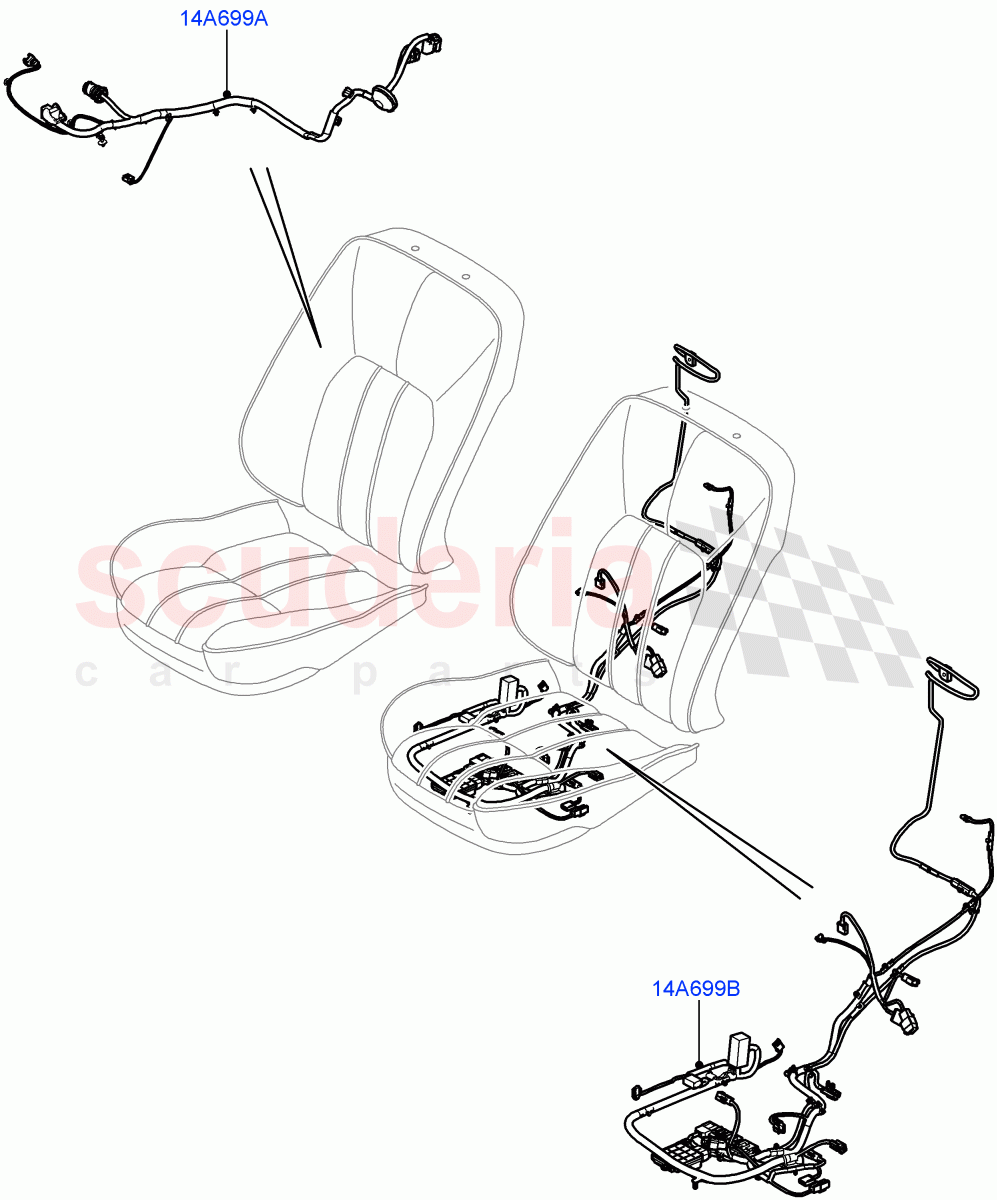

Wiring - Seats (Front Seats) ((V) FROMAA000001, (V) TOAA313068) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14A699A LR018199
WIRE
Heated/Cooled Front - Heated Rear, RHD / 12 Way, 14 Way, Driver Seat / From: AA000001 		- 1 Enquire
14A699A LR018200
WIRE
RHD, With Heated Seats - Front/Rear / 14 Way, Driver Seat / From: AA000001 		- 1 Enquire
14A699A LR018201
WIRE
RHD, With Heated Seats - Front/Rear / 12 Way, Driver Seat / From: AA000001 		- 1 Enquire
14A699A LR013355
WIRE
Heated/Cooled Front - Heated Rear, LHD / 12 Way, 14 Way, Driver Seat / From: AA000001 		- 1 Enquire
14A699A LR013356
WIRE
LHD, With Heated Seats - Front/Rear / 14 Way, Driver Seat / From: AA000001 		- 1 Enquire
14A699A LR013357
WIRE
LHD, With Heated Seats - Front/Rear / 12 Way, Driver Seat / From: AA000001 		- 1 Enquire
14A699B LR013352
WIRE
Heated/Cooled Front - Heated Rear, RHD / 12 Way, 14 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR013353
WIRE
RHD, With Heated Seats - Front/Rear / 12 Way, 14 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR013354
WIRE
RHD, With Heated Seats - Front/Rear / 10 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR018193
WIRE
(+)"CDN/MEX/USA", Heated/Cooled Front - Heated Rear, LHD / 12 Way, 14 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR018194
WIRE
(-)"CDN/MEX/USA", LHD, With Heated/Cooled Front Seats Only / 12 Way, 14 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR018195
WIRE
(+)"CDN/MEX/USA", Heated Seats - Drivers/Passengers, LHD / 12 Way, 14 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR018196
WIRE
(-)"CDN/MEX/USA", LHD, With Heated Seats - Front/Rear / 12 Way, 14 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR018197
WIRE
(+)"CDN/MEX/USA", Heated Seats - Drivers/Passengers, LHD / 10 Way, Passenger Seat / From: AA000001 		- 1 Enquire
14A699B LR018198
WIRE
(-)"CDN/MEX/USA", LHD, With Heated Seats - Front/Rear / 10 Way, Passenger Seat / From: AA000001 		- 1 Enquire
