Electrical Wiring - Body And Rear (Autobiography Ultimate Edition) ((V) Fromba344356)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Electrical Wiring - Body And Rear (Autobiography Ultimate Edition) ((V) FROMBA344356)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR046934 WIRE - AUDIO LINK Enquire To Order
Photo Part No Description Price (each) Stock
LR031246 WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR031255 WIRE Enquire To Order
View All

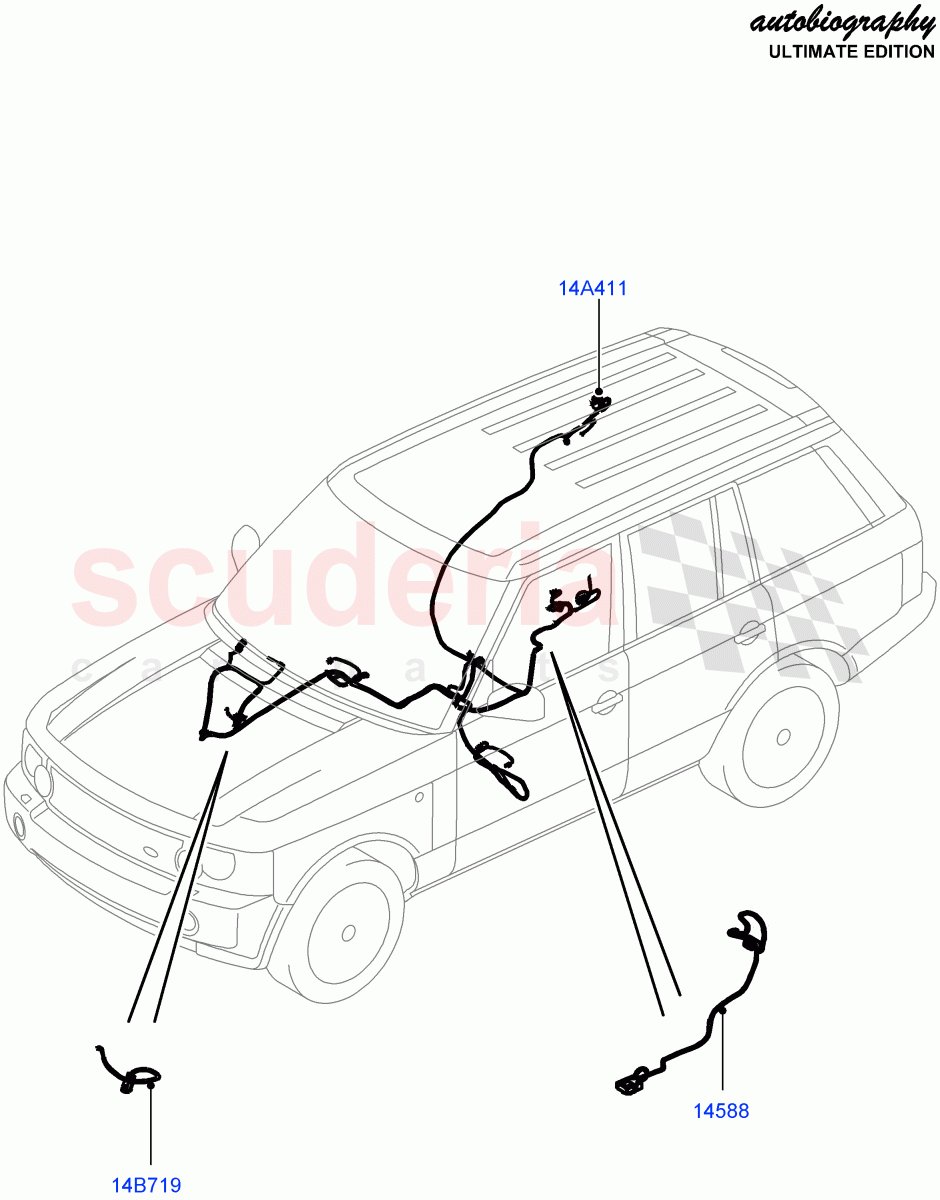

Electrical Wiring - Body And Rear (Autobiography Ultimate Edition) ((V) FROMBA344356) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14A411 LR031246
WIRING
Requires VIN To Order / From: BA344356 		- 1 Enquire
14B719 LR031255
WIRE
Requires VIN To Order / Can Link / From: BA344356 		- 1 Enquire
14588 LR046934
WIRE - AUDIO LINK
Requires VIN To Order / Connects To Ground Loop Isolator And Rear Audio Source Module / From: BA344356 		- 1 Enquire
