Vehicle Modules And Sensors ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Vehicle Modules And Sensors ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYC500010 CLIP $1.49 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 IN STOCK
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
CDU1889 Screw $0.18 To Order
Photo Part No Description Price (each) Stock
ABU761320 BRACKET $15.95 To Order
Photo Part No Description Price (each) Stock
LR014323 CONTROL $918.28 To Order
Photo Part No Description Price (each) Stock
LR012891 BRACKET $23.56 To Order
Photo Part No Description Price (each) Stock
LR010521 CONTROL AND ACT. - H/LAMP LEVELLING $213.69 To Order
LR020073 CONTROL AND ACT. - H/LAMP LEVELLING $228.11 To Order
Photo Part No Description Price (each) Stock
JTF000020 SENSOR - AIR CONDITIONER SUN LOAD $56.15 To Order
Photo Part No Description Price (each) Stock
JTF100130 SENSOR - AIR COND. AMBIENT AIR $69.64 To Order
Photo Part No Description Price (each) Stock
LR010963 MODULE - PLUG AND PLAY $1,252.45 To Order
LR019222 MODULE - PLUG AND PLAY $1,252.45 To Order
LR020465 MODULE - PLUG AND PLAY $1,352.63 To Order
Photo Part No Description Price (each) Stock
LR011191 MODULE $208.40 To Order
LR019210 MODULE $208.56 To Order
LR071651 MODULE - PASSIVE START $326.71 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014563 MODULE-CONTROL $345.79 To Order
LR014564 MODULE - CONTROL $472.15 To Order
LR019430 MODULE-CONTROL $371.96 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR017366 CONTROL - HEADPHONE VOLUME $710.40 To Order
LR020145 CONTROL - HEADPHONE VOLUME $710.40 To Order
LR023678 CONTROL - HEADPHONE VOLUME $784.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012120 MODULE - SEAT HEATER CONTROL $209.58 To Order
LR031471 MODULE - SEAT HEATER CONTROL $271.21 To Order
Photo Part No Description Price (each) Stock
LR011686 CONTROL $396.29 To Order
Photo Part No Description Price (each) Stock
LR019154 MODULE - SEAT MEMORY $358.01 To Order
LR021532 MODULE - SEAT MEMORY $315.75 To Order
LR023445 MODULE - SEAT MEMORY $519.10 To Order
View All

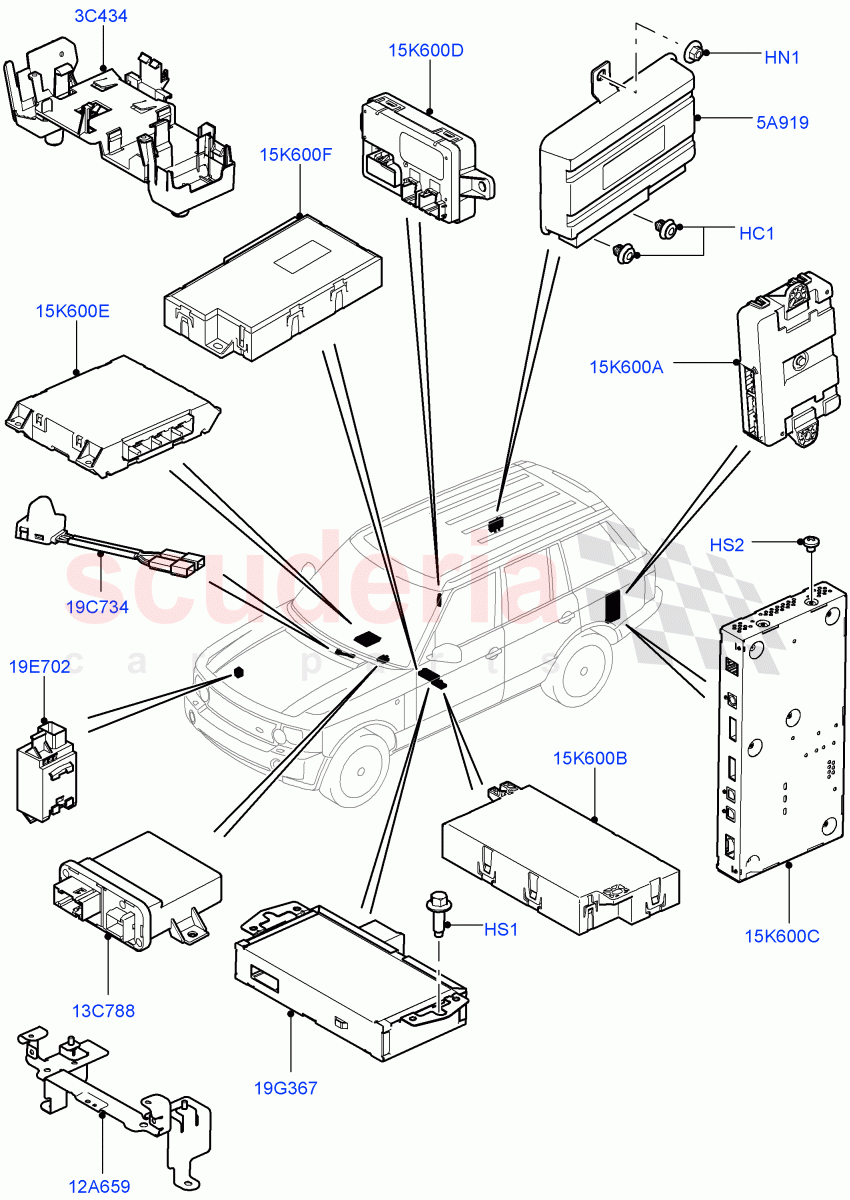

Vehicle Modules And Sensors ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 RYC500010
CLIP
Push Pin / From: AA000001 		$1.49 2
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: AA000001
IN STOCK 		$2.97 1
HS1 RYG500190
SCREW
Hexagonal Head, M6 X 16MM / From: AA000001
IN STOCK 		$0.70 2
HS2 CDU1889
Screw
M4 / From: AA000001 		$0.18 4
3C434 ABU761320
BRACKET
RH Seat / From: AA000001 		$15.95 1
5A919 LR014323
CONTROL
Air Suspension Module / From: AA000001 		$918.28 1
12A659 LR012891
BRACKET
LH Seat, Module - Audio Plug And Play / From: AA000001 		$23.56 1
13C788 LR010521
CONTROL AND ACT. - H/LAMP LEVELLING
With Adaptive BI-Xenon Headlamp NAS / From: AA000001 / To: AA309293 		$213.69 1
13C788 LR020073
CONTROL AND ACT. - H/LAMP LEVELLING
With Adaptive BI-Xenon Headlamp NAS / From: AA309294 		$228.11 1
15K600A LR011191
MODULE
Module - Remote Keyless Entry / From: AA000001 / To: AA309293 		$208.40 1
15K600A LR019210
MODULE
Module - Remote Keyless Entry / From: AA309294 / To: AA322991 		$208.56 1
15K600A LR071651
MODULE - PASSIVE START
Module - Remote Keyless Entry / From: AA322992 / To: BA358663 		$326.71 1
15K600A LR032291
MODULE - KEYLESS
Module - Remote Keyless Entry / From: BA358664 / To: CA362797 		$189.18 1
15K600A LR031380
MODULE - PASSIVE ENTRY
Module - Remote Keyless Entry / From: CA362798 / To: CA391961 		$227.26 1
15K600A LR052871
MODULE - PASSIVE START
Module - Remote Keyless Entry / From: CA393258 		$313.65 1
15K600A LR042874
MODULE - PASSIVE START
Module - Remote Keyless Entry / From: CA391962 / To: CA393257 		$312.53 1
15K600B LR014563
MODULE-CONTROL
With Driver 8 Way Pwr.Seat Adjuster / Driver Seat / From: AA000001 / To: AA309405 		$345.79 1
15K600B LR014564
MODULE - CONTROL
With Driver 10 Way Pwr Seat Adjust / Driver Seat / From: AA000001 / To: AA309405 		$472.15 1
15K600B LR019430
MODULE-CONTROL
With Driver 10 Way Pwr Seat Adjust / Driver Seat / From: AA309406 / To: AA313085 		$371.96 1
15K600B LR019428
MODULE-CONTROL
With Driver 8 Way Pwr.Seat Adjuster / Driver Seat / From: AA309406 / To: AA313085 		$417.32 1
15K600B LR019153
MODULE-CONTROL
With Driver 10 Way Pwr Seat Adjust / Driver Seat / From: AA313086 / To: AA316690 		$449.91 1
15K600B LR021531
MODULE-CONTROL
With Driver 10 Way Pwr Seat Adjust / Driver Seat / From: AA316691 / To: AA323706 		$349.57 1
15K600B LR023444
MODULE-CONTROL
With Driver 10 Way Pwr Seat Adjust / Driver Seat / From: AA331794 		$570.35 1
15K600B LR019562
MODULE-CONTROL
With Driver 8 Way Pwr.Seat Adjuster / Driver Seat / From: AA313086 / To: AA316688 		$342.11 1
15K600B LR021530
MODULE-CONTROL
With Driver 8 Way Pwr.Seat Adjuster / Driver Seat / From: AA316689 / To: BA354549 		$384.97 1
15K600B LR025958
CONTROL UNIT
With Driver 8 Way Pwr.Seat Adjuster / Driver Seat / From: BA354550 		$368.98 1
15K600B LR023932
Module
With Driver 10 Way Pwr Seat Adjust / Driver Seat / From: AA323707 / To: AA331793 		- 1 Enquire
15K600C LR017366
CONTROL - HEADPHONE VOLUME
With Provision For DVD Screen / From: AA000001 / To: AA311210 		$710.40 1
15K600C LR020145
CONTROL - HEADPHONE VOLUME
With Provision For DVD Screen / From: AA311211 / To: AA332707 		$710.40 1
15K600C LR023678
CONTROL - HEADPHONE VOLUME
With Provision For DVD Screen / From: AA332708 / To: CA383208 		$784.20 1
15K600C LR043260
CONTROL - HEADPHONE VOLUME
With Provision For DVD Screen / From: CA383209 		$778.20 1
15K600D LR012120
MODULE - SEAT HEATER CONTROL
With Heated/Cooled Front Seats Only / Module - Heated/Cooled Seats / From: AA000001 / To: BA354274 		$209.58 1
15K600D LR031471
MODULE - SEAT HEATER CONTROL
Heated/Cooled Front - Heated Rear / Module - Heated/Cooled Seats / From: BA354275 		$271.21 1
15K600E LR011686
CONTROL
Premium Air Conditioning-Front/Rear / For Air Conditioning / From: AA000001 		$396.29 1
15K600F LR019154
MODULE - SEAT MEMORY
Driver/Pass Elec Fr Seat Adj/Memory / Passenger Seat / From: AA313086 / To: AA316687 		$358.01 1
15K600F LR021532
MODULE - SEAT MEMORY
Driver/Pass Elec Fr Seat Adj/Memory / Passenger Seat / From: AA316688 / To: AA325132 		$315.75 1
15K600F LR023445
MODULE - SEAT MEMORY
Driver/Pass Elec Fr Seat Adj/Memory / Passenger Seat / From: AA325133 		$519.10 1
19C734 JTF000020
SENSOR - AIR CONDITIONER SUN LOAD
Air Conditioner Sunload / From: AA000001 		$56.15 1
19E702 JTF100130
SENSOR - AIR COND. AMBIENT AIR
Premium Air Conditioning-Front/Rear / Air Inlet (Recirculation) / From: AA000001 		$69.64 1
19G367 LR010963
MODULE - PLUG AND PLAY
Module - Audio Plug And Play, With USB / From: AA000001 / To: AA304527 		$1,252.45 1
19G367 LR019222
MODULE - PLUG AND PLAY
Module - Audio Plug And Play, With USB / From: AA304528 / To: AA319583 		$1,252.45 1
19G367 LR020465
MODULE - PLUG AND PLAY
Module - Audio Plug And Play, With USB / From: AA319584 		$1,352.63 1
