Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Battery And Mountings ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YJH500010 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
YYF500020 WASHER - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR011469 COVER - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR032525 BATTERY Enquire To Order
LR032260 BATTERY Enquire To Order
LR030213 BATTERY Enquire To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YJF000010 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR010162 TRAY - BATTERY - LESS SUPPORT Enquire To Order
LR022596 TRAY - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR016357 TUBE - VENTILATION Enquire To Order
LR031799 TUBE - VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR037872 BATTERY MANAGEMENT SYSTEM Enquire To Order
LR048604 BATTERY MANAGEMENT SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR023128 CLIP Enquire To Order
View All

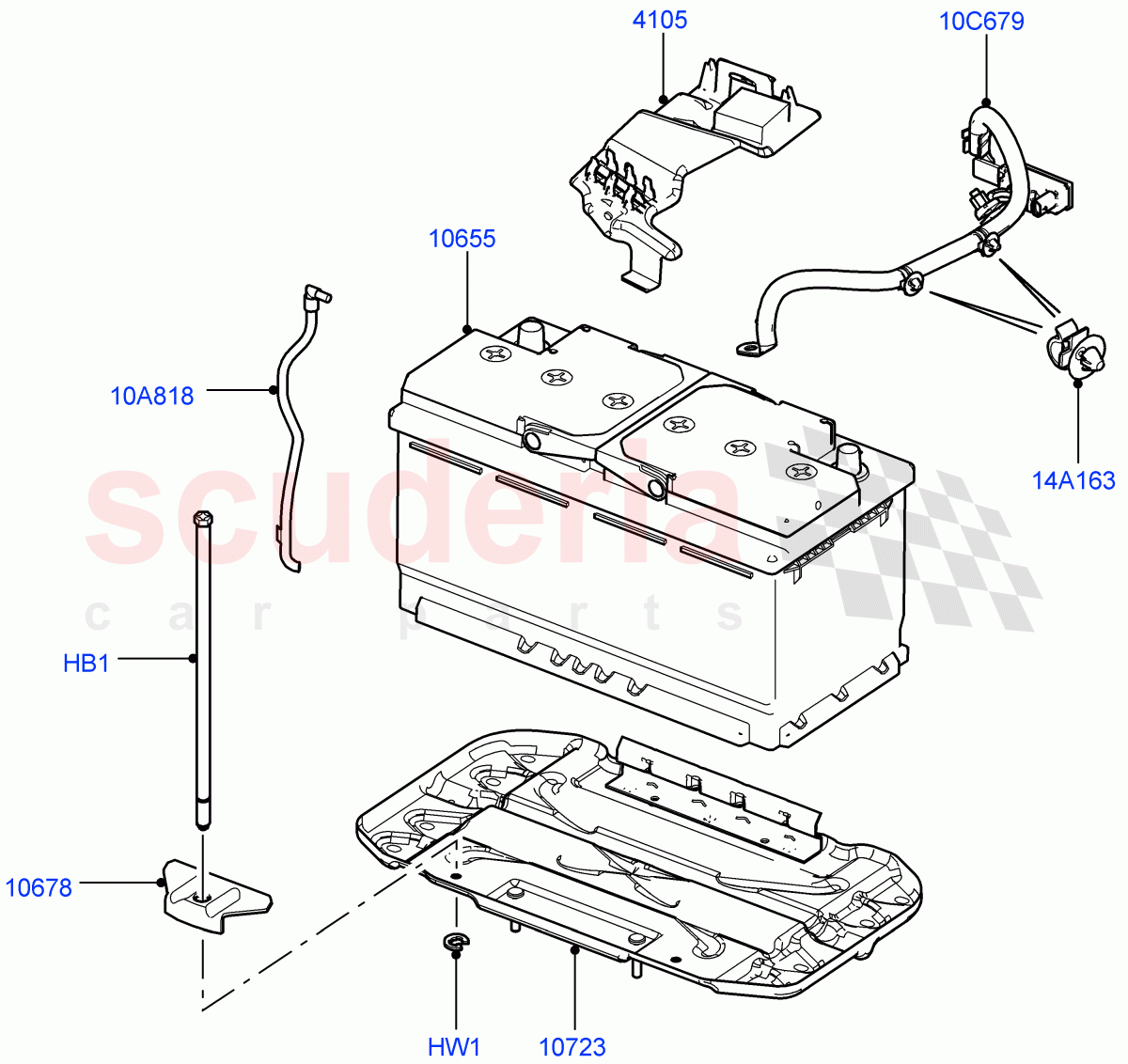

Battery And Mountings ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 YJH500010
BOLT
190MM / From: AA000001 		- 2 Enquire
HW1 YYF500020
WASHER - SPRING 		- 2 Enquire
10A818 LR016357
TUBE - VENTILATION
From: AA000001 / To: BA353998 		- 1 Enquire
10A818 LR031799
TUBE - VENTILATION
From: BA353999 		- 1 Enquire
10C679 LR037872
BATTERY MANAGEMENT SYSTEM
From: AA000001 / To: AA999999 		- 1 Enquire
10C679 LR048604
BATTERY MANAGEMENT SYSTEM
From: BA000001 		- 1 Enquire
14A163 LR023128
CLIP
Battery Management System / From: BA000001 		- 2 Enquire
4105 LR011469
COVER - BATTERY
From: AA000001 		- 1 Enquire
10655 LR032525
BATTERY
850 Amp, 95AH, AGM(Absorbed Glass Mat) / From: BA359064 / To: CA386089 		- 1 Enquire
10655 LR032260
BATTERY
850 Amp, 90 AH, AGM(Absorbed Glass Mat) / From: BA349791 / To: CA393639 		- 1 Enquire
10655 LR030213
BATTERY
90 AH, 950A, Flooded Battery / From: BA346443 / To: BA349790 		- 1 Enquire
10655 LR018609
BATTERY
90 AH, 950A, Flooded Battery / From: AA309295 / To: BA346442 		- 1 Enquire
10655 LR030212
BATTERY
800A, 90 AH, Flooded Battery / From: BA346442 / To: BA347908 		- 1 Enquire
10655 LR018680
BATTERY
800A, 90 AH, Flooded Battery / From: AA309295 / To: BA346441 		- 1 Enquire
10655 YGD500160
BATTERY - UN2794
800A, 90 AH, Flooded Battery / From: AA000001 / To: AA309294 		- 1 Enquire
10655 YGD500130
BATTERY -UN2794
90 AH, 950A, Flooded Battery / From: AA000001 / To: AA309294 		- 1 Enquire
10655 LR033179
BATTERY
850 Amp, 90 AH, AGM(Absorbed Glass Mat) / From: CA400200 		- 1 Enquire
10655 LR035622
BATTERY
850 Amp, 90 AH, AGM(Absorbed Glass Mat) / From: CA393640 / To: CA400199 		- 1 Enquire
10655 LR072855
BATTERY
850 Amp, 95AH, AGM(Absorbed Glass Mat) / From: CA386090 / To: CA389089 		- 1 Enquire
10655 LR093840
Battery
(+)"BR", H8 AGM Battery / AGM(Absorbed Glass Mat) / From: CA000001 		- 1 Enquire
10655 LR104511
Battery
(+)"USA", 12V, 900 Amp, AGM(Absorbed Glass Mat), H8 Battery, USA Locally Sourced From Interstate Only - Interstate Part Number MT5-49/H8 / From: CA361272 		- 1 Enquire
10655 LR112160
BATTERY
850 Amp, 95AH, AGM(Absorbed Glass Mat) / From: CA389090 		- 1 Enquire
10655 LR104511
Battery
(+)"Canada", AGM(Absorbed Glass Mat) / From: BA000001 		- 1 Enquire
10655 LR104509
Battery
(+)"USA", (H8), 12V, Flooded Battery, USA Locally Sourced From Interstate Only - Interstate Part Number MTP-49/H8 / To: CA361271 		- 1 Enquire
10655 LR104509
Battery
(+)"Canada", (H8), 12V, Flooded Battery, Model Years 2006 To 2010 Only, USA Locally Sourced From Interstate Only - Interstate Part Number MTP-49/H8 		- 1 Enquire
10678 YJF000010
CLAMP
From: AA000001 		- 2 Enquire
10723 LR010162
TRAY - BATTERY - LESS SUPPORT
From: AA000001 / To: BA334342 		- 1 Enquire
10723 LR022596
TRAY - BATTERY
From: BA334343 		- 1 Enquire
