Electrical Wiring - Engine And Dash (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Electrical Wiring - Engine And Dash (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR141820 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR022846 WIRE - JUMPER Enquire To Order
Photo Part No Description Price (each) Stock
LR022649 Wire Enquire To Order
LR044101 WIRING - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
LR023029 WIRE - COOLANT TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR023030 WIRE - EGR Enquire To Order
LR042323 WIRE - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR022641 BRACKET - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR022642 CLIP - WIRING Enquire To Order
View All

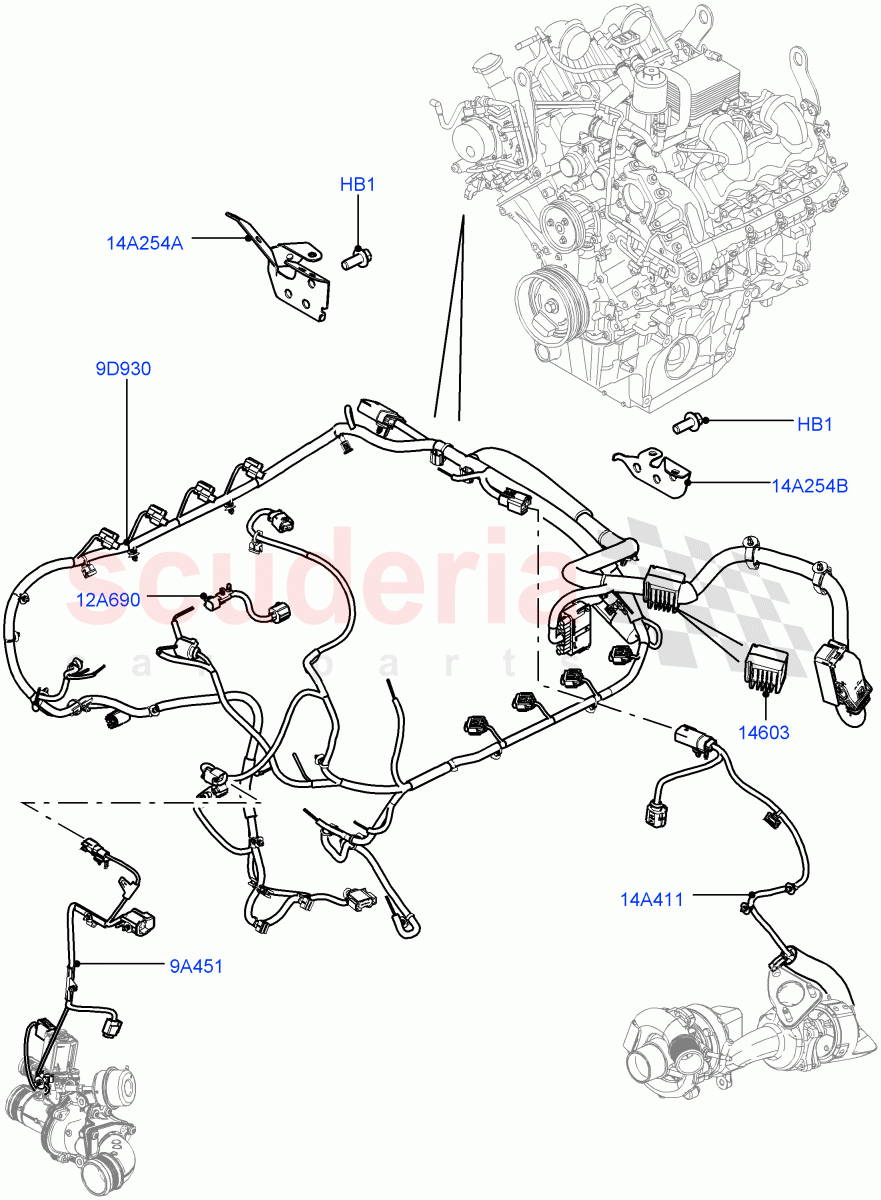

Electrical Wiring - Engine And Dash (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: BA000001 		- 2 Enquire
9A451 LR022846
WIRE - JUMPER
Pollution Sensor / From: BA000001 		- 1 Enquire
9D930 LR022649
Wire
Engine / From: BA000001 / To: BA334377 		- 1 Enquire
9D930 LR044101
WIRING - ENGINE
Engine / From: BA334378 		- 1 Enquire
12A690 LR023029
WIRE - COOLANT TEMPERATURE SENSOR
To Engine Coolant Temperature Sensor / From: BA000001 		- 1 Enquire
14A254A LR022641
BRACKET - WIRING
RH, Engine Harness / From: BA000001 		- 1 Enquire
14A254B LR022642
CLIP - WIRING
LH, Engine Harness / From: BA000001 		- 1 Enquire
14A411 LR023030
WIRE - EGR
Turbocharger Assembly / From: BA000001 / To: BA334377 		- 1 Enquire
14A411 LR042323
WIRE - EGR
Turbocharger Assembly / From: BA334378 		- 1 Enquire
14603 LR141820
PLUG - BLANKING
From: BA000001 		- 1 Enquire
