Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Electrical Wiring - Engine And Dash (Wiring Harness) ((V) FROMAA000001)

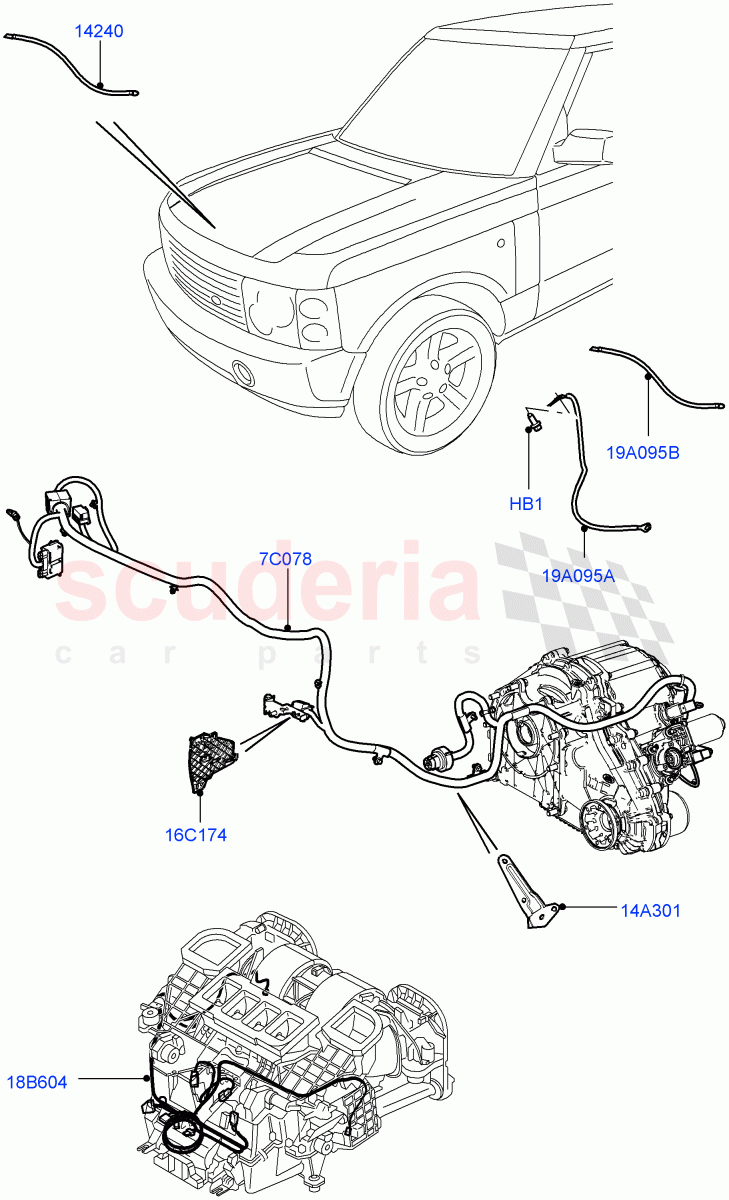

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4622661	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012464	WIRE - EARTH	$45.49	To Order
	LR012465	WIRE - EARTH	$35.55	To Order
	LR012465	WIRE - EARTH	$35.55	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012384	WIRE	$606.82	To Order
	LR012385	WIRE	$664.02	To Order
	LR012386	WIRE	$640.37	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR023037	BRACKET - WIRING	$10.52	To Order

Photo	Part No	Description	Price (each)	Stock
	ABU761350	BRACKET - BRAKE CABLE SUPPORT	$39.28	To Order

Photo	Part No	Description	Price (each)	Stock
	YME500140	WIRING	$104.72	To Order
	YME500110	HARNESS - HEATER & AIR CON	$67.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016358	CABLE	$11.91	To Order

Photo	Part No	Description	Price (each)	Stock
	XSC000040	WIRE	$29.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4622661	SCREW	4622661 SCREW 5.0L OHC SGDI NA V8 Petrol - AJ133 / M8 X 16MM / From: AA000001	$0.70	1
7C078	LR012384	WIRE	LR012384 WIRE 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD / From: AA000001	$606.82	1
7C078	LR012385	WIRE	LR012385 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, LHD, Stage IV + CDPF Emissions / From: AA000001 / To: AA999999	$664.02	1
7C078	LR012386	WIRE	LR012386 WIRE 5.0L OHC SGDI NA V8 Petrol - AJ133, RHD / From: AA000001	$640.37	1
7C078	LR012387	WIRE	LR012387 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, RHD, Stage IV + CDPF Emissions / From: AA000001 / To: AA999999	$582.17	1
7C078	LR012388	WIRE	LR012388 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, Euro Stage 4 Emissions, LHD / From: AA000001 / To: AA999999	$477.34	1
7C078	LR012389	WIRE	LR012389 WIRE 3.6L V8 32V DOHC EFi Diesel Lion, Euro Stage 4 Emissions, RHD / From: AA000001 / To: AA999999	$470.30	1
7C078	LR022740	WIRE	LR022740 WIRE 4.4L DOHC DITC V8 Diesel, LHD, Stage V Plus DPF / From: BA000001 / To: BA349109	$501.23	1
7C078	LR022745	WIRE	LR022745 WIRE 4.4L DOHC DITC V8 Diesel, RHD, Stage V Plus DPF / From: BA000001 / To: BA349109	$501.23	1
7C078	LR022746	WIRE	LR022746 WIRE 4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions, LHD / From: BA000001 / To: BA349109	$477.34	1
7C078	LR022747	WIRE	LR022747 WIRE 4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions, RHD / From: BA000001 / To: BA349109	$493.81	1
7C078	LR032020	WIRING - TRANSMISSION	LR032020 WIRING - TRANSMISSION 4.4L DOHC DITC V8 Diesel, LHD, Stage V Plus DPF / From: BA349110	$624.12	1
7C078	LR032021	WIRING - TRANSMISSION	LR032021 WIRING - TRANSMISSION 4.4L DOHC DITC V8 Diesel, RHD, Stage V Plus DPF / From: BA349110	$614.54	1
7C078	LR032022	WIRING - TRANSMISSION	LR032022 WIRING - TRANSMISSION 4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions, LHD / From: BA349110	$451.85	1
7C078	LR032011	WIRING - TRANSMISSION	LR032011 WIRING - TRANSMISSION 4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions, RHD / From: BA349110	$402.31	1
14A301	LR023037	BRACKET - WIRING	LR023037 BRACKET - WIRING 4.4L DOHC DITC V8 Diesel / From: BA000001	$10.52	1
16C174	ABU761350	BRACKET - BRAKE CABLE SUPPORT	ABU761350 BRACKET - BRAKE CABLE SUPPORT Stage IV + CDPF Emissions / From: AA000001	$39.28	1
18B604	YME500140	WIRING	YME500140 WIRING With Front Comfort Air Con (IHKA) / Heater / From: AA000001	$104.72	1
18B604	YME500110	HARNESS - HEATER & AIR CON	YME500110 HARNESS - HEATER & AIR CON Premium Air Conditioning-Front/Rear / Heater / From: AA000001	$67.57	1
19A095A	LR016358	CABLE	LR016358 CABLE 5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001	$11.91	1
19A095B	XSC000040	WIRE	XSC000040 WIRE 5.0L OHC SGDI NA V8 Petrol - AJ133 / Ground Cable, From Bonnet To Fender / From: AA000001	$29.86	1
14240	LR012464	WIRE - EARTH	LR012464 WIRE - EARTH 5.0L OHC SGDI NA V8 Petrol - AJ133 / Ground Cable, From Engine To Chassis / From: AA000001	$45.49	1
14240	LR012465	WIRE - EARTH	LR012465 WIRE - EARTH 3.6L V8 32V DOHC EFi Diesel Lion / Ground Cable, From Engine To Chassis / From: AA000001	$35.55	1
14240	LR012465	WIRE - EARTH	LR012465 WIRE - EARTH 4.4L DOHC DITC V8 Diesel, Less Starter Equipment / Ground Cable, From Engine To Chassis / From: BA000001	$35.55	1
14240	LR029177	WIRE - EARTH	LR029177 WIRE - EARTH 4.4L DOHC DITC V8 Diesel, Cold Start (-35	$161.26	1
