Thermostat/Housing & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Thermostat/Housing & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT...

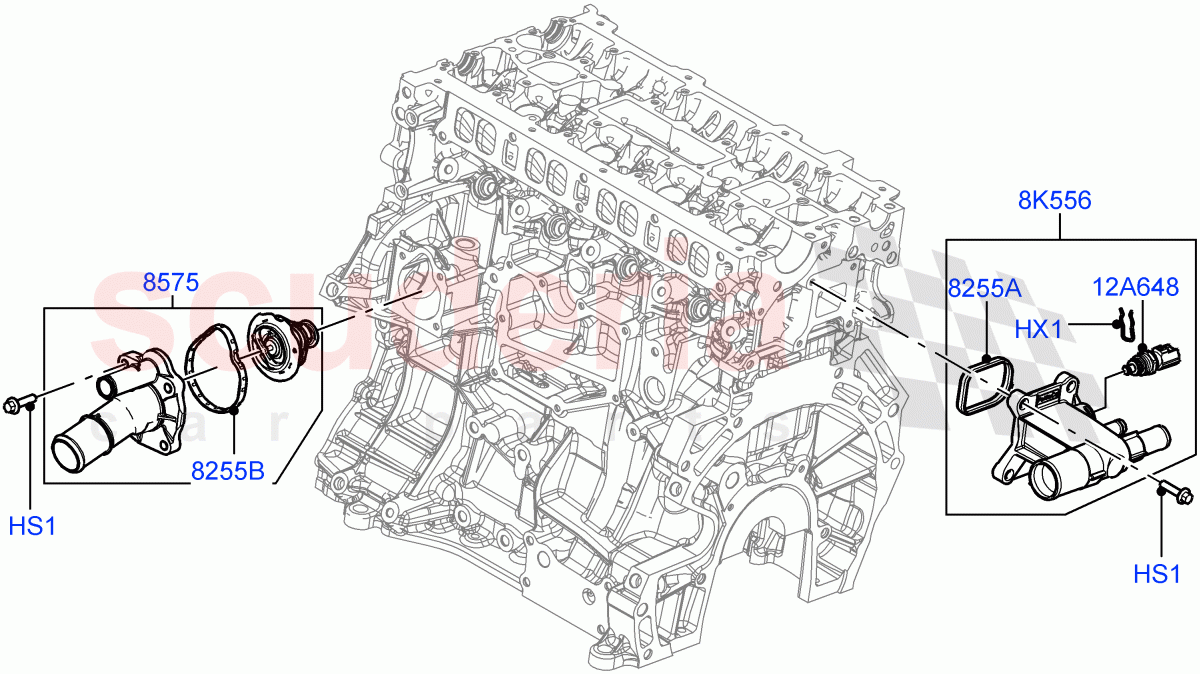

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010576	CLIP - RETAINING	$6.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027158	THERMOSTAT AND HOUSING	$99.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025021	GASKET - WATER MANIFOLD	$5.21	To Order
	LR038760	GASKET - WATER MANIFOLD	$4.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027102	GASKET - THERMOSTAT HOUSING	$23.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025564	ADAPTOR - WATER OUTLET CONNECTOR	$164.31	To Order
	LR038758	ADAPTOR - WATER OUTLET CONNECTOR	$178.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025045	SENSOR - ENGINE COOLANT TEMPERATURE	$75.45	To Order

View All

Diagram Tap to enlarge

Part
Number

Part
Description

Part Details

Price
(each)

Qty on
Diagram

Order
Qty

Add to
Cart

HS1

FS106256

SCREW

FS106256
SCREW
M6 x 25MM

$0.42

HX1

LR010576

CLIP - RETAINING

LR010576
CLIP - RETAINING
Clip

$6.43

8K556

LR025564

ADAPTOR - WATER OUTLET CONNECTOR

LR025564
ADAPTOR - WATER OUTLET CONNECTOR
To: CH999999

$164.31

8K556

LR038758

ADAPTOR - WATER OUTLET CONNECTOR

LR038758
ADAPTOR - WATER OUTLET CONNECTOR
From: DH000001

$178.05

12A648

LR025045

SENSOR - ENGINE COOLANT TEMPERATURE

LR025045
SENSOR - ENGINE COOLANT TEMPERATURE
Includes O-Ring

$75.45

8255A

LR025021

GASKET - WATER MANIFOLD

LR025021
GASKET - WATER MANIFOLD
Outlet / To: CH999999

$5.21

8255A

LR038760

GASKET - WATER MANIFOLD

LR038760
GASKET - WATER MANIFOLD
Outlet / From: DH000001

$4.94

8255B

LR027102

GASKET - THERMOSTAT HOUSING

LR027102
GASKET - THERMOSTAT HOUSING
Thermostat To Engine

$23.76

8575

LR027158

THERMOSTAT AND HOUSING

LR027158
THERMOSTAT AND HOUSING

$99.95
