Name: Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
Rating: 5.0 (1 reviews)

Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V)...

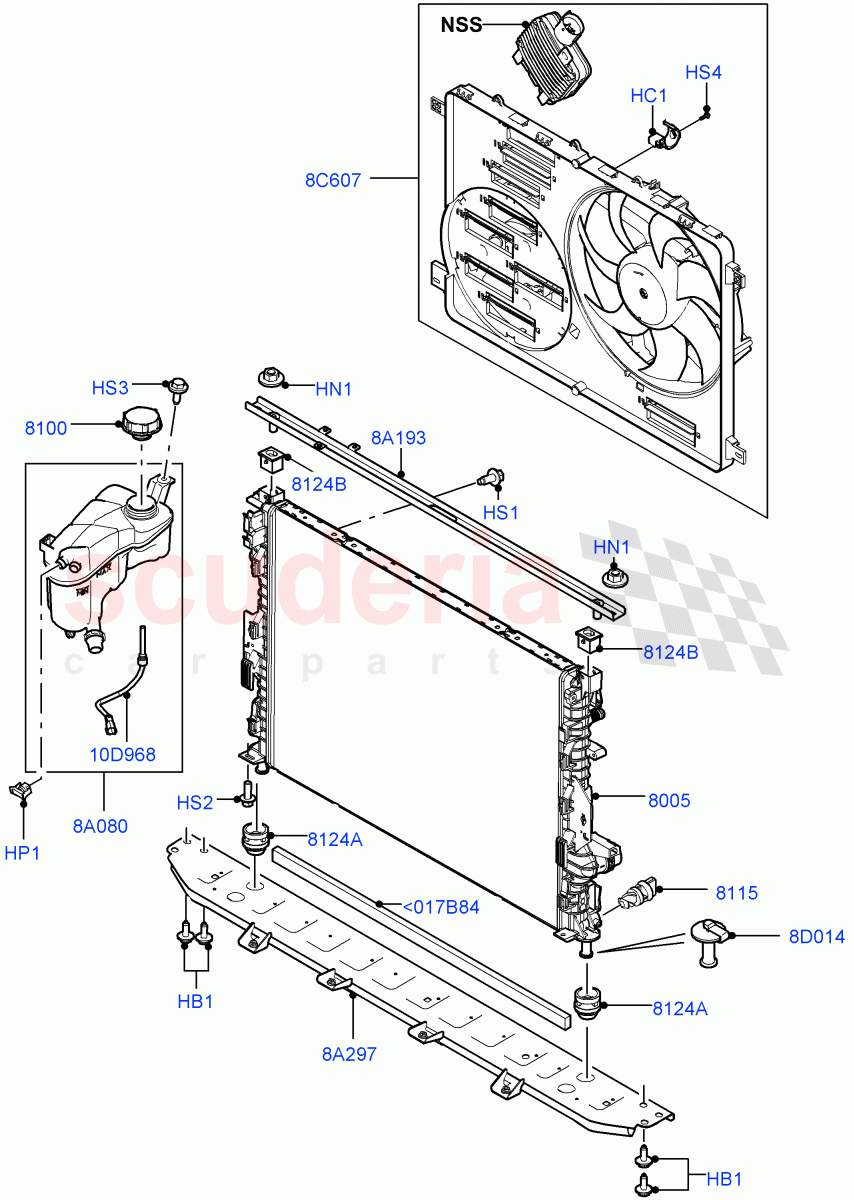

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041259	CLIP - HOSE	$5.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044290	PLUG - EXPANSION TANK	$7.93	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500770	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070463	RADIATOR - MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000243	CAP - RADIATOR	$11.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070464	PLUG - RADIATOR DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000242	INSULATOR - RADIATOR SUPPORT	$1.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024296	TANK - RADIATOR OVERFLOW	$100.71	To Order
	LR060349	TANK - RADIATOR OVERFLOW	$117.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044300	BRACKET - RADIATOR UPPER	$62.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024295	SUPPORT - RADIATOR	$106.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044833	MOTOR FAN ENGINE COOLING	$853.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000582	PIN - RADIATOR MOUNTING	$52.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000930	SENSOR - COOLANT LEVEL	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024294	PAD - FOAM	$5.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR024294	PAD - FOAM	LR024294 PAD - FOAM Self Adhesive / From: EG000001	$5.70	1
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM / From: EG000001	$1.12	6
HC1	LR041259	CLIP - HOSE	LR041259 CLIP - HOSE Single / From: EG000001	$5.63	1
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: EG000001	$2.97	2
HP1	LR044290	PLUG - EXPANSION TANK	LR044290 PLUG - EXPANSION TANK Expansion Tank / From: GG134738	$7.93	1
HS1	RYG500220	SCREW	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: EG000001	$3.31	1
HS2	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: EG000001	$1.19	4
HS3	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: EG000001	$1.32	6
HS4	RYP500770	SCREW	RYP500770 SCREW 5 X 16MM, Torx / From: EG000001	$0.59	1
8A080	LR024296	TANK - RADIATOR OVERFLOW	LR024296 TANK - RADIATOR OVERFLOW From: EG000001 / To: GG134737	$100.71	1
8A080	LR060349	TANK - RADIATOR OVERFLOW	LR060349 TANK - RADIATOR OVERFLOW From: GG134738	$117.97	1
8A193	LR044300	BRACKET - RADIATOR UPPER	LR044300 BRACKET - RADIATOR UPPER Upper / From: EG000001	$62.09	1
8A297	LR024295	SUPPORT - RADIATOR	LR024295 SUPPORT - RADIATOR Lower / From: EG000001	$106.30	1
8C607	LR044833	MOTOR FAN ENGINE COOLING	LR044833 MOTOR FAN ENGINE COOLING From: EG000001	$853.61	1
8D014	LR000582	PIN - RADIATOR MOUNTING	LR000582 PIN - RADIATOR MOUNTING Repair Kit / From: EG000001	$52.89	2
10D968	LR000930	SENSOR - COOLANT LEVEL	LR000930 SENSOR - COOLANT LEVEL From: EG000001	$36.89	1
8005	LR070463	RADIATOR - MAIN	LR070463 RADIATOR - MAIN From: EG000001	-	1	Enquire
8100	LR000243	CAP - RADIATOR	LR000243 CAP - RADIATOR From: EG000001	$11.17	1
8115	LR070464	PLUG - RADIATOR DRAIN	LR070464 PLUG - RADIATOR DRAIN From: EG000001	-	1	Enquire
8124A	LR000242	INSULATOR - RADIATOR SUPPORT	LR000242 INSULATOR - RADIATOR SUPPORT Lower / From: EG000001	$1.66	2
8124B	LR007399	INSULATOR - RUBBER	LR007399 INSULATOR - RUBBER Upper / From: EG000001	$1.59	2
