Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT...

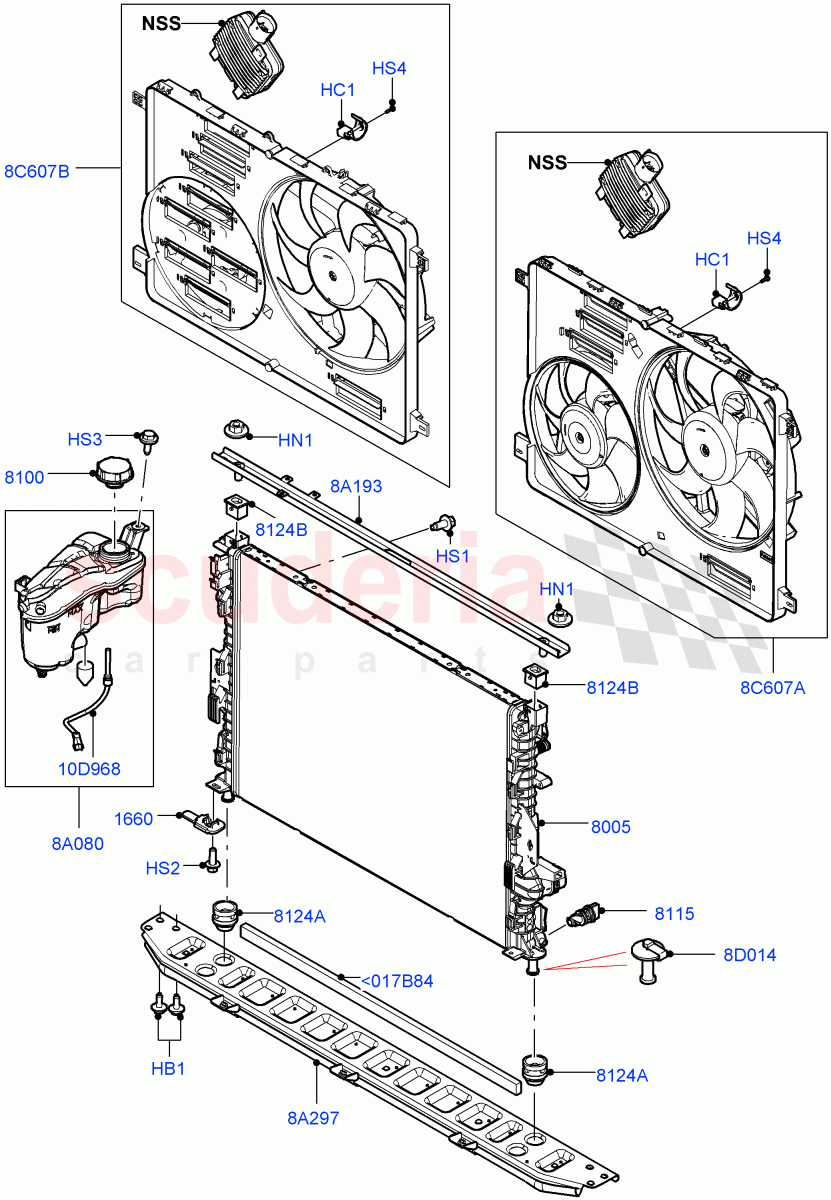

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041259	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500770	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096114	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006715	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000243	CAP - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002662	PLUG - RADIATOR DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000242	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024296	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044300	BRACKET - RADIATOR UPPER	Enquire	To Order
	LR044300	BRACKET - RADIATOR UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024295	SUPPORT - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000582	PIN - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000930	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024292	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR045248	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR094390	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR032047	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR044833	MOTOR FAN ENGINE COOLING	Enquire	To Order
	LR100366	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024294	PAD - FOAM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR024294	PAD - FOAM	LR024294 PAD - FOAM Self Adhesive	-	1	Enquire
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM	-	6	Enquire
HC1	LR041259	CLIP - HOSE	LR041259 CLIP - HOSE Single / From: DH767751	-	1	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer	-	2	Enquire
HS1	RYG500220	SCREW	RYG500220 SCREW Hexagonal Head, M6 X 20MM	-	1	Enquire
HS2	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM	-	4	Enquire
HS3	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex	-	6	Enquire
HS4	RYP500770	SCREW	RYP500770 SCREW 5 X 16MM, Torx / From: DH767751	-	1	Enquire
8A080	LR024296	TANK - RADIATOR OVERFLOW	LR024296 TANK - RADIATOR OVERFLOW	-	1	Enquire
8A193	LR044300	BRACKET - RADIATOR UPPER	LR044300 BRACKET - RADIATOR UPPER Upper / To: CH701220	-	1	Enquire
8A193	LR044300	BRACKET - RADIATOR UPPER	LR044300 BRACKET - RADIATOR UPPER Upper / From: CH701221	-	1	Enquire
8A297	LR024295	SUPPORT - RADIATOR	LR024295 SUPPORT - RADIATOR Lower	-	1	Enquire
8C607A	LR024292	MOTOR AND FAN - ENGINE COOLING	LR024292 MOTOR AND FAN - ENGINE COOLING (+)"CHN" / To: DH767750	-	1	Enquire
8C607A	LR045248	MOTOR AND FAN - ENGINE COOLING	LR045248 MOTOR AND FAN - ENGINE COOLING (-)"CHN" / From: DH767751 / To: HH185622	-	1	Enquire
8C607A	LR094390	MOTOR AND FAN - ENGINE COOLING	LR094390 MOTOR AND FAN - ENGINE COOLING (-)"CHN" / From: HH185623 / To: HH265968	-	1	Enquire
8C607A	LR100364	MOTOR AND FAN - ENGINE COOLING	LR100364 MOTOR AND FAN - ENGINE COOLING (-)"CHN" / From: HH265969	-	1	Enquire
8C607B	LR032047	MOTOR AND FAN - ENGINE COOLING	LR032047 MOTOR AND FAN - ENGINE COOLING (+)"CHN" / From: CH640055 / To: DH767750	-	1	Enquire
8C607B	LR044833	MOTOR FAN ENGINE COOLING	LR044833 MOTOR FAN ENGINE COOLING (+)"CHN" / From: DH767751 / To: HH229726	-	1	Enquire
8C607B	LR100366	MOTOR AND FAN - ENGINE COOLING	LR100366 MOTOR AND FAN - ENGINE COOLING (+)"CHN" / From: HH229727	-	1	Enquire
8D014	LR000582	PIN - RADIATOR MOUNTING	LR000582 PIN - RADIATOR MOUNTING Repair Kit	-	2	Enquire
10D968	LR000930	SENSOR - COOLANT LEVEL	LR000930 SENSOR - COOLANT LEVEL	-	1	Enquire
1660	LR096114	SPACER	LR096114 SPACER	-	1	Enquire
8005	LR006715	RADIATOR	LR006715 RADIATOR	-	1	Enquire
8100	LR000243	CAP - RADIATOR	LR000243 CAP - RADIATOR	-	1	Enquire
8115	LR002662	PLUG - RADIATOR DRAIN	LR002662 PLUG - RADIATOR DRAIN	-	1	Enquire
8124A	LR000242	INSULATOR - RADIATOR SUPPORT	LR000242 INSULATOR - RADIATOR SUPPORT Lower	-	2	Enquire
8124B	LR007399	INSULATOR - RUBBER	LR007399 INSULATOR - RUBBER Upper	-	2	Enquire
