Name: Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.2 (1 reviews)

Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V)...

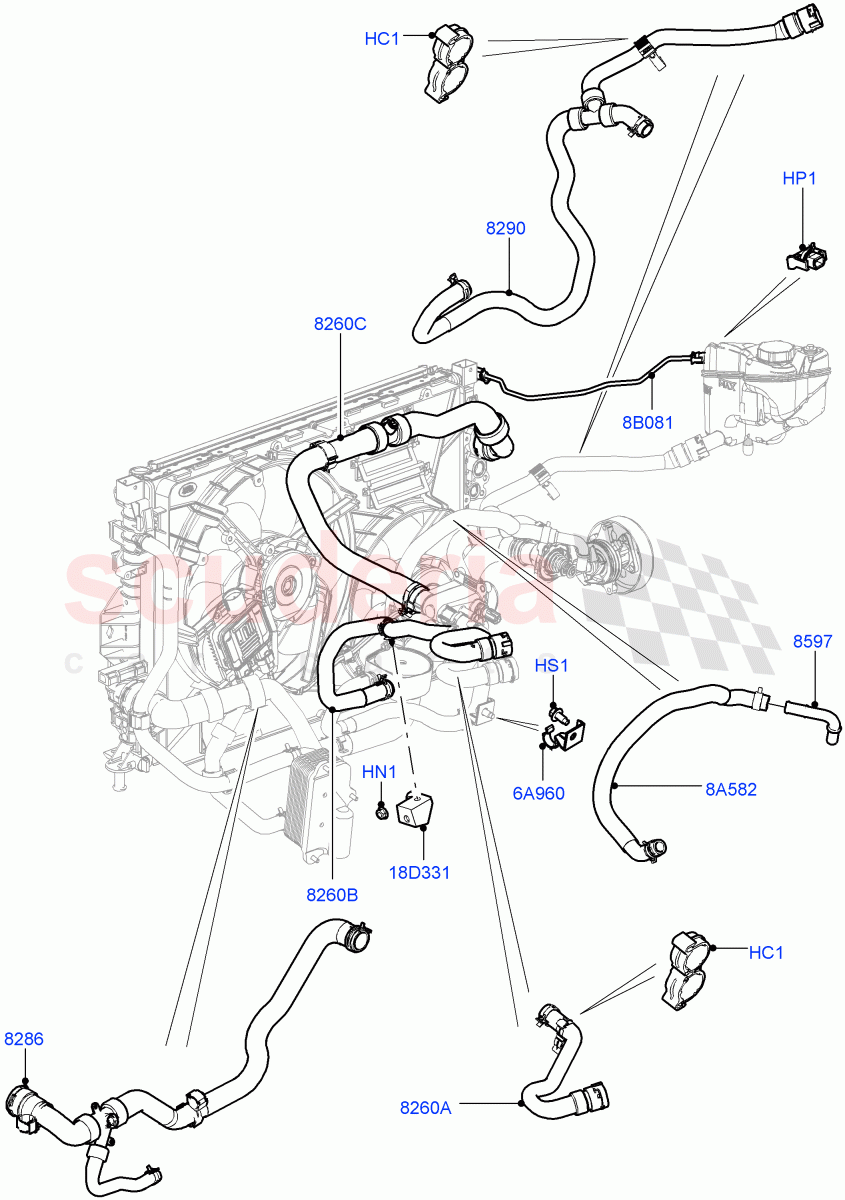

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003010	CLIP	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044290	PLUG - EXPANSION TANK	$7.93	To Order

Photo	Part No	Description	Price (each)	Stock
	4556037	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049637	HOSE - RADIATOR	$195.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035435	HOSE - COOLING SYSTEM	$76.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025015	CONNECTION - WATER	$50.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024255	BRACKET - COOLING HOSE	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044291	HOSE - COOLING SYSTEM	$23.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054981	HOSE - OUTLET	$53.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094509	HOSE - RADIATOR	$66.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062305	HOSE - COOLING SYSTEM	$58.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024251	HOSE - DEGAS COOLING SYSTEM	$15.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048482	BRACKET - HEATER HOSE	$3.88	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR003010	CLIP	LR003010 CLIP 19/19MM, Double / From: GT000001	$5.54	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: GT000001 IN STOCK	$0.61	1
HP1	LR044290	PLUG - EXPANSION TANK	LR044290 PLUG - EXPANSION TANK Expansion Tank / From: GT000001	$7.93	1
HS1	4556037	SCREW	4556037 SCREW Hexagonal Head, M10 x 16MM / From: GT000001	$0.73	1
6A960	LR024255	BRACKET - COOLING HOSE	LR024255 BRACKET - COOLING HOSE Oil Cooler Hose, Outlet / From: GT000001	$2.20	1
8A582	LR062305	HOSE - COOLING SYSTEM	LR062305 HOSE - COOLING SYSTEM From: GT000001	$58.19	1
8B081	LR024251	HOSE - DEGAS COOLING SYSTEM	LR024251 HOSE - DEGAS COOLING SYSTEM Radiator Degas Line, Top Of Radiator To Top Of Supply Tank / From: GT000001	$15.05	1
18D331	LR048482	BRACKET - HEATER HOSE	LR048482 BRACKET - HEATER HOSE Inlet, Oil Cooler Hose / From: GT000001	$3.88	1
8260A	LR044291	HOSE - COOLING SYSTEM	LR044291 HOSE - COOLING SYSTEM Heater, Inlet / From: GT000001	$23.31	1
8260B	LR054981	HOSE - OUTLET	LR054981 HOSE - OUTLET Oil Cooler Inlet Pipe / From: GT000001	$53.65	1
8260C	LR094509	HOSE - RADIATOR	LR094509 HOSE - RADIATOR Radiator Hose, Top / From: GT000001	$66.68	1
8286	LR049637	HOSE - RADIATOR	LR049637 HOSE - RADIATOR Bottom, Less Sensor, Less Sensors, Radiator Hose / From: GT000001	$195.89	1
8290	LR035435	HOSE - COOLING SYSTEM	LR035435 HOSE - COOLING SYSTEM Oil Cooler Outlet Pipe / From: GT000001	$76.02	1
8597	LR025015	CONNECTION - WATER	LR025015 CONNECTION - WATER Outlet, Water Pump / From: GT000001	$50.54	1
