Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, 2.0L 16V TIVCT T/C 240PS Petrol)...

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, 2.0L 16V TIVCT T/C 240PS Petrol)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003010 CLIP $5.54 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.61 To Order
Photo Part No Description Price (each) Stock
LR044290 PLUG - EXPANSION TANK $7.93 To Order
Photo Part No Description Price (each) Stock
4556037 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
LR049637 HOSE - RADIATOR $195.89 To Order
LR094510 HOSE - RADIATOR $201.26 To Order
Photo Part No Description Price (each) Stock
LR035435 HOSE - COOLING SYSTEM $76.02 To Order
Photo Part No Description Price (each) Stock
LR025015 CONNECTION - WATER $50.54 To Order
Photo Part No Description Price (each) Stock
LR024255 BRACKET - COOLING HOSE $2.20 To Order
Photo Part No Description Price (each) Stock
LR044291 HOSE - COOLING SYSTEM $23.31 To Order
Photo Part No Description Price (each) Stock
LR054981 HOSE - OUTLET $53.65 To Order
Photo Part No Description Price (each) Stock
LR094509 HOSE - RADIATOR $66.68 To Order
Photo Part No Description Price (each) Stock
LR053009 HOSE - COOLING SYSTEM $58.19 To Order
LR062305 HOSE - COOLING SYSTEM $58.19 To Order
Photo Part No Description Price (each) Stock
LR024251 HOSE - DEGAS COOLING SYSTEM $15.05 To Order
LR060347 HOSE - DEGAS COOLING SYSTEM $44.86 To Order
LR060347 HOSE - DEGAS COOLING SYSTEM $44.86 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $57.30 To Order
Photo Part No Description Price (each) Stock
LR048482 BRACKET - HEATER HOSE $3.88 To Order
View All

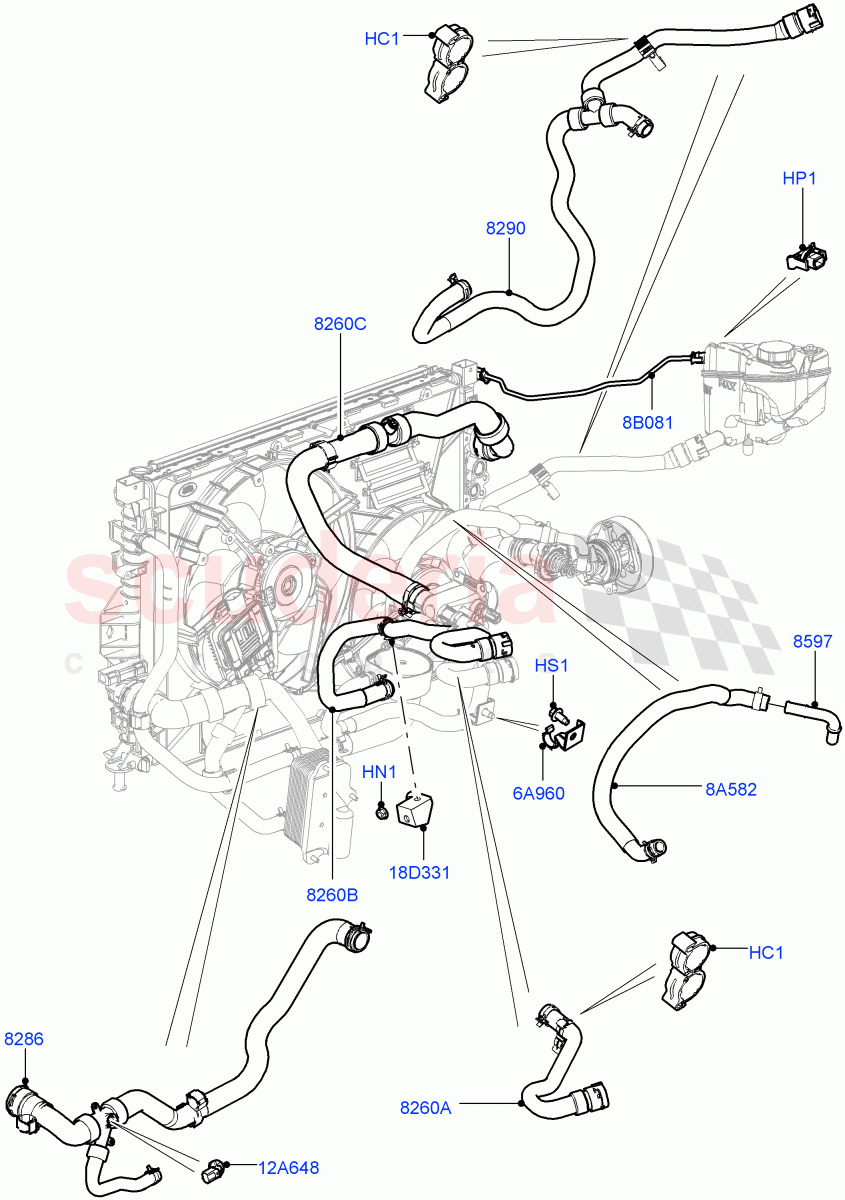

Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, 2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR003010
CLIP
19/19MM, Double / From: EH000001 		$5.54 1
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: EH000001 		$0.61 1
HP1 LR044290
PLUG - EXPANSION TANK
Expansion Tank / From: EH000001 		$7.93 1
HS1 4556037
SCREW
Hexagonal Head, M10 x 16MM / From: EH000001 		$0.73 1
6A960 LR024255
BRACKET - COOLING HOSE
Oil Cooler Hose, Outlet / From: EH000001 		$2.20 1
8A582 LR053009
HOSE - COOLING SYSTEM
From: EH000001 / To: EH856720 		$58.19 1
8A582 LR062305
HOSE - COOLING SYSTEM
From: EH856721 		$58.19 1
8B081 LR024251
HOSE - DEGAS COOLING SYSTEM
Radiator Degas Line, Top Of Radiator To Top Of Supply Tank / From: EH000001 / To: EH999999 		$15.05 1
8B081 LR060347
HOSE - DEGAS COOLING SYSTEM
Radiator Degas Line, Top Of Radiator To Top Of Supply Tank / From: FH000001 / To: FH038974 		$44.86 1
8B081 LR060347
HOSE - DEGAS COOLING SYSTEM
Radiator Degas Line, Top Of Radiator To Top Of Supply Tank / From: FH038975 		$44.86 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 		$57.30 1
18D331 LR048482
BRACKET - HEATER HOSE
Inlet, Oil Cooler Hose / From: EH000001 		$3.88 1
8260A LR044291
HOSE - COOLING SYSTEM
Heater, Inlet / From: EH000001 		$23.31 1
8260B LR054981
HOSE - OUTLET
Oil Cooler Inlet Pipe / From: EH000001 		$53.65 1
8260C LR094509
HOSE - RADIATOR
Radiator Hose, Top / From: EH000001 		$66.68 1
8286 LR049637
HOSE - RADIATOR
2.0L 16V TIVCT T/C 240PS Petrol / Bottom, Less Sensor, Less Sensors, Radiator Hose / From: EH000001 		$195.89 1
8286 LR094510
HOSE - RADIATOR
2.0L 16V TIVCT T/C Gen2 Petrol / Bottom, Includes Sensor, Radiator Hose / From: EH000001 		$201.26 1
8290 LR035435
HOSE - COOLING SYSTEM
Oil Cooler Outlet Pipe / From: EH000001 		$76.02 1
8597 LR025015
CONNECTION - WATER
Outlet, Water Pump / From: EH000001 		$50.54 1
