Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V)...

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501000 BOLT AND WASHER - HEX.HEAD $1.12 To Order
Photo Part No Description Price (each) Stock
LR041259 CLIP - HOSE $5.63 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.19 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.32 To Order
Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR006715 RADIATOR $620.24 To Order
Photo Part No Description Price (each) Stock
LR000243 CAP - RADIATOR $11.17 To Order
Photo Part No Description Price (each) Stock
LR002662 PLUG - RADIATOR DRAIN $5.39 To Order
Photo Part No Description Price (each) Stock
LR000242 INSULATOR - RADIATOR SUPPORT $1.66 To Order
Photo Part No Description Price (each) Stock
LR007399 INSULATOR - RUBBER $1.59 To Order
Photo Part No Description Price (each) Stock
LR024296 TANK - RADIATOR OVERFLOW $100.71 To Order
Photo Part No Description Price (each) Stock
LR044300 BRACKET - RADIATOR UPPER $62.09 To Order
Photo Part No Description Price (each) Stock
LR024295 SUPPORT - RADIATOR $106.30 To Order
Photo Part No Description Price (each) Stock
LR045248 MOTOR AND FAN - ENGINE COOLING $911.60 To Order
Photo Part No Description Price (each) Stock
LR000582 PIN - RADIATOR MOUNTING $52.89 To Order
Photo Part No Description Price (each) Stock
LR000930 SENSOR - COOLANT LEVEL $36.89 To Order
Photo Part No Description Price (each) Stock
LR024294 PAD - FOAM $5.70 To Order
View All

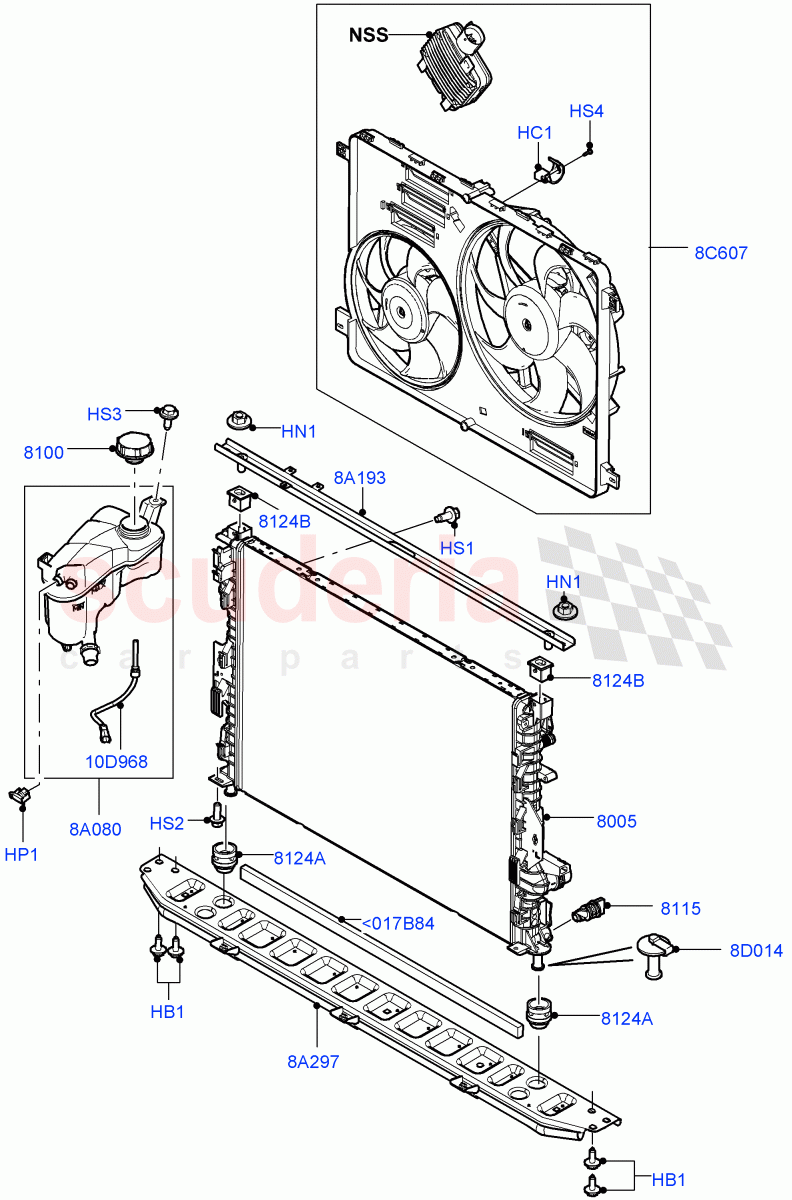

Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR024294
PAD - FOAM
Self Adhesive / From: GT000001 		$5.70 1
HB1 RYG501000
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 21MM / From: GT000001 		$1.12 6
HC1 LR041259
CLIP - HOSE
Single / From: GT000001 		$5.63 1
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: GT000001 		$2.97 2
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: GT000001 		$3.31 1
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: GT000001 		$1.19 4
HS3 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: GT000001 		$1.32 6
HS4 RYP500770
SCREW
5 X 16MM, Torx / From: GT000001 		$0.59 1
8A080 LR024296
TANK - RADIATOR OVERFLOW
From: GT000001 		$100.71 1
8A193 LR044300
BRACKET - RADIATOR UPPER
Upper / From: GT000001 		$62.09 1
8A297 LR024295
SUPPORT - RADIATOR
Lower / From: GT000001 		$106.30 1
8C607 LR045248
MOTOR AND FAN - ENGINE COOLING
From: GT000001 		$911.60 1
8D014 LR000582
PIN - RADIATOR MOUNTING
Repair Kit / From: GT000001 		$52.89 2
10D968 LR000930
SENSOR - COOLANT LEVEL
From: GT000001 		$36.89 1
8005 LR006715
RADIATOR
From: GT000001 		$620.24 1
8100 LR000243
CAP - RADIATOR
From: GT000001 		$11.17 1
8115 LR002662
PLUG - RADIATOR DRAIN
From: GT000001 		$5.39 1
8124A LR000242
INSULATOR - RADIATOR SUPPORT
Lower / From: GT000001 		$1.66 2
8124B LR007399
INSULATOR - RUBBER
Upper / From: GT000001 		$1.59 2
