Fuses, Holders And Circuit Breakers (Passenger Compartment) (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Fuses, Holders And Circuit Breakers (Passenger Compartment) (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYC500010 CLIP $1.49 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.58 To Order
Photo Part No Description Price (each) Stock
LR003737 FUSE $0.95 To Order
LR003739 FUSE $0.95 To Order
LR003740 FUSE $0.49 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR077223 BOX - FUSE $774.84 To Order
LR066892 BOX - FUSE $729.17 To Order
LR070837 BOX - FUSE $372.56 To Order
Photo Part No Description Price (each) Stock
LR031210 BRACKET - RELAY $7.36 To Order
Photo Part No Description Price (each) Stock
LR050991 BRACKET - RELAY $70.29 To Order
LR079312 BRACKET - MODULE $45.44 To Order
View All

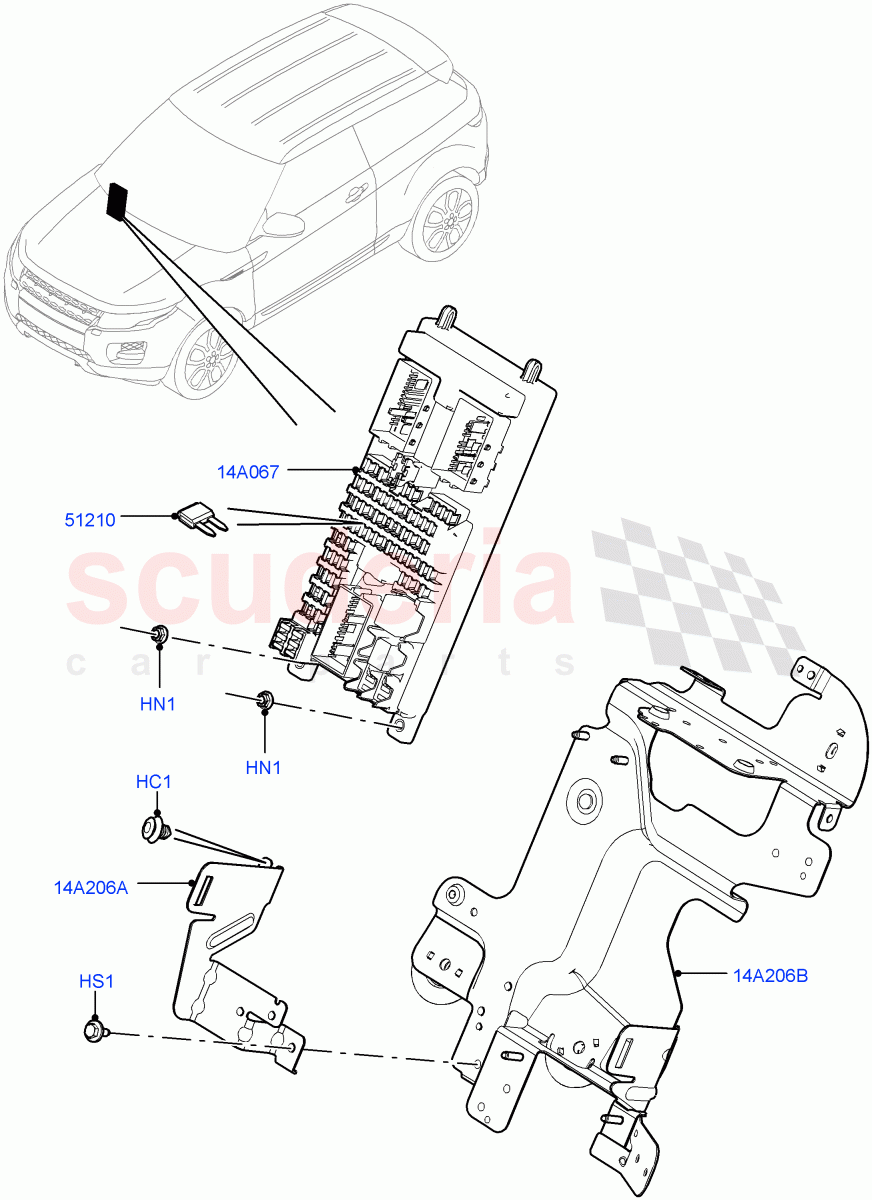

Fuses, Holders And Circuit Breakers (Passenger Compartment) (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 RYC500010
CLIP
Push Pin / From: EG000001 		$1.49 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EG000001
IN STOCK 		$1.45 2
HS1 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: EG000001 		$0.58 1
14A067 LR077223
BOX - FUSE
From: EG000001 / To: FG100115 		$774.84 1
14A067 LR066892
BOX - FUSE
From: FG100116 / To: GG134737 		$729.17 1
14A067 LR070837
BOX - FUSE
From: GG134738 		$372.56 1
14A206A LR031210
BRACKET - RELAY
Fuse Panel Junction Block In Passenger Compartment / From: EG000001 		$7.36 1
14A206B LR050991
BRACKET - RELAY
Fuse Panel Junction Block In Passenger Compartment / From: EG000001 / To: GG134737 		$70.29 1
14A206B LR079312
BRACKET - MODULE
Fuse Panel Junction Block In Passenger Compartment / From: GG134738 		$45.44 1
51210 LR003737
FUSE
5 AMP, Tan Minifuse / From: EG000001 		$0.95 1
51210 LR003739
FUSE
10 AMP, Red Minifuse / From: EG000001 		$0.95 1
51210 LR003740
FUSE
15 AMP, Blue Minifuse / From: EG000001 		$0.49 1
51210 LR003741
FUSE
20 AMP, Yellow Minifuse / From: EG000001 		$0.53 1
51210 LR003742
FUSE
25 AMP, Natural Minifuse / From: EG000001 		$4.75 1
51210 LR003743
FUSE
30 AMP, Green Minifuse / From: EG000001 		$4.75 1
51210 LR003738
FUSE
7.5 AMP, Brown Minifuse / From: EG000001 		$1.00 1
