Battery And Mountings (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Battery And Mountings (Itatiaia (Brazil)) ((V) FROMGT000001)

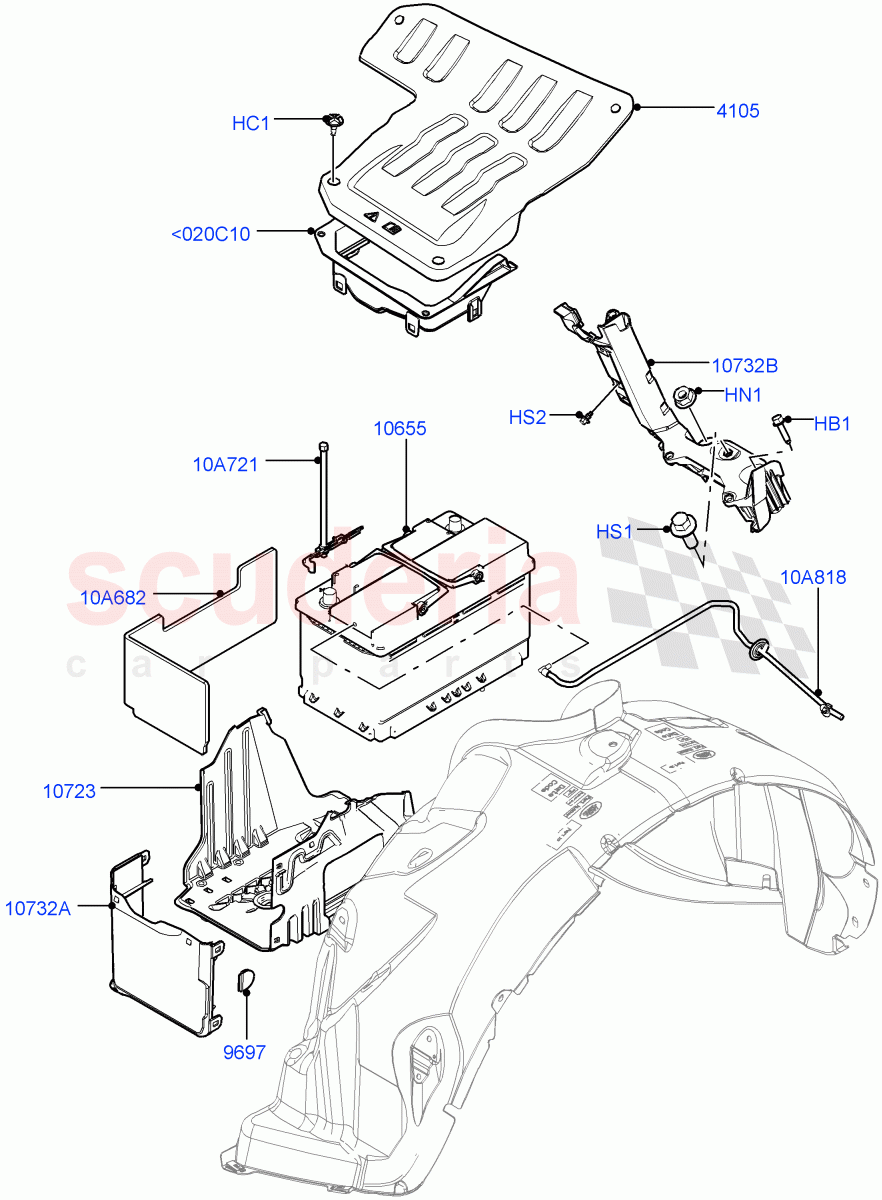

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR026133	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024316	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024171	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079167	COVER - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003113	GROMMET - BATTERY BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032876	BATTERY	Enquire	To Order
	LR076697	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023753	TRAY - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018356	SUPPORT - BATTERY TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024378	SUPPORT - BATTERY TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019012	HEAT SHIELD - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038129	BRACKET - BATTERY HOLD DOWN	Enquire	To Order
	LR034091	BRACKET - BATTERY HOLD DOWN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047576	TUBE - VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027975	BRACKET - BATTERY BOX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<020C10	LR027975	BRACKET - BATTERY BOX	LR027975 BRACKET - BATTERY BOX From: GT000001	-	1	Enquire
HB1	LR026133	BOLT	LR026133 BOLT M8 X 30 / From: GT000001	-	1	Enquire
HC1	LR024316	PIN	LR024316 PIN Battery Cover, Rivet Blind 9.4 X 13 / From: GT000001	-	4	Enquire
HN1	LR024171	NUT	LR024171 NUT Domed Type, M8 / From: GT000001	-	1	Enquire
HS1	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: GT000001	-	4	Enquire
HS2	LR007651	SCREW	LR007651 SCREW M6 X 10MM / From: GT000001	-	3	Enquire
10A682	LR019012	HEAT SHIELD - BATTERY	LR019012 HEAT SHIELD - BATTERY With Battery Insulation / From: GT000001	-	1	Enquire
10A721	LR038129	BRACKET - BATTERY HOLD DOWN	LR038129 BRACKET - BATTERY HOLD DOWN Less Fuel Economy Pack / Bolt And Bracket / From: GT000001	-	1	Enquire
10A721	LR034091	BRACKET - BATTERY HOLD DOWN	LR034091 BRACKET - BATTERY HOLD DOWN With Fuel Economy Pack / Bolt And Bracket / From: GT000001	-	1	Enquire
10A818	LR047576	TUBE - VENTILATION	LR047576 TUBE - VENTILATION LHD, Starter - Stop/Start System / Battery / From: GT000001	-	1	Enquire
4105	LR079167	COVER - BATTERY	LR079167 COVER - BATTERY From: GT000001	-	1	Enquire
9697	LR003113	GROMMET - BATTERY BOX	LR003113 GROMMET - BATTERY BOX From: GT000001	-	1	Enquire
10655	LR032876	BATTERY	LR032876 BATTERY Less Fuel Economy Pack, Starter - Stop/Start System / 12V-80AH / From: GT000001	-	1	Enquire
10655	LR076697	BATTERY	LR076697 BATTERY With Fuel Economy Pack / 12V-70AH, 760A, AGM(Absorbed Glass Mat) / From: GT000001	-	1	Enquire
10723	LR023753	TRAY - BATTERY	LR023753 TRAY - BATTERY From: GT000001	-	1	Enquire
10732A	LR018356	SUPPORT - BATTERY TRAY	LR018356 SUPPORT - BATTERY TRAY From: GT000001	-	1	Enquire
10732B	LR024378	SUPPORT - BATTERY TRAY	LR024378 SUPPORT - BATTERY TRAY From: GT000001	-	1	Enquire
