Anti-Theft Alarm Systems (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Anti-Theft Alarm Systems (Changsu (China)) ((V) FROMEG000001)

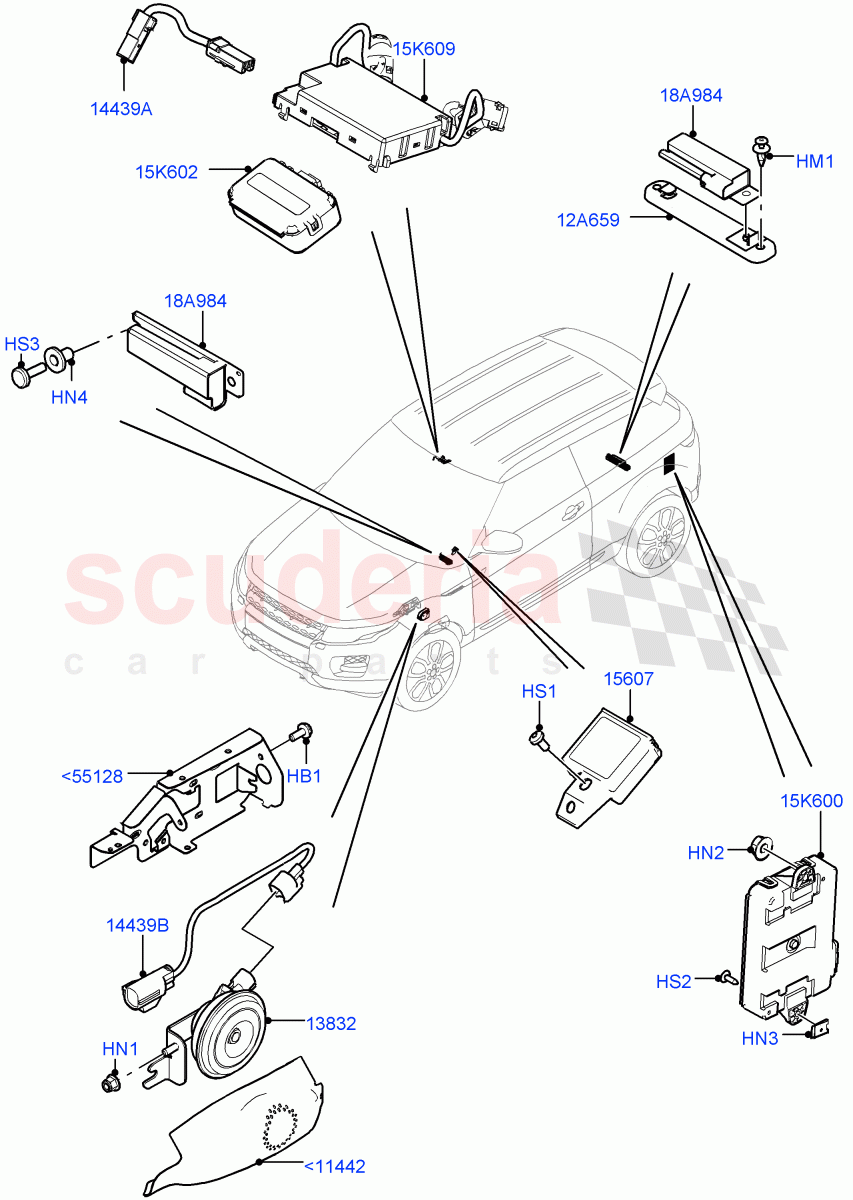

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR031680 BOLT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
RYQ500040 FASTENER Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
DYH500190 NUT - FLANGED Enquire To Order
LR080278 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
RYP500730 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR068413 HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR020114 TRANSCEIVER - ANTI THEFT Enquire To Order
Photo Part No Description Price (each) Stock
LR031729 HEAT SHIELD - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR039639 BRACKET - HORN Enquire To Order
LR108638 BRACKET - HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR075053 BRACKET - AERIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR033377 WIRE - SCANNING MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR028317 WIRING - SECURITY SOUNDER Enquire To Order
Photo Part No Description Price (each) Stock
LR059763 MODULE - PASSIVE START Enquire To Order
LR059765 MODULE - PASSIVE START Enquire To Order
LR071385 Module Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR039648 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
LR080282 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR053183 SENSOR AND BRACKET - INTERIOR SCAN Enquire To Order
Photo Part No Description Price (each) Stock
LR012709 ANTENNA - LF Enquire To Order
View All
Anti-Theft Alarm Systems (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11442 LR031729
HEAT SHIELD - EXHAUST
Siren / From: EG000001 		- 1 Enquire
<55128 LR039639
BRACKET - HORN
Siren / From: EG000001 / To: HG162316 		- 1 Enquire
<55128 LR108638
BRACKET - HORN
Siren / From: HG162317 		- 1 Enquire
HB1 LR031680
BOLT - SPECIAL
M6 X 14MM, Special Bolt / From: EG000001 		- 2 Enquire
HM1 RYQ500040
FASTENER
Keyless Entry/Start - Passive / 6.25 x 1.6/6MM / From: GG134738 		- 2 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EG000001 		- 2 Enquire
HN2 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: EG000001 		- 1 Enquire
HN3 DYH500190
NUT - FLANGED
Nut "U" Spring, 		- 1 Enquire
HN3 LR080278
NUT - FLANGED
Nut "U" Spring, 		- 1 Enquire
HN4 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal / From: EG000001 		- 12 Enquire
HS1 RYP500730
SCREW
4 x 14MM, Torx / From: EG000001 		- 1 Enquire
HS2 PYP500140
SCREW
4.2 x 13MM, Torx / From: EG000001 		- 1 Enquire
HS3 VYP500060
SCREW
4.8 X 16MM, Torx / From: EG000001 		- 4 Enquire
12A659 LR075053
BRACKET - AERIAL
Keyless Entry/Strt-Pass-Jap Script / From: GG134738 		- 1 Enquire
15K600 LR059763
MODULE - PASSIVE START
With Keyless Start / From: EG000001 / To: FG100829 		- 1 Enquire
15K600 LR059765
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: EG000001 / To: FG100829 		- 1 Enquire
15K600 LR071385
Module
With Keyless Start / From: FG100830 / To: FG109225 		- 1 Enquire
15K600 LR067251
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: FG100830 / To: FG118913 		- 1 Enquire
15K600 LR071651
MODULE - PASSIVE START
With Keyless Start / From: FG109226 / To: GG134737 		- 1 Enquire
15K600 LR071386
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: FG118914 / To: GG134737 		- 1 Enquire
15K600 LR080756
MODULE - PASSIVE START
With Keyless Start / From: GG134738 		- 1 Enquire
15K600 LR080744
MODULE - PASSIVE START
Keyless Entry/Strt-Pass-Jap Script / From: GG134738 		- 1 Enquire
15K602 LR039648
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: EG000001 / To: GG136237 		- 1 Enquire
15K602 LR080282
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: GG136238 		- 1 Enquire
15K609 LR053183
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / From: EG000001 		- 1 Enquire
18A984 LR012709
ANTENNA - LF
Keyless Entry/Start - Passive / Remote Keyless Antenna / From: EG000001 		- 4 Enquire
13832 LR068413
HORN
Securty Siren - Less Battery Backup / From: EG000001 		- 1 Enquire
14439A LR033377
WIRE - SCANNING MODULE
Interior Motion Sensor / From: EG000001 		- 1 Enquire
14439B LR028317
WIRING - SECURITY SOUNDER
Securty Siren - Less Battery Backup / From: EG000001 		- 1 Enquire
15607 LR020114
TRANSCEIVER - ANTI THEFT
With Engine Immobiliser / From: EG000001 		- 1 Enquire
