Headlamps And Front Flasher Lamps (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Headlamps And Front Flasher Lamps (Changsu (China)) ((V) FROMEG000001)

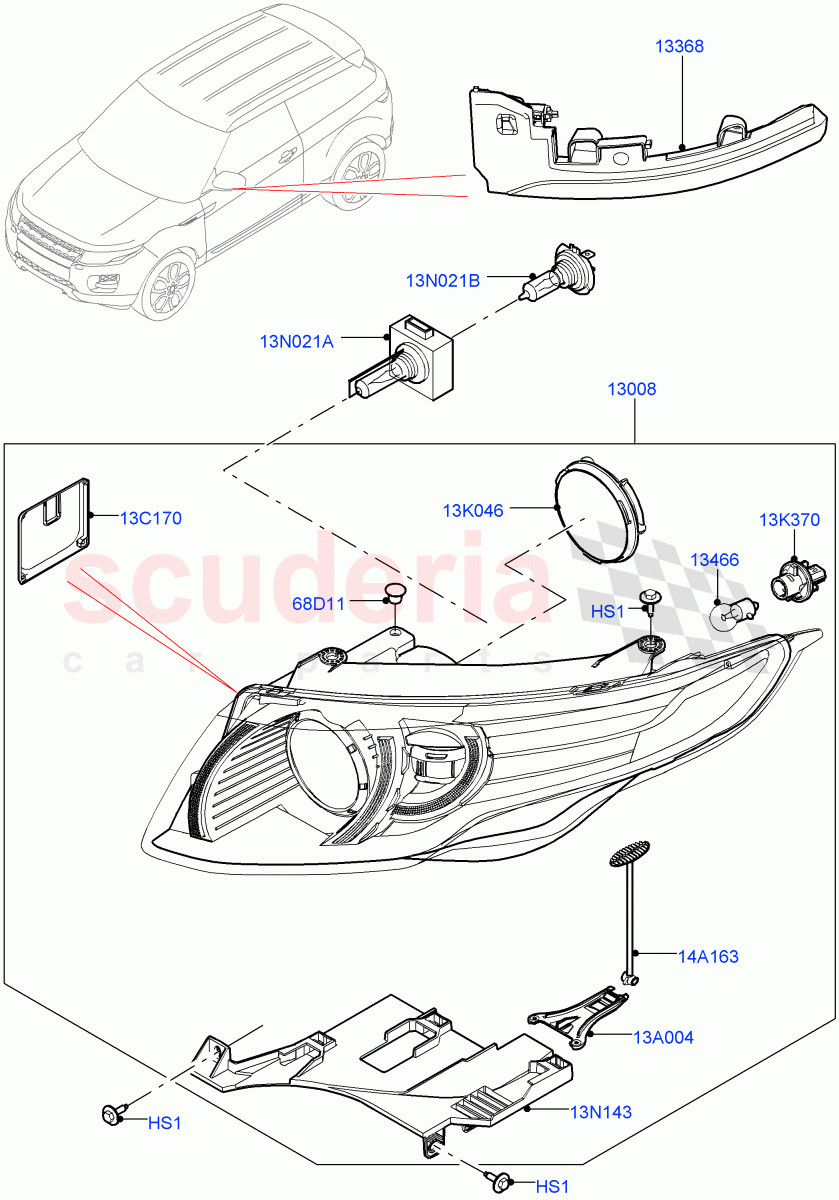

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048047	HEADLAMP AND FLASHER	Enquire	To Order
	LR048049	HEADLAMP AND FLASHER	Enquire	To Order
	LR048056	HEADLAMP AND FLASHER	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR048351	LAMP - EXTERIOR MIRROR	Enquire	To Order
	LR048352	LAMP - EXTERIOR MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044460	BULB - FLASHER LAMP	Enquire	To Order
	LR095530	BULB - FLASHER LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025160	CAP - SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025751	BRACKET - HEADLAMP MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025157	BALLAST - HEADLAMP	Enquire	To Order
	LR082270	BALLAST - HEADLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025156	COVER - BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025753	HOLDER - BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025744	PLATE - HEADLAMP MOUNTING	Enquire	To Order
	LR044484	PLATE - HEADLAMP MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025749	PLUNGER - HEADLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009163	BULB - HEADLAMP MAIN BEAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044458	BULB	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: EG000001	-	8	Enquire
13A004	LR025751	BRACKET - HEADLAMP MOUNTING	LR025751 BRACKET - HEADLAMP MOUNTING RH/LH / From: EG000001	-	2	Enquire
13C170	LR025157	BALLAST - HEADLAMP	LR025157 BALLAST - HEADLAMP With BI - Xenon Headlamps / From: EG000001 / To: GG134737	-	1	Enquire
13C170	LR082270	BALLAST - HEADLAMP	LR082270 BALLAST - HEADLAMP With BI - Xenon Headlamps / From: GG134738	-	1	Enquire
13K046	LR025156	COVER - BULB	LR025156 COVER - BULB From: EG000001	-	1	Enquire
13K370	LR025753	HOLDER - BULB	LR025753 HOLDER - BULB From: EG000001	-	1	Enquire
13N021A	LR009163	BULB - HEADLAMP MAIN BEAM	LR009163 BULB - HEADLAMP MAIN BEAM With Adaptive Headlamps Bi Xenon / D3S, High Intensity Discharge, With Ignitor / From: EG000001	-	1	Enquire
13N021B	LR044458	BULB	LR044458 BULB With Halogen Headlamp / From: EG000001 / To: GG134738	-	2	Enquire
13N143	LR025744	PLATE - HEADLAMP MOUNTING	LR025744 PLATE - HEADLAMP MOUNTING RH / From: EG000001	-	1	Enquire
13N143	LR044484	PLATE - HEADLAMP MOUNTING	LR044484 PLATE - HEADLAMP MOUNTING LH / From: EG000001	-	1	Enquire
14A163	LR025749	PLUNGER - HEADLAMP	LR025749 PLUNGER - HEADLAMP RH/LH / From: EG000001	-	2	Enquire
68D11	LR025160	CAP - SCREW	LR025160 CAP - SCREW From: EG000001	-	2	Enquire
13008	LR048047	HEADLAMP AND FLASHER	LR048047 HEADLAMP AND FLASHER With BI - Xenon Headlamps / RH / From: EG000001 / To: GG134737	-	1	Enquire
13008	LR048049	HEADLAMP AND FLASHER	LR048049 HEADLAMP AND FLASHER With Adaptive Headlamps Bi Xenon / RH / From: EG000001 / To: GG134737	-	1	Enquire
13008	LR048056	HEADLAMP AND FLASHER	LR048056 HEADLAMP AND FLASHER With BI - Xenon Headlamps / LH / From: EG000001 / To: GG134737	-	1	Enquire
13008	LR048058	HEADLAMP AND FLASHER	LR048058 HEADLAMP AND FLASHER With Adaptive Headlamps Bi Xenon / LH / From: EG000001 / To: GG134737	-	1	Enquire
13008	LR083552	HEADLAMP AND FLASHER	LR083552 HEADLAMP AND FLASHER Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / RH / From: GG134738 / To: GG138270	-	1	Enquire
13008	LR084160	HEADLAMP AND FLASHER	LR084160 HEADLAMP AND FLASHER Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / LH / From: GG134738 / To: GG146040	-	1	Enquire
13008	LR043656	Headlamp	LR043656 Headlamp Smoked Glass Front Lamp Lens, With Adaptive Headlamps Bi Xenon / LH / From: EG000001 / To: GG134737	-	1	Enquire
13008	LR077380	HEADLAMP AND FLASHER	LR077380 HEADLAMP AND FLASHER Smoked Glass Front Lamp Lens, With Adaptive Headlamps Bi Xenon / RH / From: EG000001 / To: GG134737	-	1	Enquire
13008	LR077946	HEADLAMP AND FLASHER	LR077946 HEADLAMP AND FLASHER Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / RH / From: GG134738 / To: GG135269	-	1	Enquire
13008	LR077952	HEADLAMP AND FLASHER	LR077952 HEADLAMP AND FLASHER Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / LH / From: GG134738 / To: GG135269	-	1	Enquire
13008	LR083554	HEADLAMP AND FLASHER	LR083554 HEADLAMP AND FLASHER Adaptive Led Headlamps, Clear Glass Front Lamp Lens / RH / From: GG134738 / To: GG135177	-	1	Enquire
13008	LR084162	HEADLAMP AND FLASHER	LR084162 HEADLAMP AND FLASHER Adaptive Led Headlamps, Clear Glass Front Lamp Lens / LH / From: GG134738 / To: GG135177	-	1	Enquire
13008	LR084569	HEADLAMP AND FLASHER	LR084569 HEADLAMP AND FLASHER Adaptive Led Headlamps, Clear Glass Front Lamp Lens / LH / From: GG135178	-	1	Enquire
13008	LR084572	HEADLAMP AND FLASHER	LR084572 HEADLAMP AND FLASHER Adaptive Led Headlamps, Clear Glass Front Lamp Lens / RH / From: GG135178 / To: HG161788	-	1	Enquire
13008	LR084684	HEADLAMP AND FLASHER	LR084684 HEADLAMP AND FLASHER Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / RH / From: GG135270 / To: HG161787	-	1	Enquire
13008	LR084690	HEADLAMP AND FLASHER	LR084690 HEADLAMP AND FLASHER Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / LH / From: GG135270	-	1	Enquire
13008	LR084570	HEADLAMP AND FLASHER	LR084570 HEADLAMP AND FLASHER Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / RH / From: GG138271	-	1	Enquire
13008	LR112561	HEADLAMP AND FLASHER	LR112561 HEADLAMP AND FLASHER Adaptive Led Headlamps, Clear Glass Front Lamp Lens / RH / From: HG161789	-	1	Enquire
13008	LR087244	HEADLAMP AND FLASHER	LR087244 HEADLAMP AND FLASHER Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / LH / From: GG146041	-	1	Enquire
13008	LR112564	HEADLAMP AND FLASHER	LR112564 HEADLAMP AND FLASHER Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / RH / From: HG161788	-	1	Enquire
13368	LR048351	LAMP - EXTERIOR MIRROR	LR048351 LAMP - EXTERIOR MIRROR RH / From: EG000001	-	1	Enquire
13368	LR048352	LAMP - EXTERIOR MIRROR	LR048352 LAMP - EXTERIOR MIRROR LH / From: EG000001	-	1	Enquire
13466	LR044460	BULB - FLASHER LAMP	LR044460 BULB - FLASHER LAMP Indicator Bulb, PSY24W / From: EG000001 / To: HG161787	-	1	Enquire
13466	LR095530	BULB - FLASHER LAMP	LR095530 BULB - FLASHER LAMP Indicator Bulb, PSY24W / From: HG161788	-	1	Enquire
