Battery And Mountings (Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Battery And Mountings (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR026133 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR024316 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR024171 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR007651 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR026208 COVER - BATTERY Enquire To Order
LR079167 COVER - BATTERY Enquire To Order
LR122951 COVER - BATTERY Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029528 INSULATOR - BATTERY BOX SUPPORT Enquire To Order
LR089476 INSULATOR - BATTERY BOX SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR003113 GROMMET - BATTERY BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR032354 BATTERY Enquire To Order
LR032820 BATTERY Enquire To Order
LR038128 BATTERY Enquire To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR023753 TRAY - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR018356 SUPPORT - BATTERY TRAY Enquire To Order
Photo Part No Description Price (each) Stock
LR024378 SUPPORT - BATTERY TRAY Enquire To Order
Photo Part No Description Price (each) Stock
LR019012 HEAT SHIELD - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR034091 BRACKET - BATTERY HOLD DOWN Enquire To Order
LR038129 BRACKET - BATTERY HOLD DOWN Enquire To Order
LR012048 BRACKET - BATTERY HOLD DOWN Enquire To Order
Photo Part No Description Price (each) Stock
LR031743 TUBE - VENTILATION Enquire To Order
LR047576 TUBE - VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR027975 BRACKET - BATTERY BOX Enquire To Order
View All

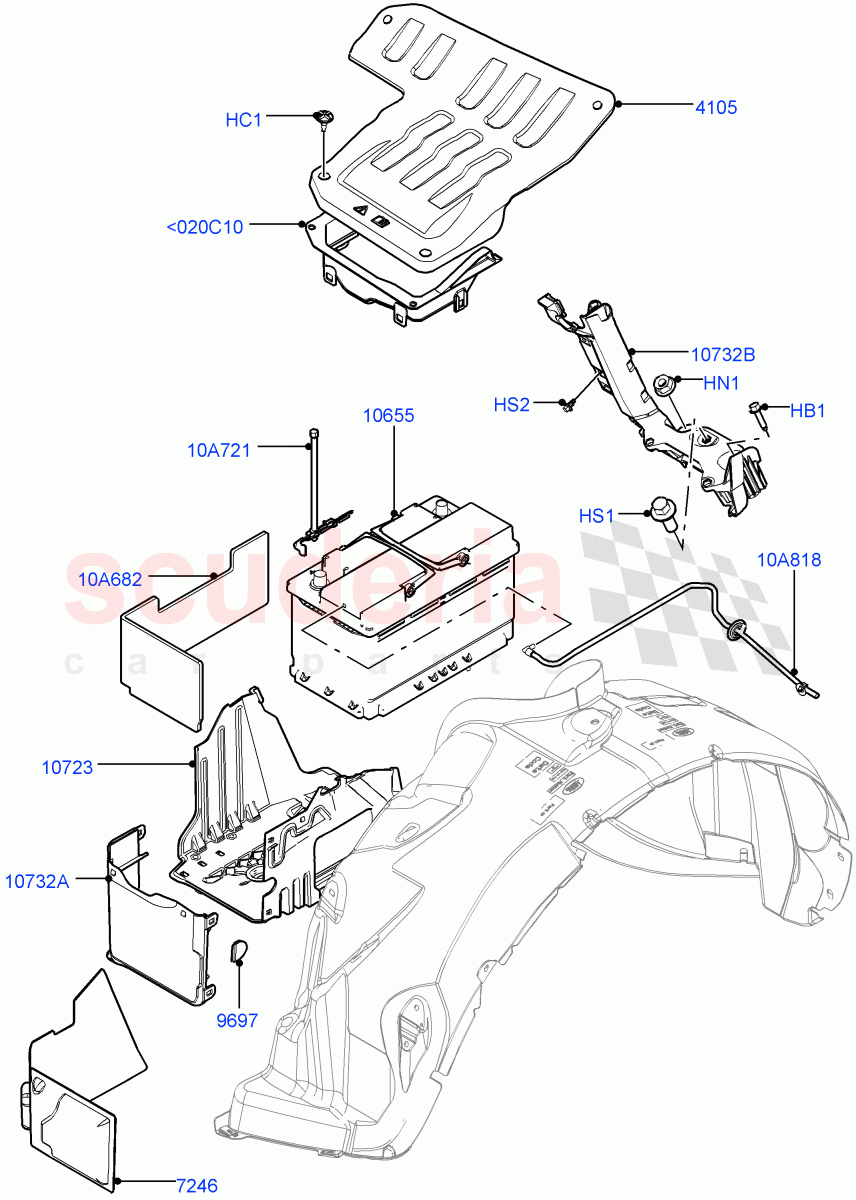

Battery And Mountings (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<020C10 LR027975
BRACKET - BATTERY BOX 		- 1 Enquire
HB1 LR026133
BOLT
M8 X 30 		- 1 Enquire
HC1 LR024316
PIN
Battery Cover, Rivet Blind 9.4 X 13 		- 4 Enquire
HN1 LR024171
NUT
Domed Type, M8 		- 1 Enquire
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM 		- 4 Enquire
HS2 LR007651
SCREW
M6 X 10MM 		- 3 Enquire
10A682 LR019012
HEAT SHIELD - BATTERY
With Battery Insulation 		- 1 Enquire
10A721 LR034091
BRACKET - BATTERY HOLD DOWN
With Fuel Economy Pack / Bolt And Bracket / From: CH630578 		- 1 Enquire
10A721 LR038129
BRACKET - BATTERY HOLD DOWN
Less Fuel Economy Pack / Bolt And Bracket / From: CH630578 		- 1 Enquire
10A721 LR012048
BRACKET - BATTERY HOLD DOWN
Bolt And Bracket / To: CH630577 		- 1 Enquire
10A818 LR031743
TUBE - VENTILATION
To: DH999999 		- 1 Enquire
10A818 LR047576
TUBE - VENTILATION
LHD, Starter - Stop/Start System / Battery / From: EH000001 		- 1 Enquire
4105 LR026208
COVER - BATTERY
To: GH080180 		- 1 Enquire
4105 LR079167
COVER - BATTERY
From: GH080181 / To: KH326782 		- 1 Enquire
4105 LR122951
COVER - BATTERY
From: KH326783 / To: KH328272 		- 1 Enquire
4105 LR124277
COVER - BATTERY
From: KH328273 		- 1 Enquire
7246 LR029528
INSULATOR - BATTERY BOX SUPPORT
2.2L CR DI 16V Diesel / To: GH166742 		- 1 Enquire
7246 LR089476
INSULATOR - BATTERY BOX SUPPORT
2.2L CR DI 16V Diesel / From: GH166743 		- 1 Enquire
9697 LR003113
GROMMET - BATTERY BOX 		- 1 Enquire
10655 LR032354
BATTERY
Standard Electric Starter Motor, With Fuel Fired Heater / 12V-80AH, 700A, Flooded Battery / To: CH640817 		- 1 Enquire
10655 LR032820
BATTERY
With Fuel Economy Pack / 12V-70AH, 760A, AGM(Absorbed Glass Mat) / From: CH631090 / To: FH959552 		- 1 Enquire
10655 LR038128
BATTERY
Standard Electric Starter Motor, With Ptc Heater / 12V-80AH, 700A, Flooded Battery / From: CH640818 		- 1 Enquire
10655 LR032876
BATTERY
Fuel Fired Heater With Park Heat, Less Fuel Economy Pack, Standard Electric Starter Motor / 12V-80AH, 800A, AGM(Absorbed Glass Mat) / To: HH253474 		- 1 Enquire
10655 LR061981
BATTERY
With Fuel Economy Pack / 12V-70AH, 760A, AGM(Absorbed Glass Mat) / From: FH983510 / To: FH993897 		- 1 Enquire
10655 LR033178
BATTERY - ADDITIONAL
With Fuel Economy Pack / 12V-70AH, 760A, AGM(Absorbed Glass Mat) / From: FH959553 / To: FH983509 		- 1 Enquire
10655 LR076697
BATTERY
With Fuel Economy Pack / 12V-70AH, 760A, AGM(Absorbed Glass Mat) / From: FH993898 / To: HH175362 		- 1 Enquire
10655 LR094261
BATTERY
(+)"BR", Fuel Fired Heater With Park Heat, Starter - Stop/Start System / AGM(Absorbed Glass Mat) / From: GH000001 		- 1 Enquire
10655 LR086427
BATTERY
(+)"IND" / From: GH000001 		- 1 Enquire
10655 LR094611
BATTERY
With Fuel Economy Pack, With H6 Battery / 12V-70AH, 760A, AGM(Absorbed Glass Mat) / From: HH175363 / To: HH265831 		- 1 Enquire
10655 LR095917
BATTERY
(+)"IND", Less Fuel Economy Pack, Starter - Stop/Start System / 12V-80AH, 800A, AGM(Absorbed Glass Mat), H7 / To: HH261603 		- 1 Enquire
10655 LR106759
BATTERY
Less Fuel Economy Pack, Starter - Stop/Start System / 12V-80AH / From: HH253475 / To: KH341587 		- 1 Enquire
10655 LR108509
WET NON SPILLABLE BATTERY
(+)"IND" / 12V-80AH, 800A, AGM(Absorbed Glass Mat), H7 / From: HH261604 		- 1 Enquire
10655 LR104508
Battery
Standard Electric Starter Motor, With Fuel Fired Heater / H7 / From: CH000001 / To: CH999999 		- 1 Enquire
10655 LR104510
Battery
12V, 850 Amp, AGM(Absorbed Glass Mat), H7, USA Locally Sourced From Interstate Only - Interstate Part Number MT5-94R/H7 / From: EH000001 		- 1 Enquire
10655 LR094611
BATTERY
With Fuel Economy Pack / 12V-70AH, 760A, AGM(Absorbed Glass Mat) / From: HH265832 		- 1 Enquire
10655 LR154615
BATTERY
Less Fuel Economy Pack, Starter - Stop/Start System / 12V-80AH, H7 / From: KH341588 		- 1 Enquire
10723 LR023753
TRAY - BATTERY 		- 1 Enquire
10732A LR018356
SUPPORT - BATTERY TRAY 		- 1 Enquire
10732B LR024378
SUPPORT - BATTERY TRAY 		- 1 Enquire
